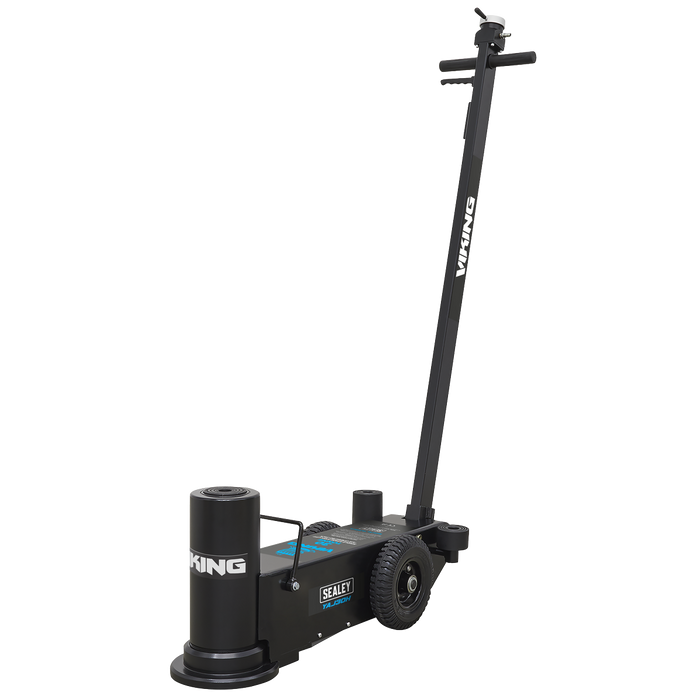

Viking Air Operated High Lift Single Stage Jack 30 Tonne | YAJ30H
ALL PRICES EXCLUDING VAT
Shipping & VAT will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.

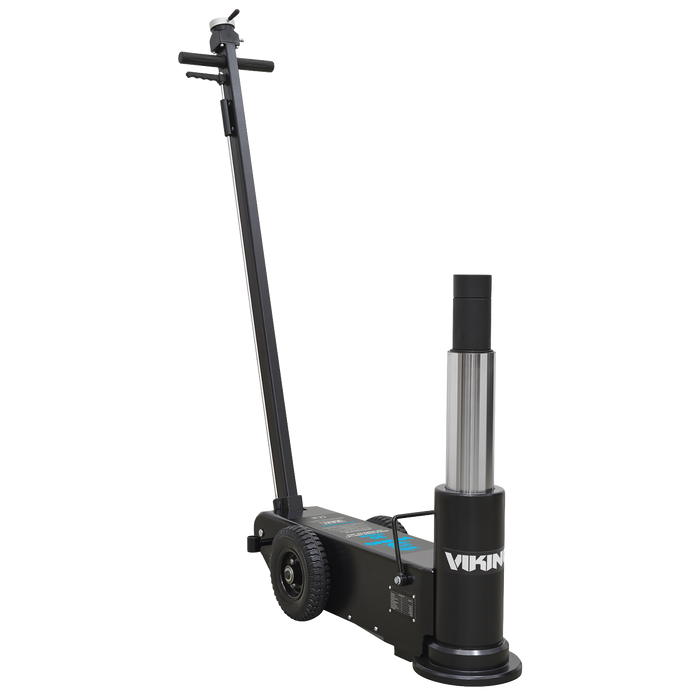

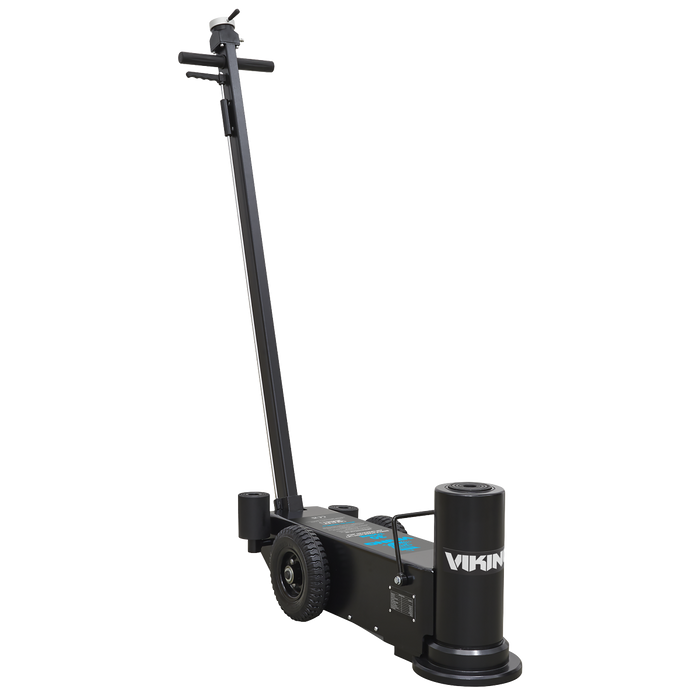

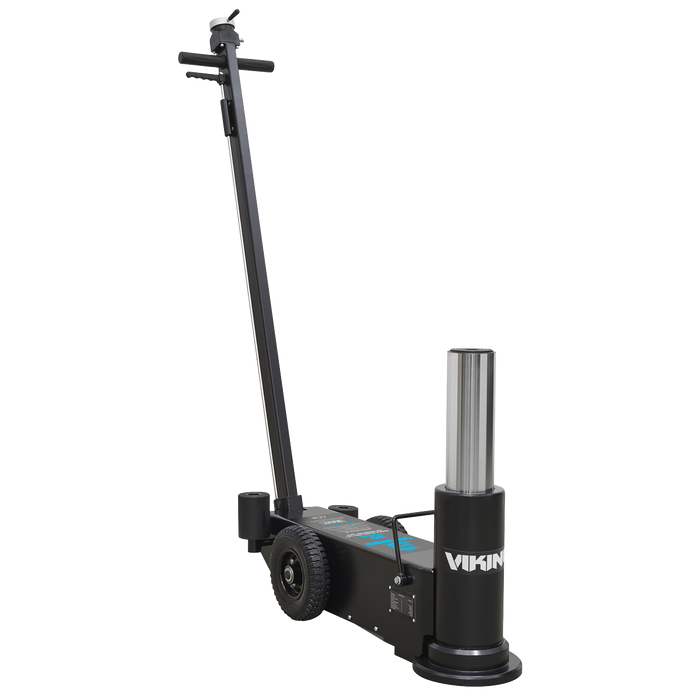

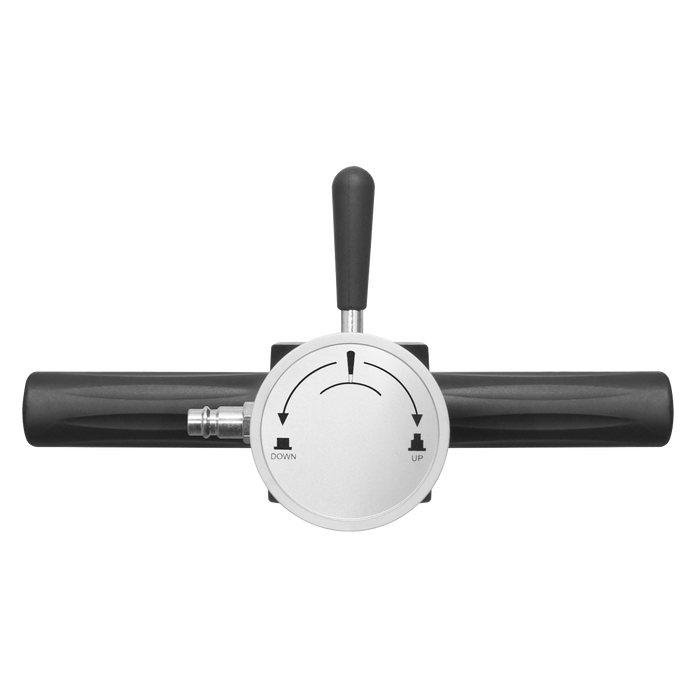

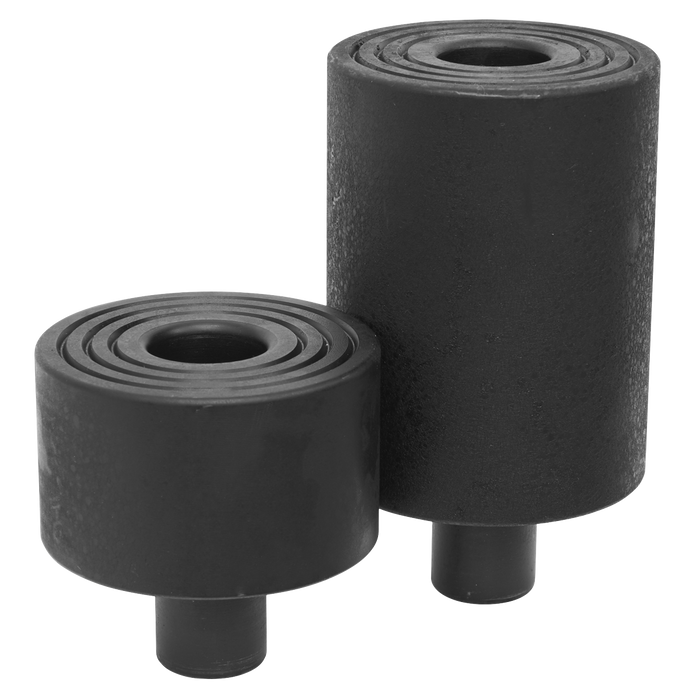

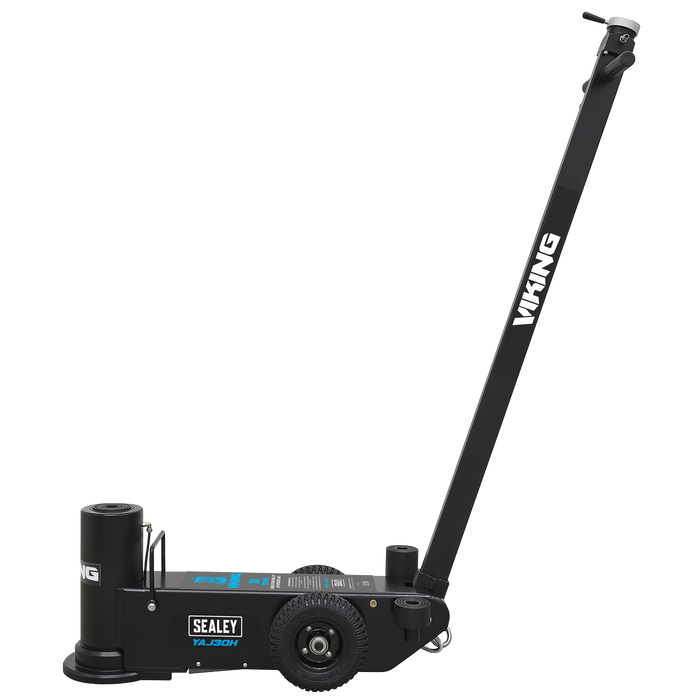

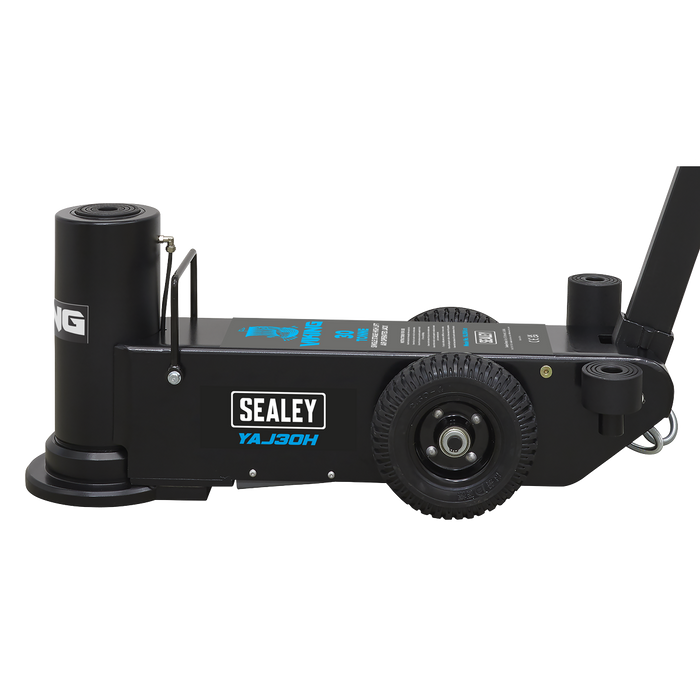

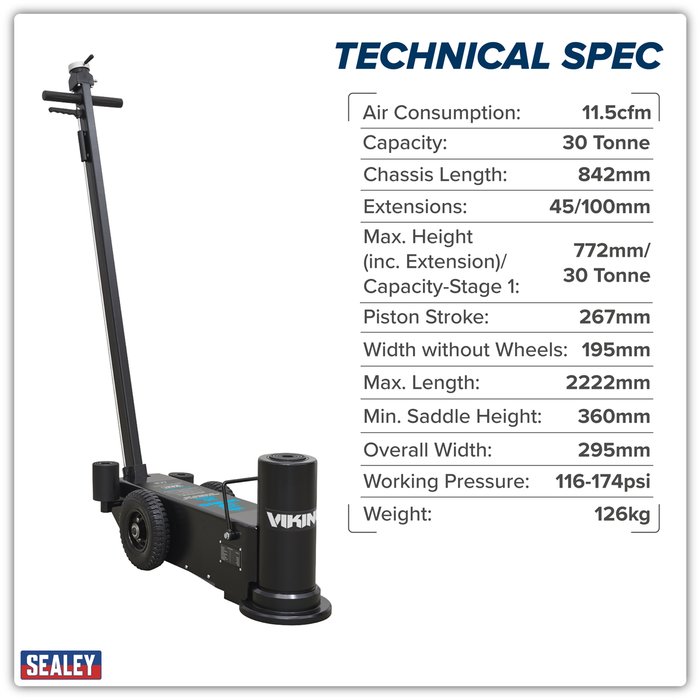

Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. See chart for detailed specification.
| Model No | YAJ30H |
| Air Consumption: | 11.5cfm |
| Brand: | Viking |
| Capacity: | 30 Tonne |
| Chassis Length: | 842mm |
| Extensions: | 45/100mm |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): | 772/30 |
| Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): | n/a |
| Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): | n/a |
| Maximum Length: | 2222mm |
| Minimum Saddle Height: | 360mm |
| Nett Weight: | 126kg |
| Overall Width: | 295mm |
| Piston Stroke: | 267mm |
| Screw Extension: | n/a |
| Width without Wheels: | 195mm |
| Working Pressure: | 116-174psi |
