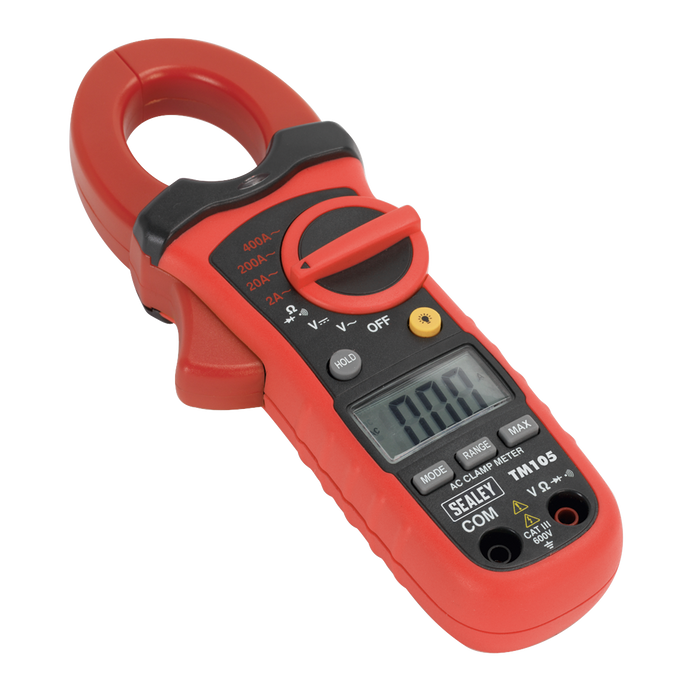

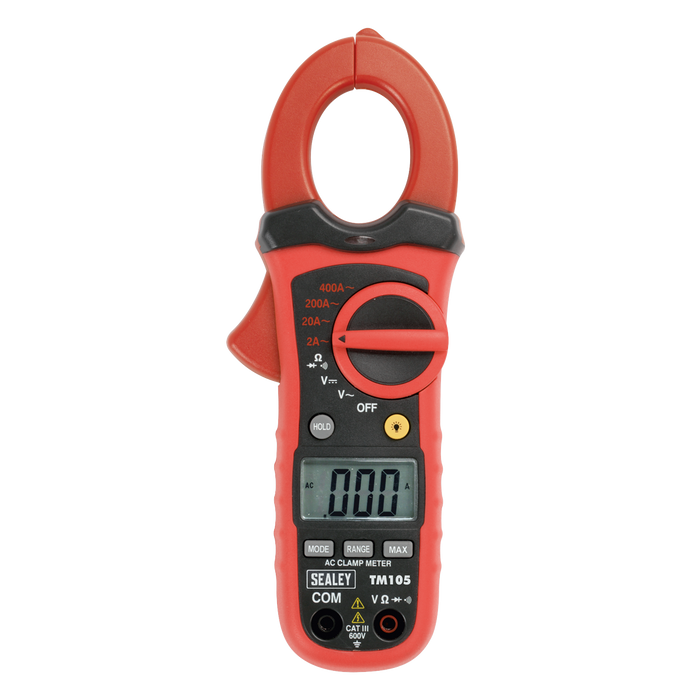

6-Function Professional Auto-Ranging Digital Clamp Meter NCVD | TM105
ALL PRICES EXCLUDING VAT
Shipping & VAT (Taxes) will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.
High precision clamp meter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features non-contact AC voltage detection function while controls are laid out to enable use with one-hand. Includes data and maximum hold functions. Double moulded housing with soft grip case, large display for ease of use and 30mm clamp. Supplied in zipped pouch with carry strap. Measures: • AC and DC Voltage • AC Current • Resistance • Diode Test • Audible Continuity • Non-Contact Voltage Detection (NCVD)
| Model No | TM105 |
| Brand: | Sealey |
| Nett Weight: | 345g |
| AC Voltage (Accuracy): | 200mV (±1.5%), 2V, 20V, 200V (±1.8%), 600V (±2.5%) |
| DC Voltage (Accuracy): | 0-200mV (±0.8%), 2V, 20V, 200V (±1.5%), 600V (±2%) |
| AC Current (Accuracy): | 2A, 20A, 200A (±2.5%), 400A (±3%) |
| DC Current (Accuracy): | No |
| Resistance (Accuracy): | 0-200Ω (±1%), 2kΩ, 20kΩ, 200kΩ (±1.5%), 2MΩ (±2.5%), 20MΩ (±3.5%) |
| Capacitance (Accuracy): | No |
| Temperature (Accuracy): | No |
| Frequency (Accuracy): | No |
| Duty Cycle: | No |
| Continuity Audible: | Yes |
| Diode Test: | Yes |
| Transistor Test: | No |
| Hi-Impact Rubber Case: | No |
| Digits x Height: | 3.5 x 14mm |
| Low Battery Indicator: | Yes |
| Battery (Supplied): | 1 x 9V |
| Jaw Opening: | 32mm |
| Information: | Data-Hold, Auto-Power-Off, Non-Contact Voltage Detection |
| Size (L x W x D): | 197 x 70 x 40mm |
| Weight: | 345g |
| Conformity: | EN 61010-1 |
