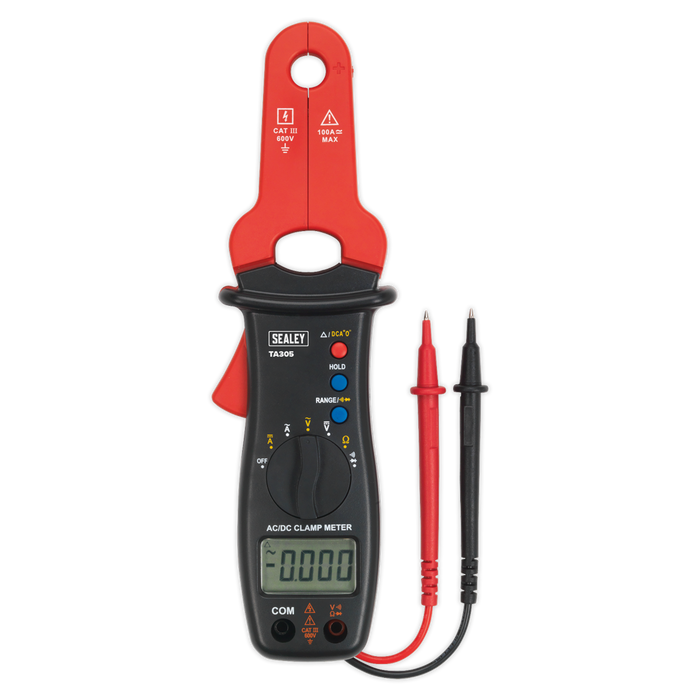

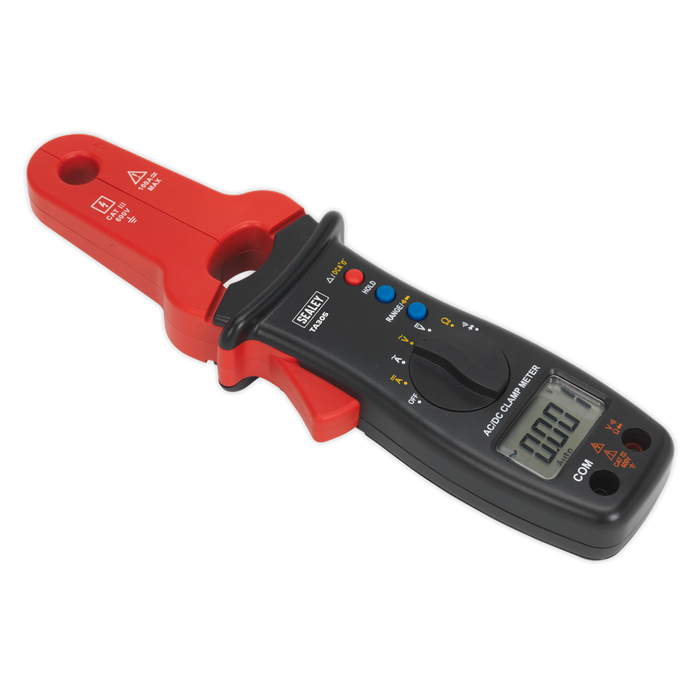

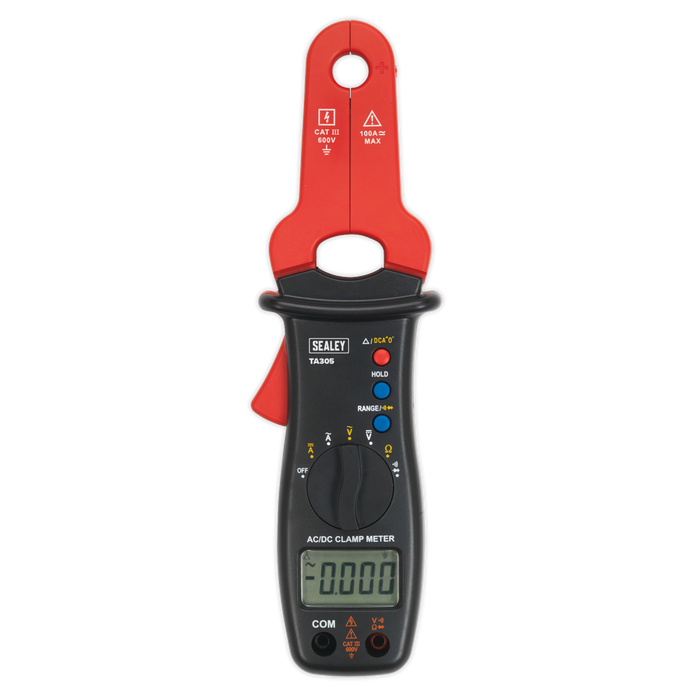

Clamp Meter & Multimeter AC/DC | TA305
ALL PRICES EXCLUDING VAT
Shipping & VAT (Taxes) will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.

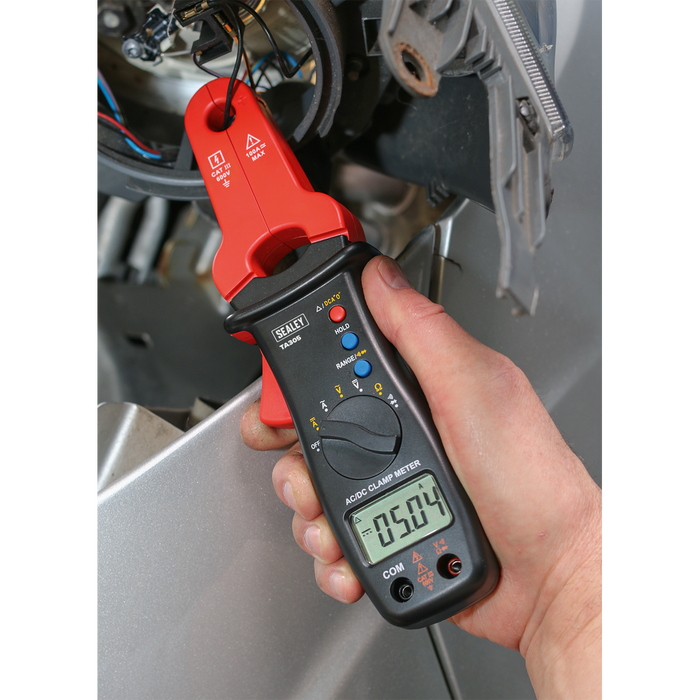

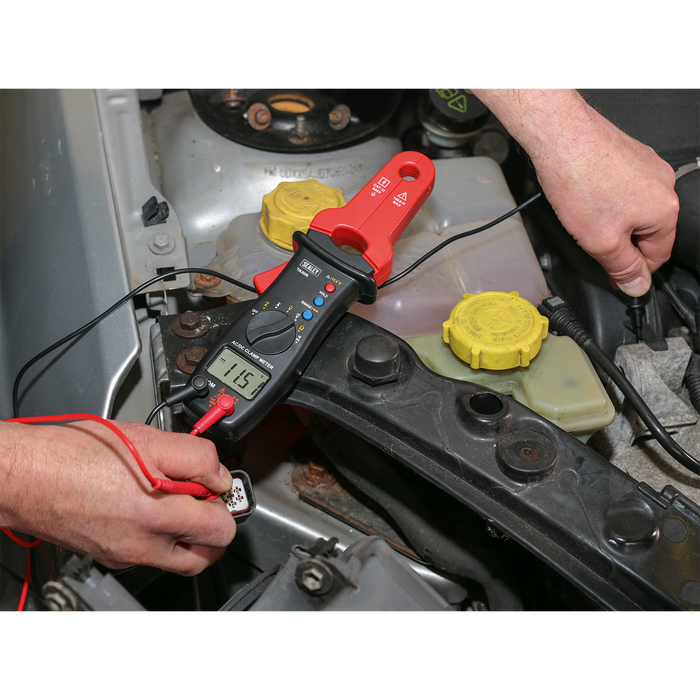

Designed for the automotive electrician and conforms to EN 61010 CAT III 600V. Ideal for measuring current draw from vehicle components in situ. Features 10mm clamp. Supplied in pouch. Measures: • AC/DC Voltage • AC/DC Current • Resistance • Audible Continuity • Diode Test.
| Model No | TA305 |
| Brand: | Sealey |
| Nett Weight: | 185g |
| Jaw Opening Capacity: | 10mm |
| Maximum Measurable Conductor: | Ø10mm |
| Tach (rpm): | No |
| Dwell: | No |
| AC Voltage (Accuracy): | 400mV, 4V (±1.2%), 40V, 400V, 600V (±1.5%) |
| DC Voltage (Accuracy): | 400mV (±0.8%), 4V, 40V, 400V, 600V (±1.0%) |
| AC Current (Accuracy): | 40A, 100A (±2.5%) |
| DC Current (Accuracy): | 40A, 100A (±2.5%) |
| Capacitance: | No |
| Input Impedance: | 10MΩ |
| Frequency Range: | 40Hz-400Hz |
| Duty Cycle: | No |
| Pulse Width: | No |
| Resistance: | 400Ω (±1.2%), 4kΩ, 40kΩ, 400kΩ (±1.0%), 4MΩ (±1.2%), 40MΩ (±1.5%) |
| Continuity: | <50Ω |
| Temperature: | No |
| IR Temperature: | No |
| Insulation Test: | No |
| Diode Test: | Yes |
| Transistor Test: | No |
| Back Light: | No |
| Bar Graph Display: | No |
| Data Hold: | Yes |
| Auto-Ranging: | Yes |
| Inductive Coupler: | No |
| PC Interface: | No |
| Digits Height: | 11mm |
| Auto Power Off: | Yes |
| Low Battery Indicator: | Yes |
| Batteries (Supplied): | 2 x 1.5V |
| Hi-Impact Case: | No |
| Size (L x W x D): | 226 x 71 x 38mm |
| Weight: | 185g |
