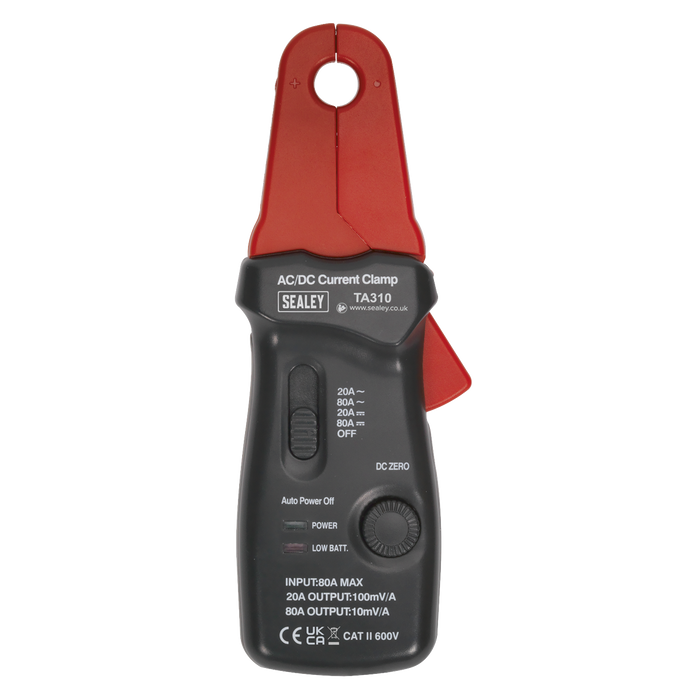

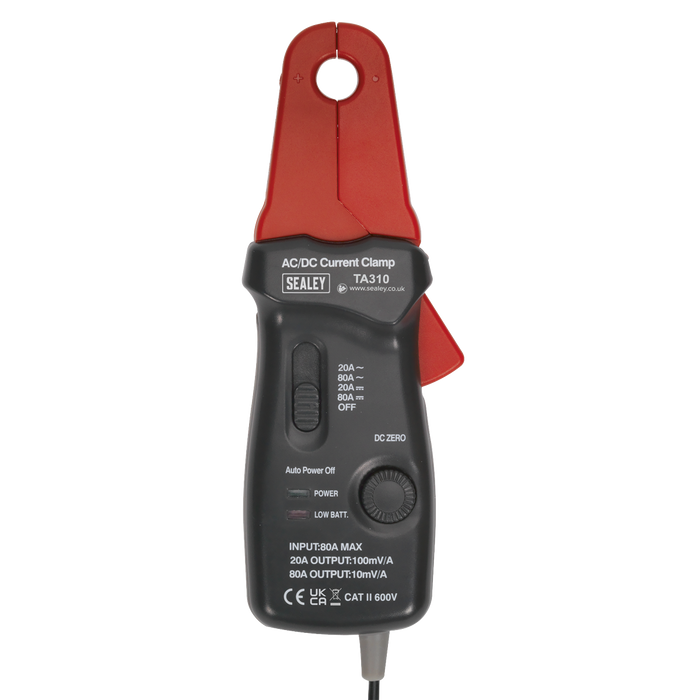

Current Clamp AC/DC 20A/80A 12mm | TA310
ALL PRICES EXCLUDING VAT
Shipping & VAT (Taxes) will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.

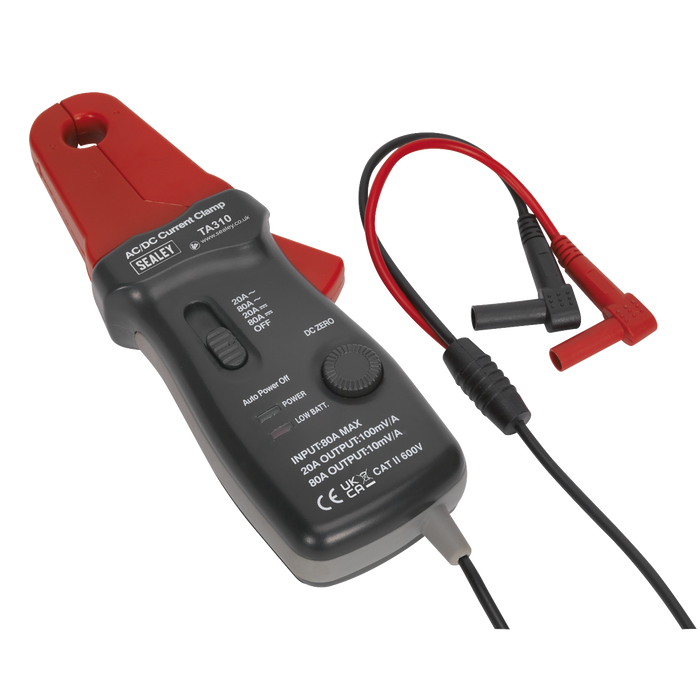

Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
| Model No | TA310 |
| Brand: | Sealey |
| Nett Weight: | 0.31kg |
| TA310 Captured Conductor Size: | Ø8mm maximum |
| Low Battery Indicator: | LED red |
| Operating Temperature: | 0°C to 50°C. |
| Storage Temperature: | -15°C to 50°C. |
| Battery Type: | 9V DC |
| Typical Battery Life: | 80hrs (alkaline) |
| Weight: | 240g |
| TA310 Dimensions (H x W x D): | 190mm x 70mm x 38mm |
| Output Connection: | Banana plugs (red & black) |
| 20A (output: 100mV/A=1mV/10mA): | <2A use DC or rms AC for 200mV range of the multimeter,>2A use DC or rms AC for 2V range of the multimeter. |
| 80A (output: 10mV/A): | DC or rms AC for 200mV range of the multimeter. |
