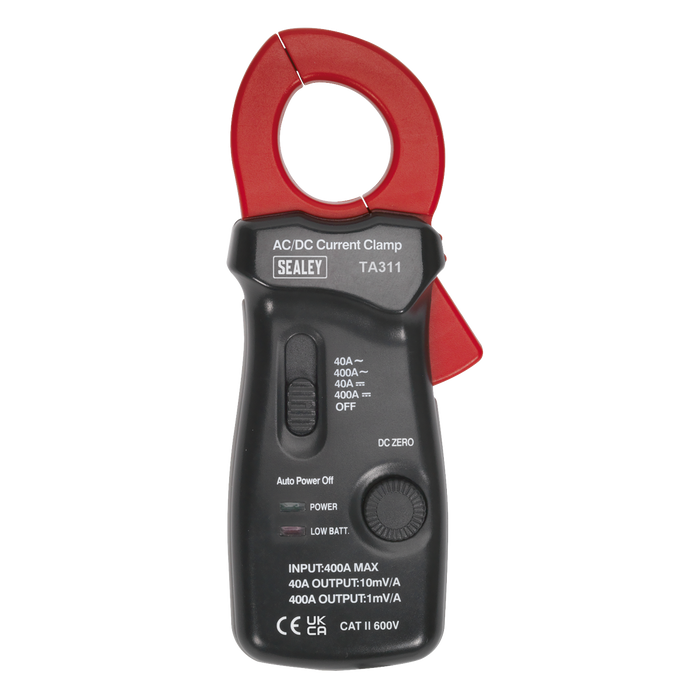

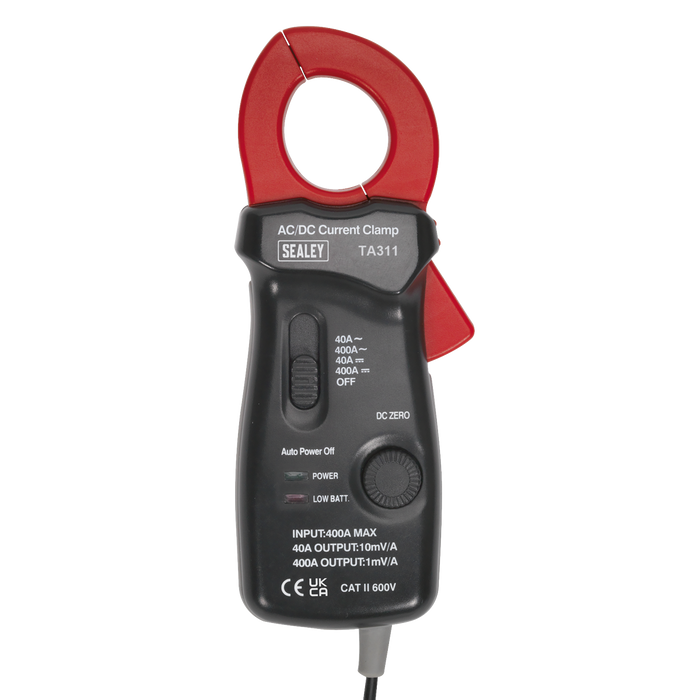

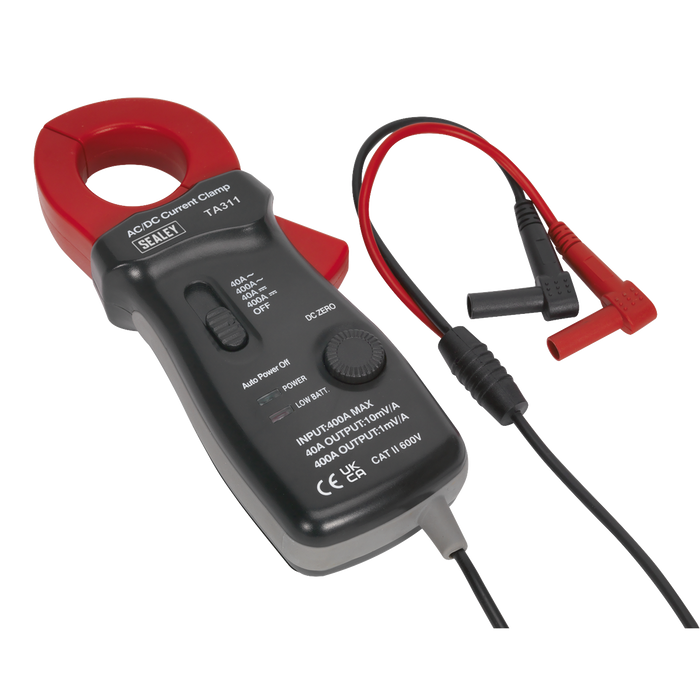

Current Clamp AC/DC 40A/400A 28mm | TA311
ALL PRICES EXCLUDING VAT
Shipping & VAT (Taxes) will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.
Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
| Model No | TA311 |
| Brand: | Sealey |
| Nett Weight: | 0.36kg |
| TA311 Captured Conductor Size: | Ø20mm maximum |
| Low Battery Indicator: | LED red |
| Operating Temperature: | 0°C to 50°C. |
| Storage Temperature: | -15°C to 50°C. |
| Battery Type: | 9V DC |
| Typical Battery Life: | 80hrs (alkaline) |
| Weight: | 240g |
| TA311 Dimensions (H x W x D): | 175mm x 70mm x 38mm |
| Output Connection: | Banana plugs (red & black) |
| 40A (output: 10mV/A): | DC or rms AC for 200mV or 400mV range of the multimeter. |
| 400A (output: 1mV/A): | DC or rms AC for 400mV range of the multimeter. |
