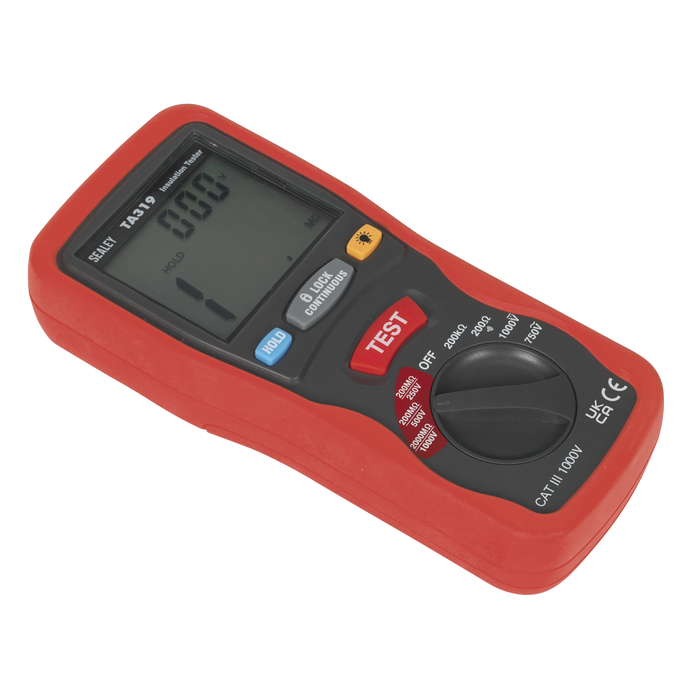

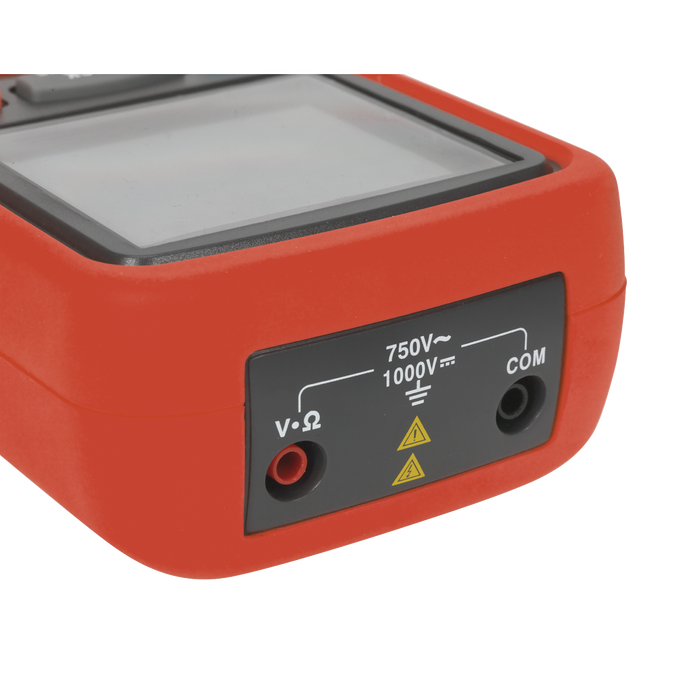

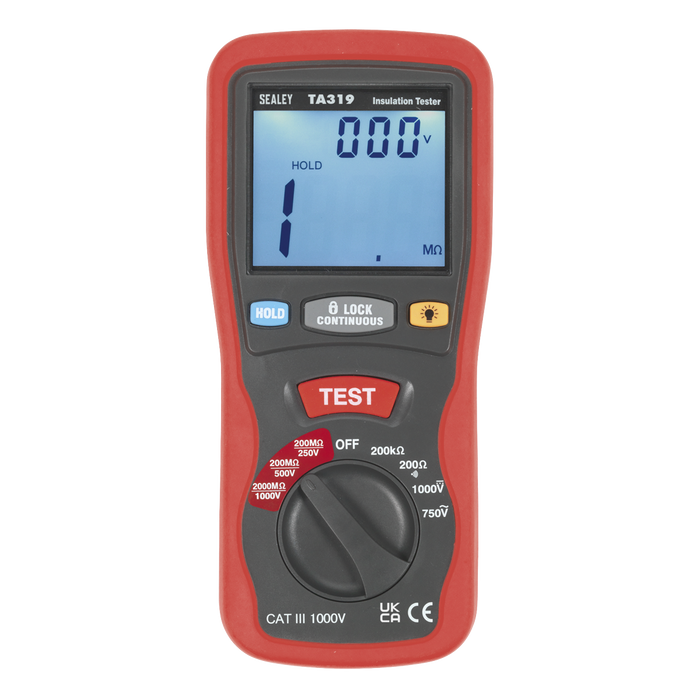

Digital Insulation Tester | TA319

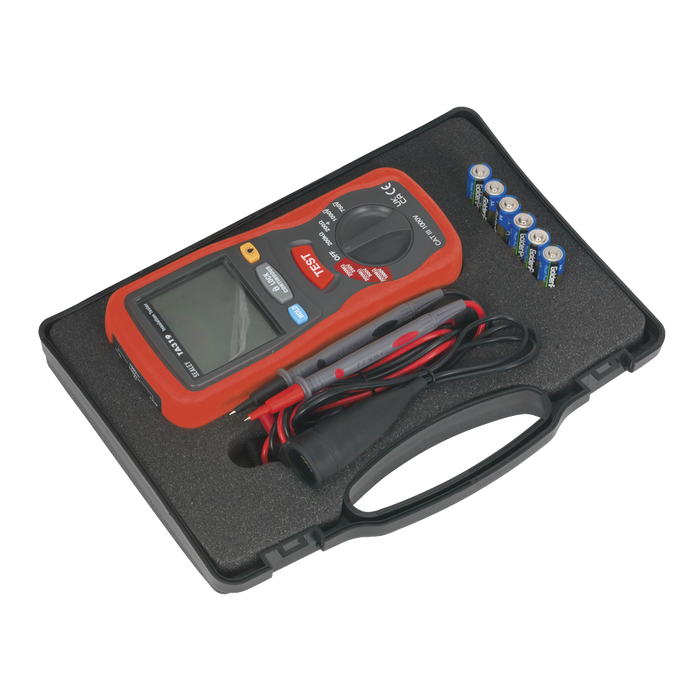

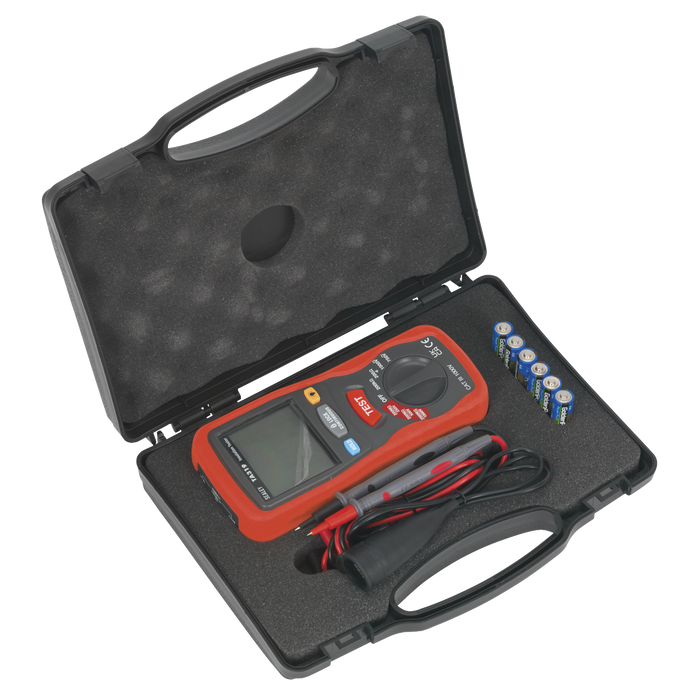

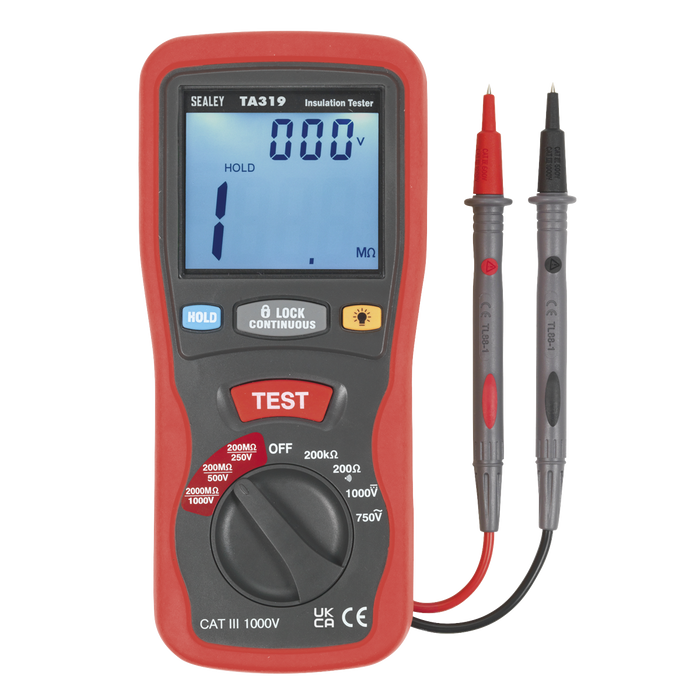

Specially designed for testing insulation on high voltage cables. Suitable for hybrid and electric vehicles. Supplied with test leads, batteries and storage case. Conforms to EN61010 CAT III (1000V).
| Model No | TA319 |
| Brand: | Sealey |
| Nett Weight: | 1.29kg |
| Voltage AC: | Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits) |
| Voltage DC: | Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits) |
| Resistance: | Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits) |
| Insulation Resistance: | Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits) |
| Test Voltage: | 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ |
| Continuity Test: | Active Sound Level; ≤40Ω, Test Current; ≤200mA |
| Operating Temperature: | 0ºC to +40ºC, (<80%R.H) |
| Storage Temperature: | -10ºC to +60ºC, (<70%R.H) |
| Batteries: | 6 x 1.5V (supplied) |
