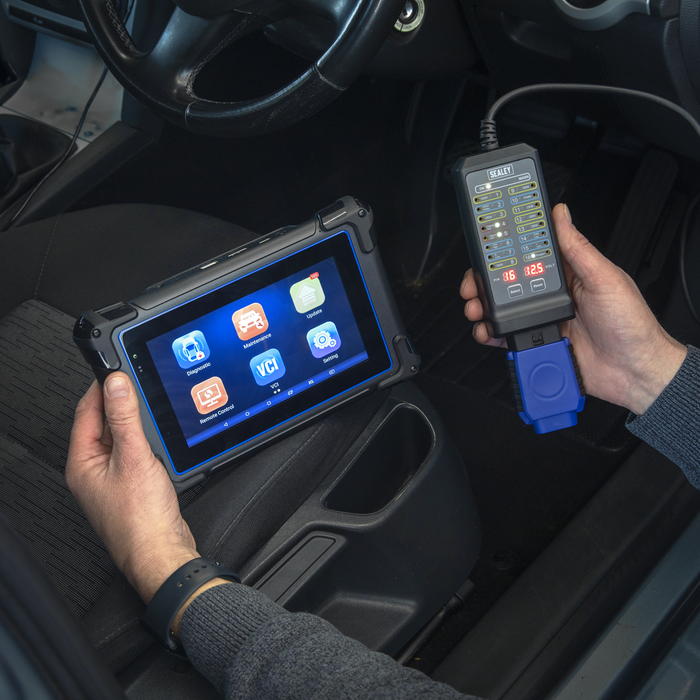

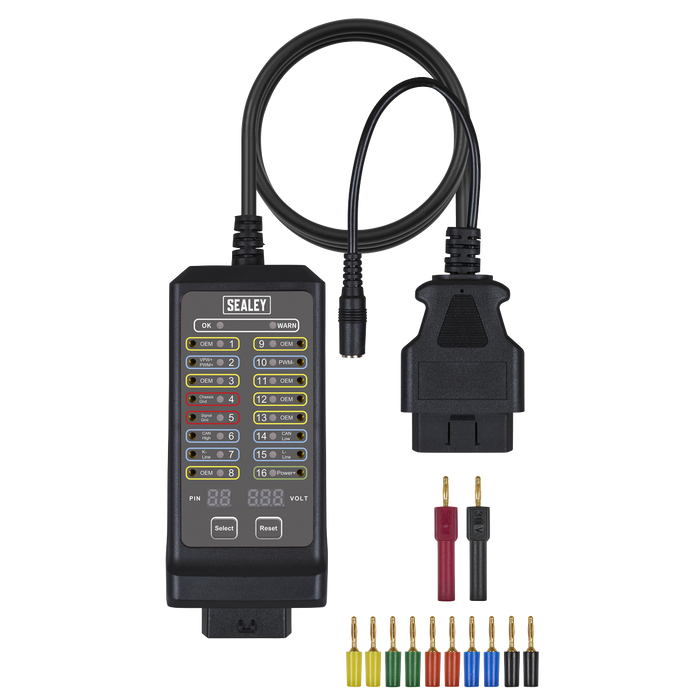

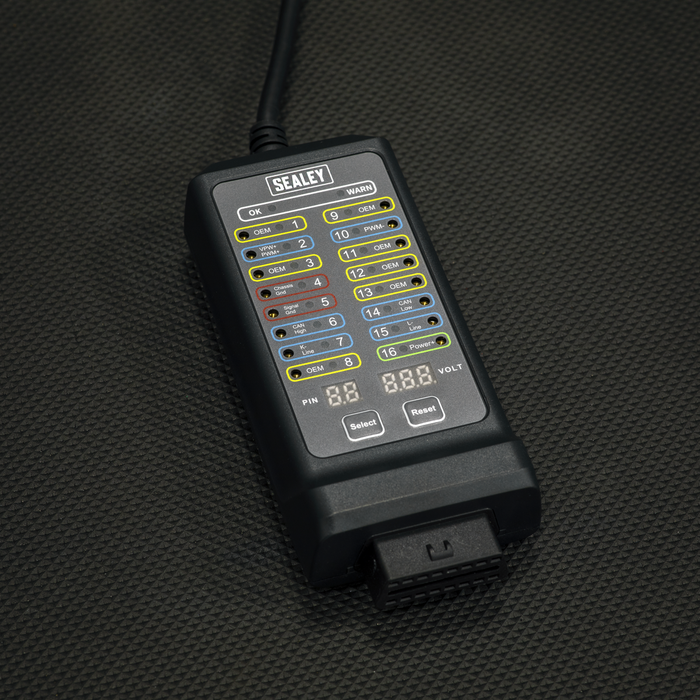

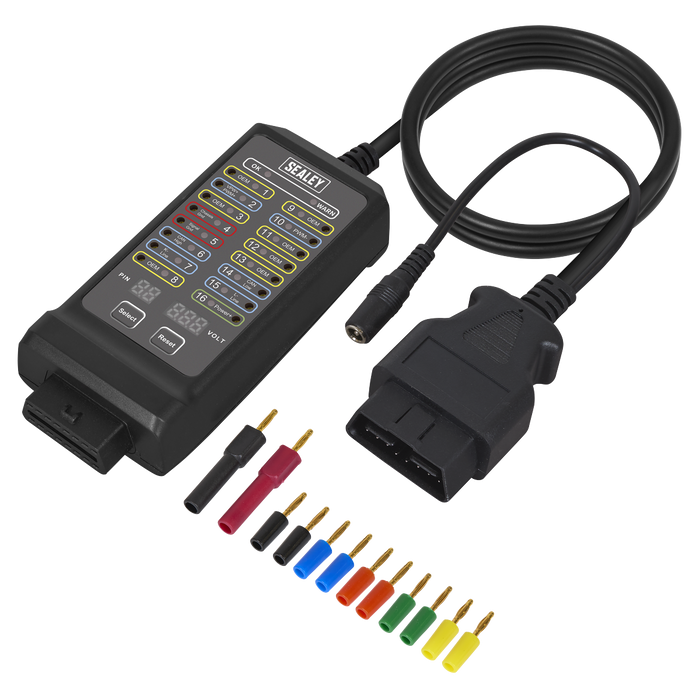

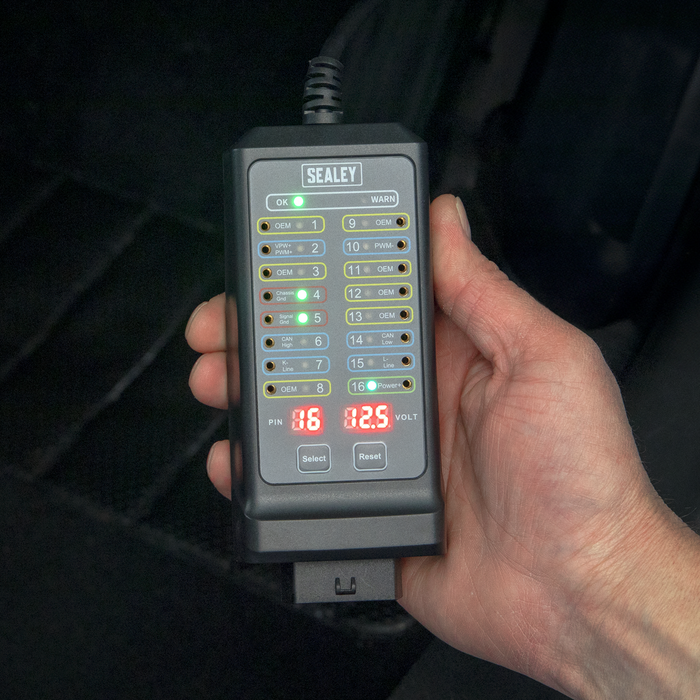

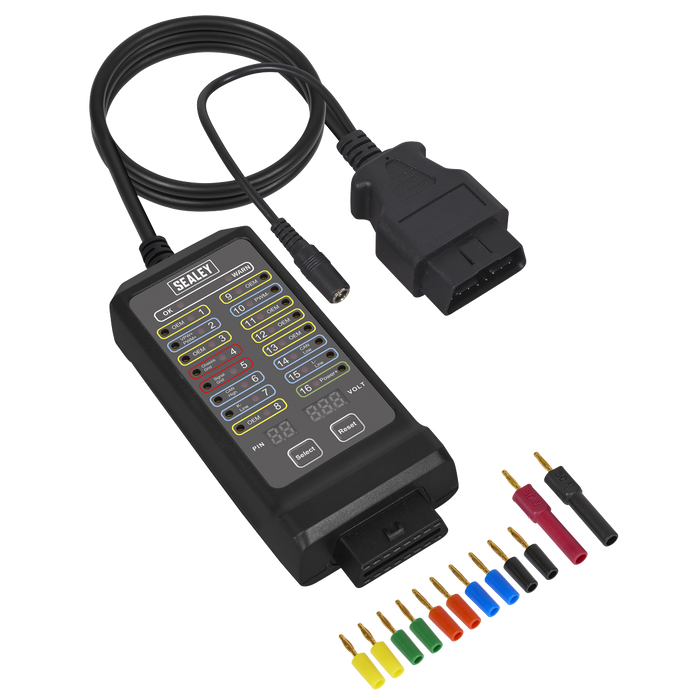

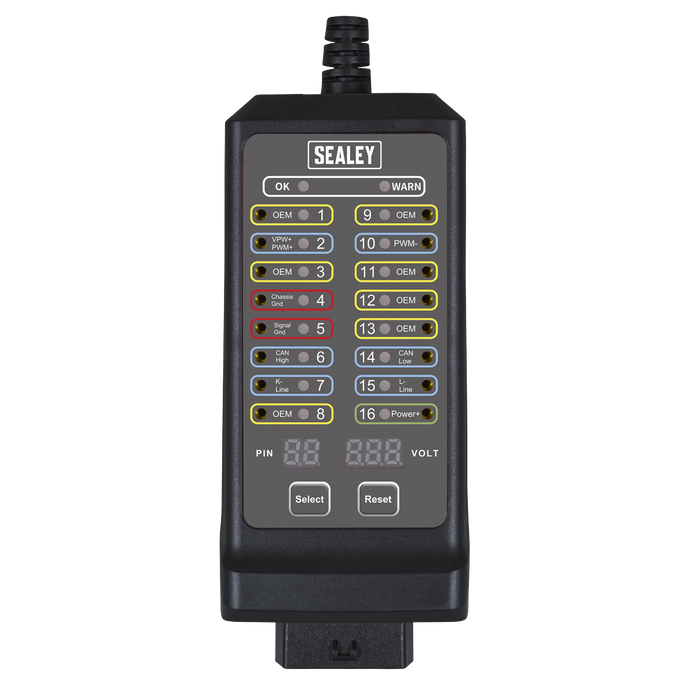

Test the onboard diagnostics port for any faults before connecting other diagnostic devices to the DLC. The breakout box is designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. It can also be connected to multimeters and oscilloscopes. Compatible with 12 and 24V systems. The selectable pin voltage indicator shows the real-time voltage of the selected pin. Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. Overload protection protects any connected diagnostic equipment from damage.
| Model No | VS8813 |
| Brand: | Sealey |
| Nett Weight: | 0.24kg |
| Input Voltage DC: | 9-32V |
| Maximum Load: | 2.0A |
| Resolution: | : 0.1V |
| Overload Protection: | Yes |
| Reverse Polarity Protection: | Yes |
| Operating Temperature: | 0℃-50℃ |
| Cable Length | 700mm |
