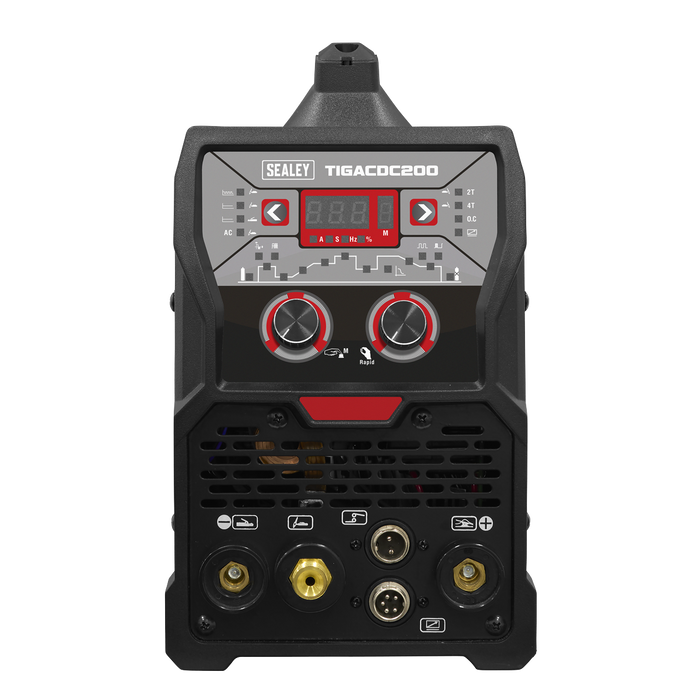

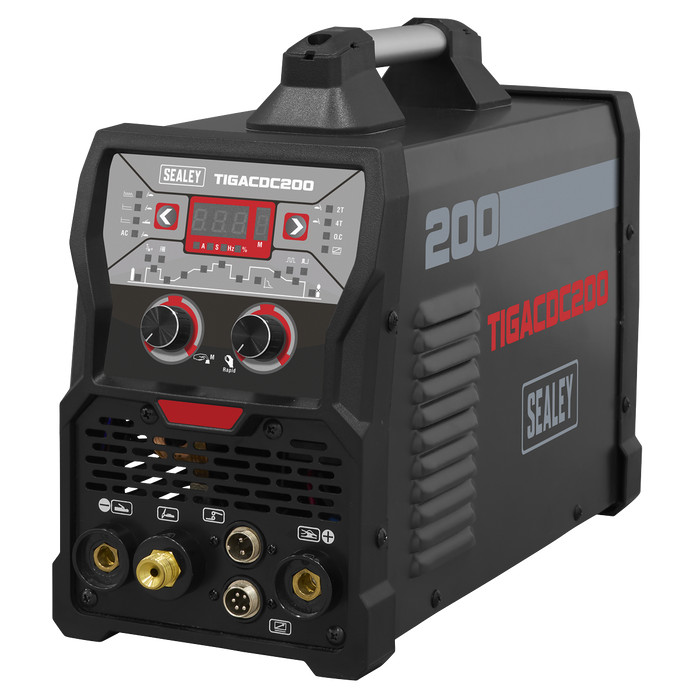

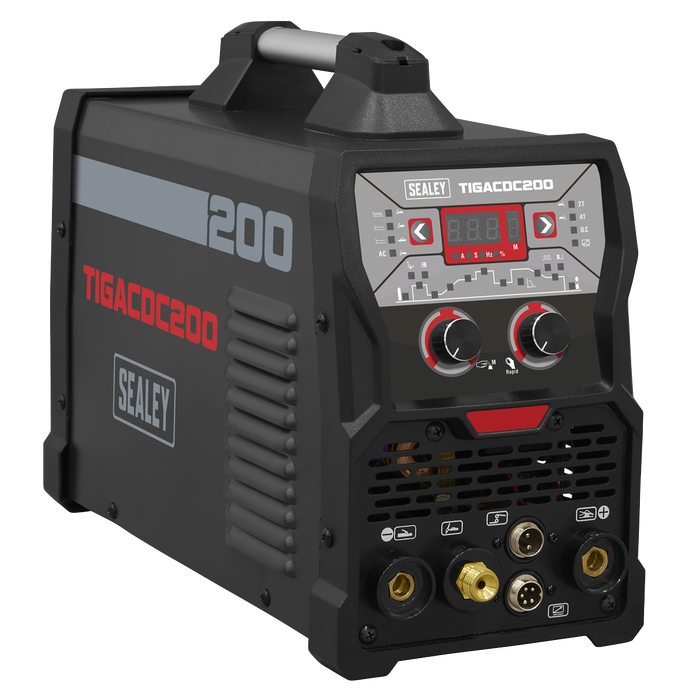

TIG/MMA AC/DC Pulse Inverter Welder 200A/230V | TIGACDC200
ALL PRICES EXCLUDING VAT
Shipping & VAT will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.

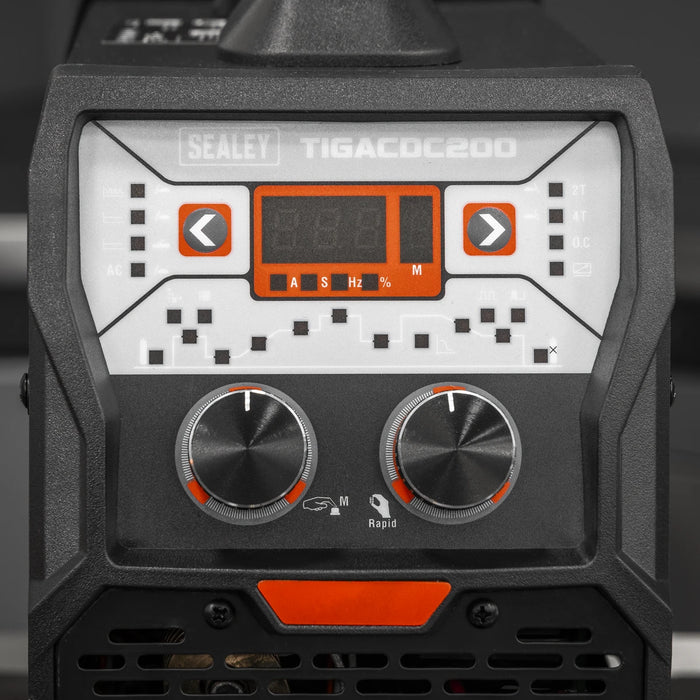

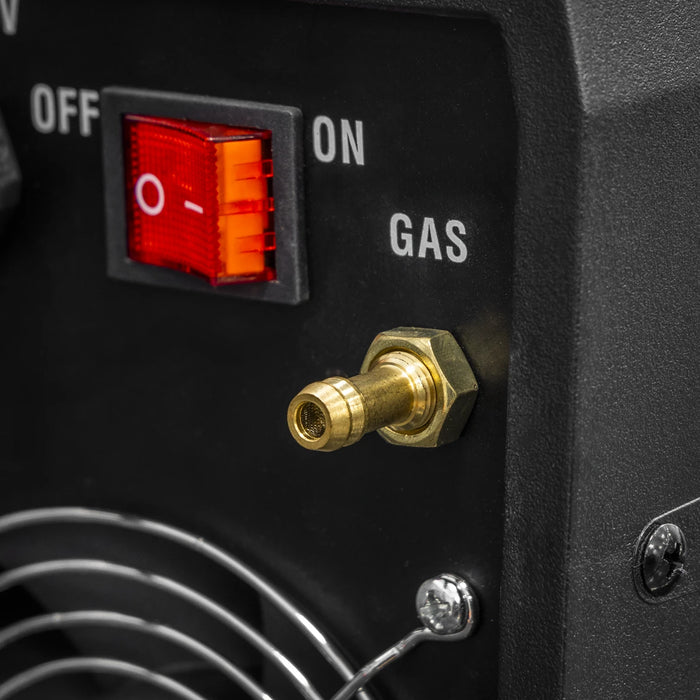

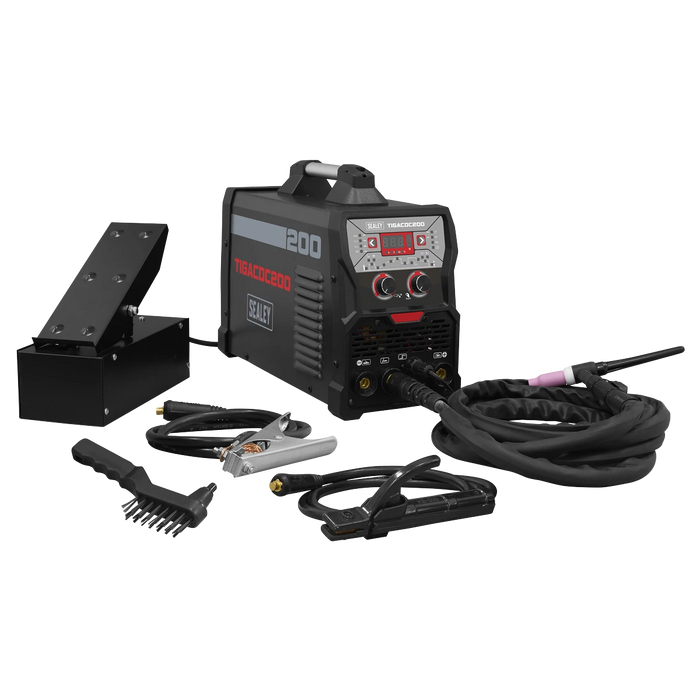

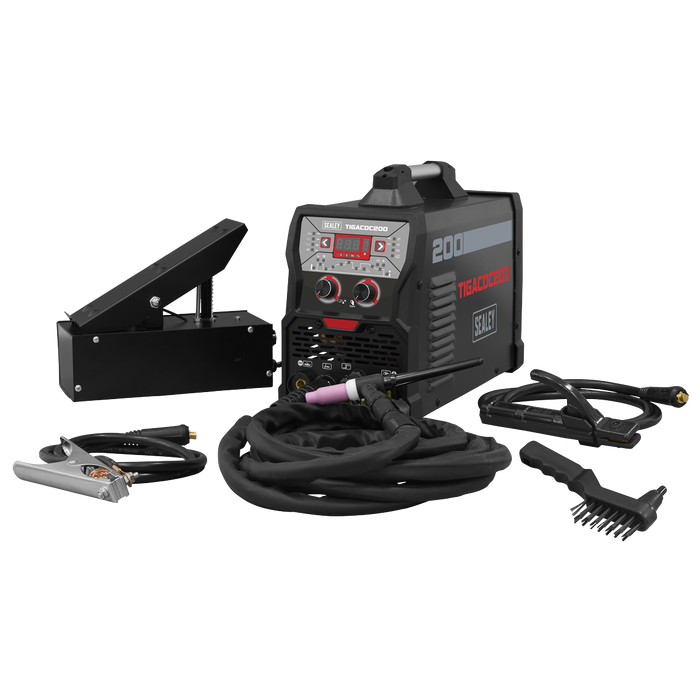

IGBT Inverter technology fitted with fan-cooled AC/DC power supply suitable for both TIG and MMA/ARC welding applications up to 200A. Suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium. 20-Stage parameter adjustment program to suit welder's requirements. Weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician. Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption. Suitable for MMA/ARC welding using the lift start method for better weld quality. Supplied with earth clamp, TIG torch and accessories, electrode holder and foot pedal for when greater control is required.
| Model No | TIGACDC200 |
| Brand: | Sealey |
| Nett Weight: | 8.5kg |
| Power Output: | 10-200A |
| Duty Cycle: | AC - 100% @ 110A, 60% @ 141A, 30% @ 200A DC - 100% @ 93A, 60% @ 120A, 30% @170A |
| Electrode Capacity: | Ø1.6-4mm |
| Absorbed Power: | 5.4KW |
| Supply: | 230V* |
| Insulation Class: | F |
| Protection: | IP21S |
| Note: | *to achieve maxiumum power a 32A supply may be required. |
