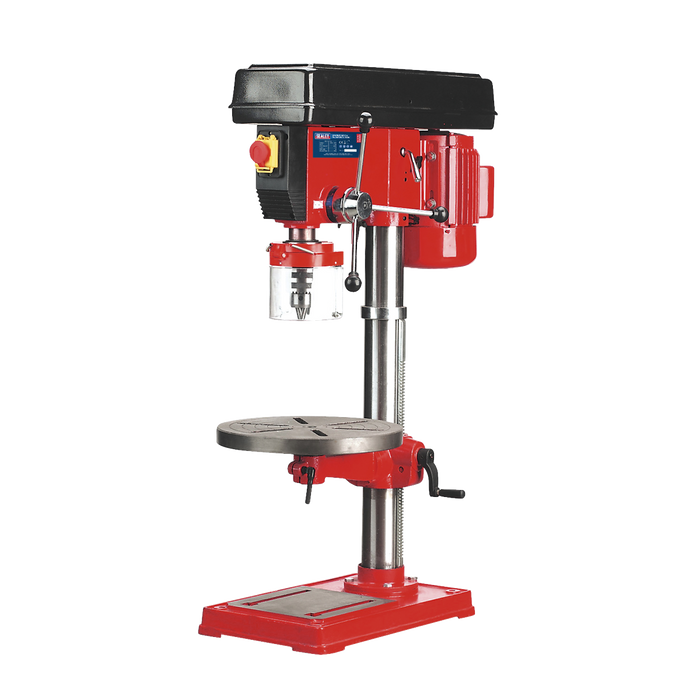

Bench Mounting Pillar Drill 16-Speed 750W/230V | GDM180B
ALL PRICES EXCLUDING VAT
Shipping & VAT will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Fully guarded and suitable for educational use. Fitted with no-voltage switch and locking cover to prevent accidental starting. Access to drive belts is denied during operation by mechanical protection. Optional Mortise attachment is available.
| Model No | GDM180B |
| Base Size: | 520 x 320mm |
| Brand: | Sealey |
| Collar Diameter: | 75mm |
| Column Diameter: | 80mm |
| Drilling Capacity (Chuck Size): | 20mm |
| Maximum Distance Spindle to Base: | 685mm |
| Maximum Distance Spindle to Table: | 495mm |
| Motor Power (Start): | 550W(750W) |
| Nett Weight: | 70kg |
| Number of Speeds: | 16 |
| Overall Height: | 1085mm |
| Speed Range: | 120-3000rpm |
| Spindle Centre to Column: | 216mm |
| Spindle Nose Taper: | MT3 |
| Spindle Travel: | 80mm |
| Supply: | 230V |
| Swing: | 432mm |
| Working Base Surface Size: | 240 x 280mm |
| Working Table Surface Size: | Ø355mm |
