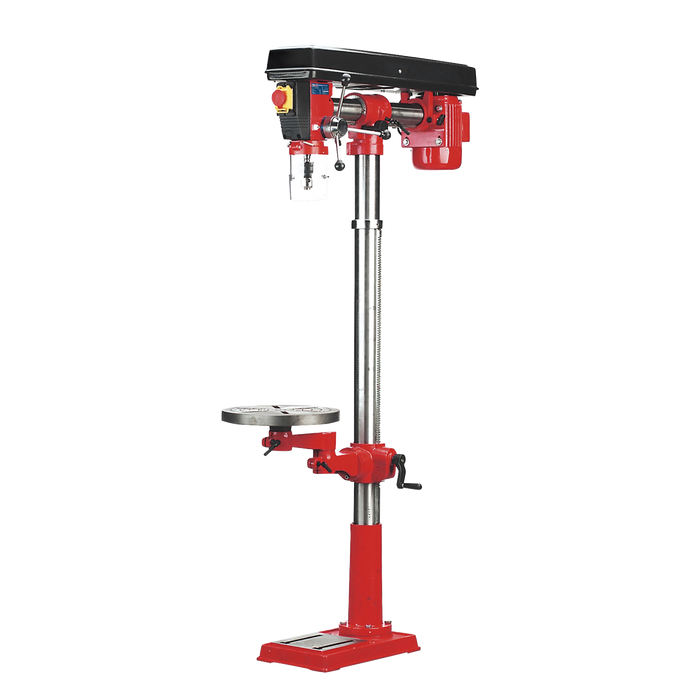

Floor Standing Radial Pillar Drill 5-Speed 550W/230V | GDM1630FR
ALL PRICES EXCLUDING VAT
Shipping & VAT will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.

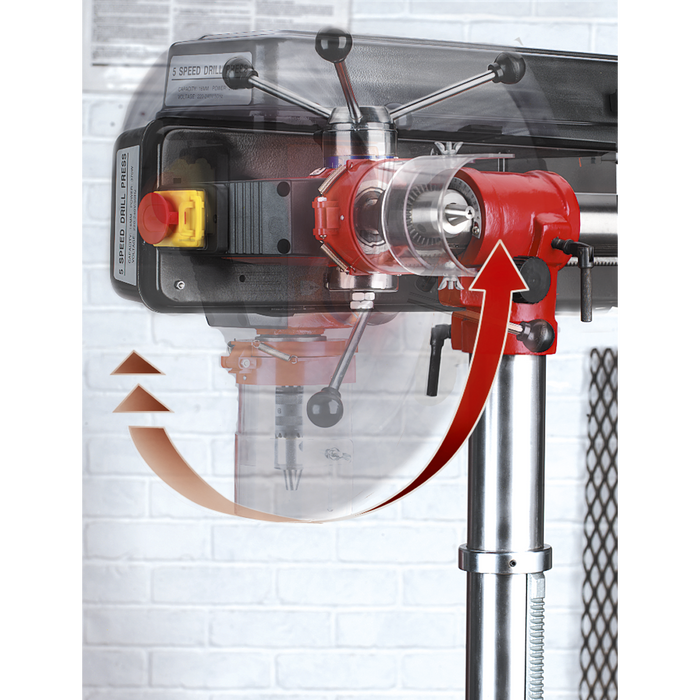

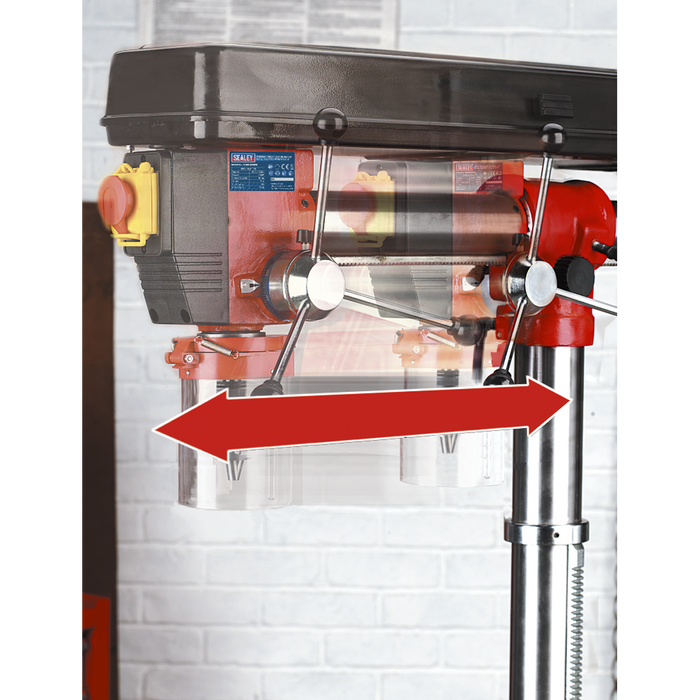

Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Model No. MA10. Also available as floor standing type - Model No. GDM1630FR.
| Model No | GDM1630FR |
| Base Size: | 420 x 250mm |
| Brand: | Sealey |
| Collar Diameter: | Ø60mm |
| Column Diameter: | Ø70mm |
| Drilling Capacity (Chuck Size): | 16mm |
| Maximum Distance Spindle to Base: | 1280mm |
| Maximum Distance Spindle to Table: | 830mm |
| Motor Power: | 550W |
| Nett Weight: | 59kg |
| Number of Speeds: | 5 |
| Optional Accessories: | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height: | 1620mm |
| Radial Arm Travel: | 285mm |
| Speed Range: | 500-2450rpm |
| Spindle Centre to Column: | 420mm |
| Spindle Nose Taper: | MT2 |
| Spindle Travel: | 80mm |
| Supply: | 230V |
| Swing: | 840mm |
| Working Base Surface Size: | 210 x 190mm |
| Working Table Surface Size: | Ø310mm |
