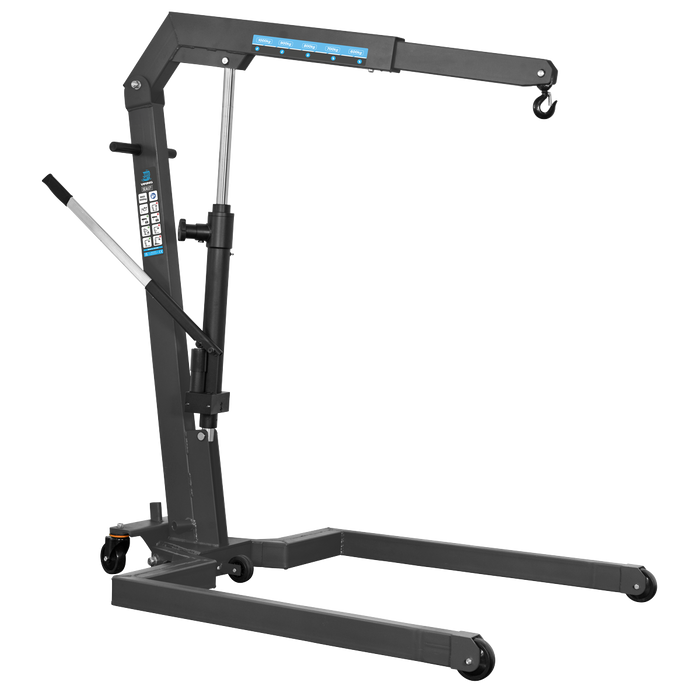

Viking Industrial Engine Crane 1 Tonne | PFC101S
ALL PRICES EXCLUDING VAT
Shipping & VAT will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.

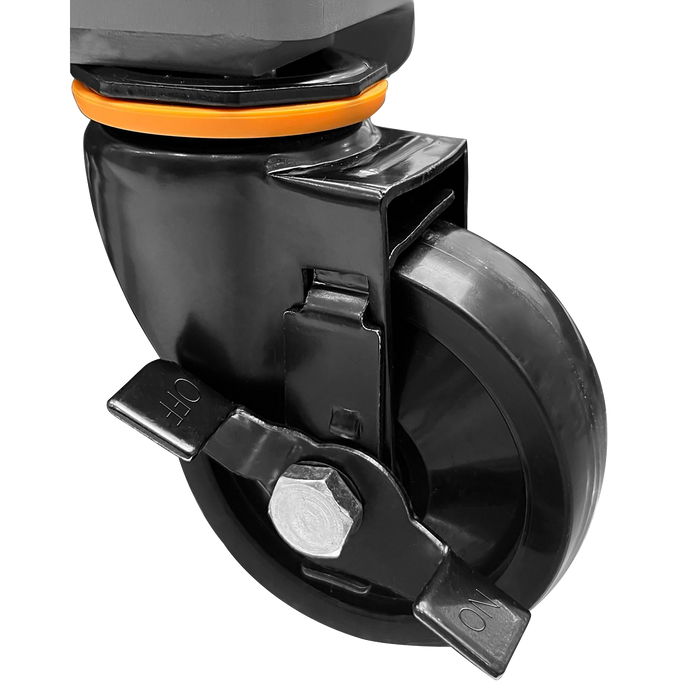

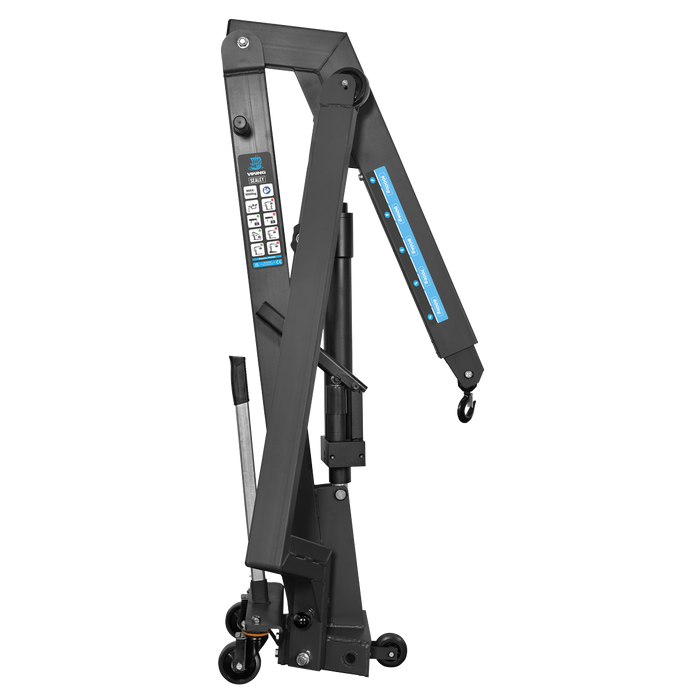

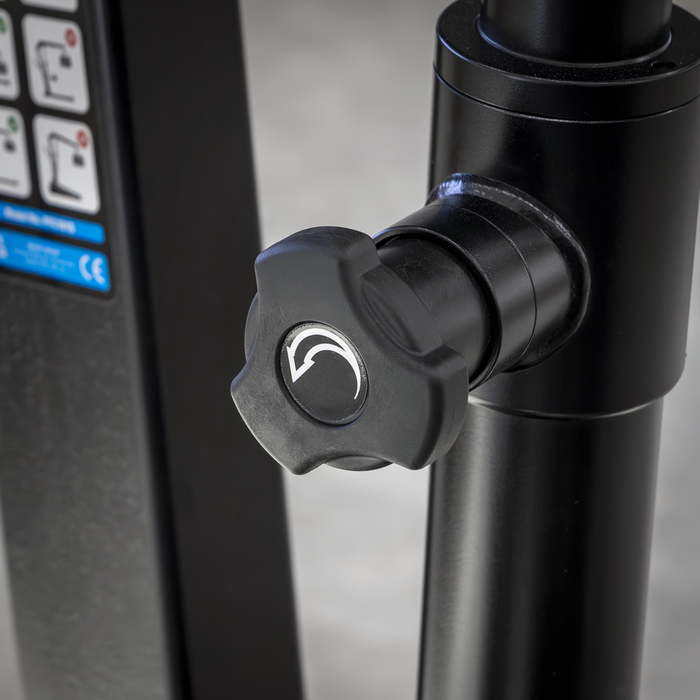

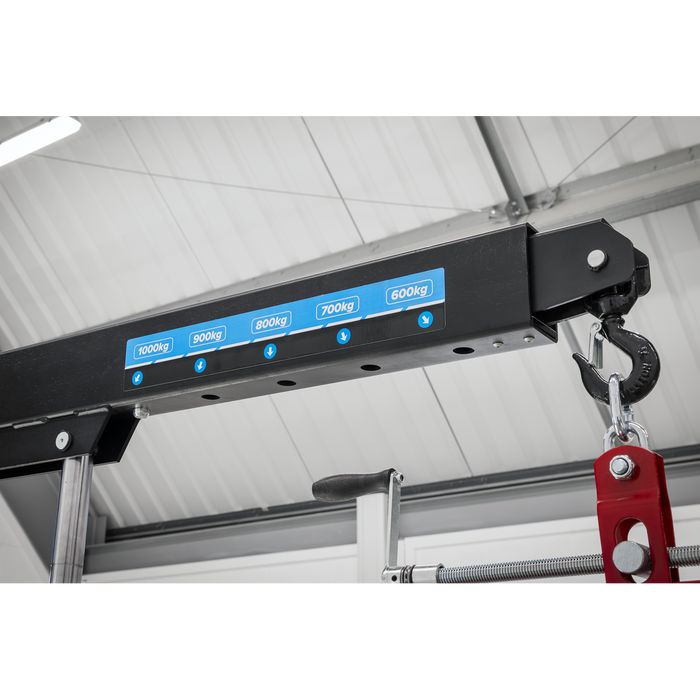

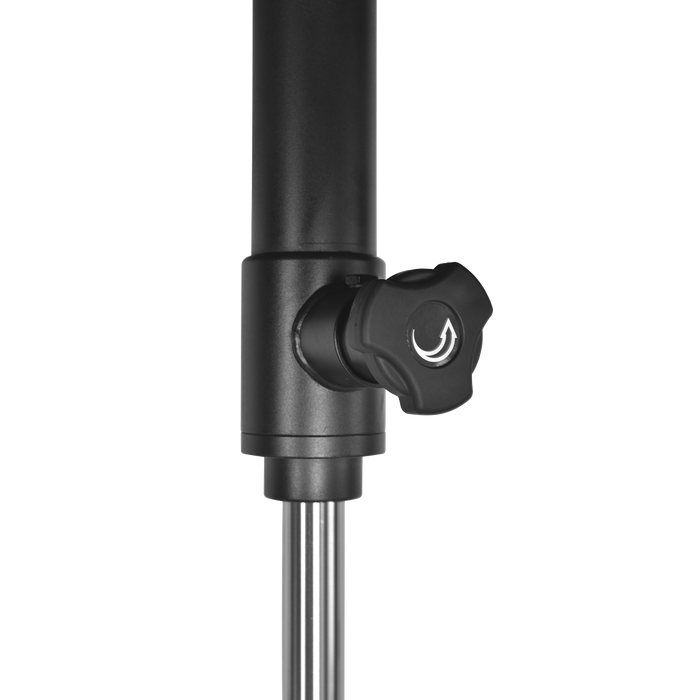

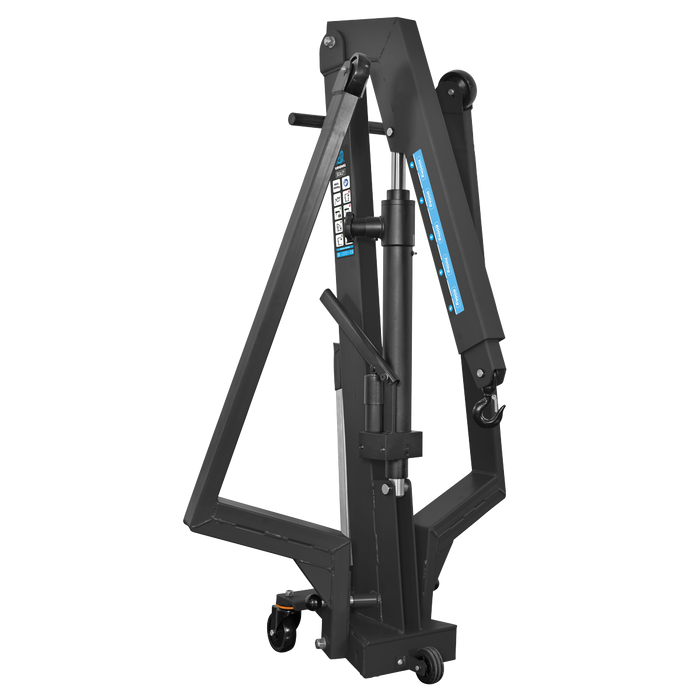

The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc. Hand operated dead man's control to prevent accidental lowering. Manually controlled descent speed. The jib can be extended and locks in five positions between 960-1350mm. The hydraulic unit and handle rotates by 200° aiding use where space is limited. Strong non-marking, nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.
| Model No | PFC101S |
| Brand: | Viking |
| Height Jib Down: | n/a |
| Height Legs Folded: | 1550mm |
| Height of Frame: | 105mm |
| Length Legs Extended: | n/a |
| Length of Jib Position 1: | 960mm |
| Length of Jib Position 2: | 1053mm |
| Length of Jib Position 3: | 1152mm |
| Length of Jib Position 4: | 1250mm |
| Length of Jib Position 5: | 1350mm |
| Length: | 1600mm |
| Lifting Capacity in Position 1: | 1000kg |
| Lifting Capacity in Position 2: | 900kg |
| Lifting Capacity in Position 3: | 800kg |
| Lifting Capacity in Position 4: | 700kg |
| Lifting Capacity in Position 5: | 600kg |
| Max. Lift Ht at Jib Position 1: | 2080mm |
| Max. Lift Ht at Jib Position 2: | 2140mm |
| Max. Lift Ht at Jib Position 3: | 2190mm |
| Max. Lift Ht at Jib Position 4: | 2250mm |
| Max. Lift Ht at Jib Position 5: | 2300mm |
| Nett Weight: | 96kg |
| Note: | n/a |
| Rear Width: | 390mm |
| Width Front Frame: | 1129mm |
| Width Inside Front Frame: | 1025mm |
