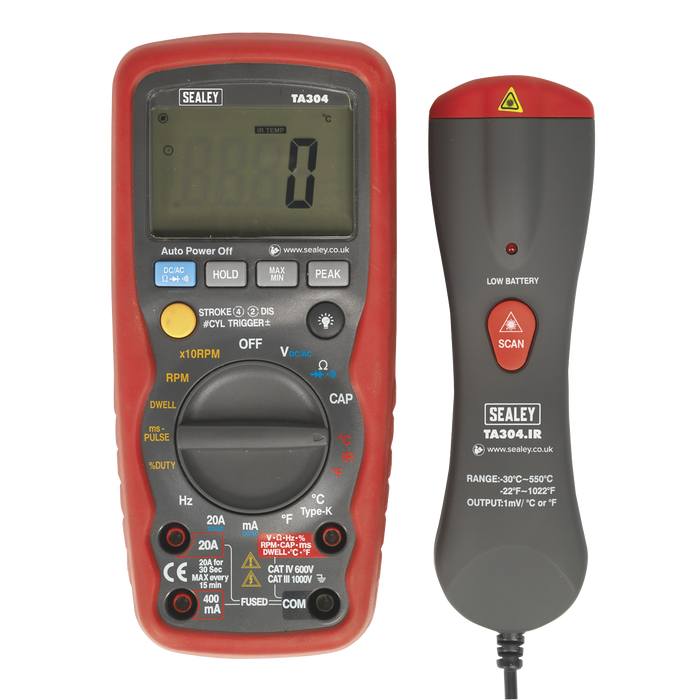

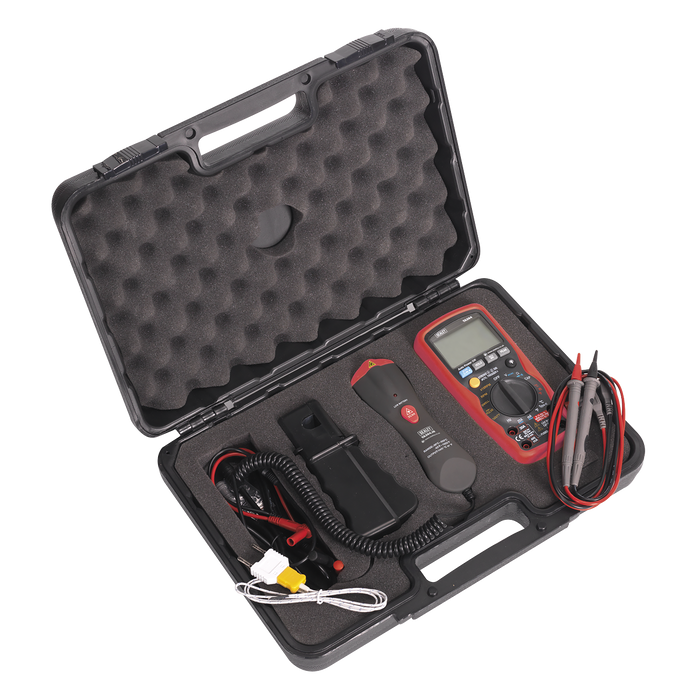

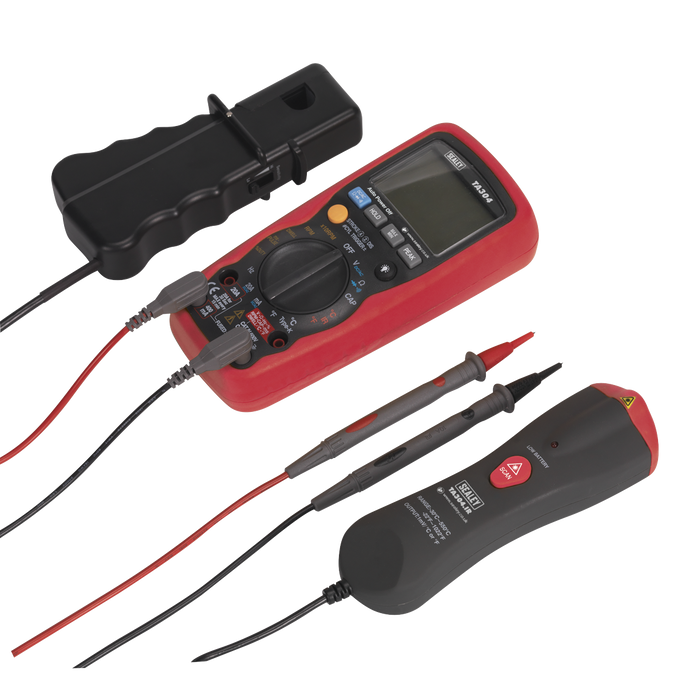

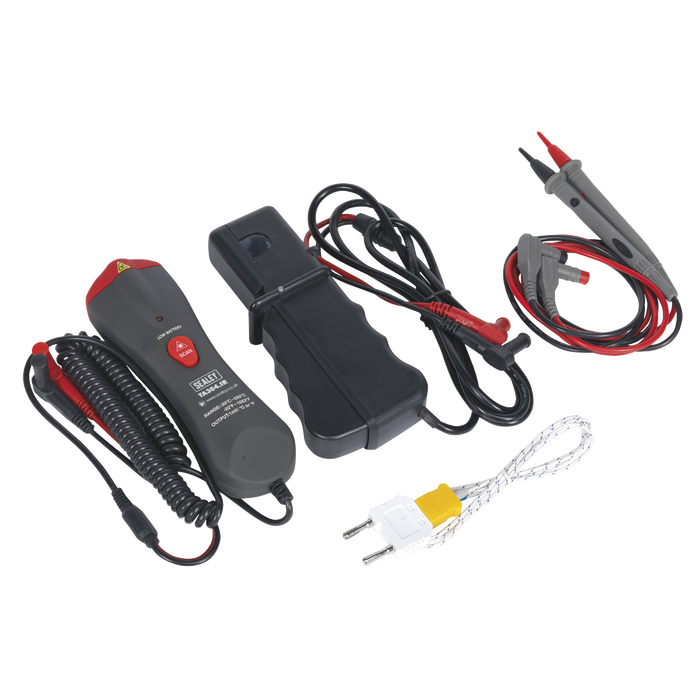

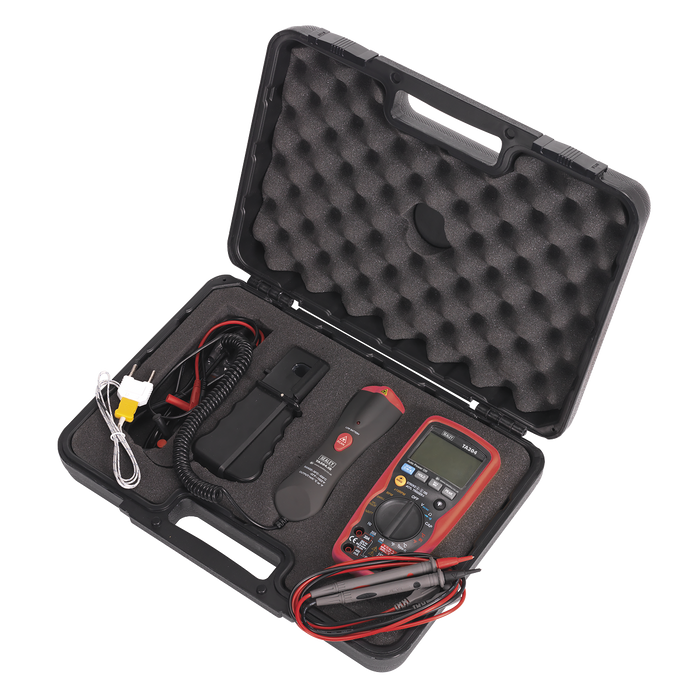

15-Function, auto-ranging automotive diagnostic multimeter with IR thermometer attachment. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand and auto-power shut-off. High-speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems. Features auto-ranging and data-hold functions with overload protection on all ranges. Includes relative functions including min./max. and peak hold. Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.
| Model No | TA304 |
| Brand: | Sealey |
| Nett Weight: | 360g |
| Tach (rpm): | 2-10Cyl, 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm |
| Dwell: | 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
| AC Voltage: | 400mV, 4V, 40V, 400V, 700V (Auto-Ranging) |
| DC Voltage: | 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging) |
| AC Current: | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging) |
| DC Current: | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging) |
| Capacitance: | 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (Auto-Ranging) |
| Frequency: | 0.001Hz-9.99MHz (Auto-Ranging) |
| Duty Cycle: | 0.1-99.9% |
| Pulse Width: | 0.1-10ms |
| Resistance: | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity: | <30Ω Continuity Buzzer 2kHz |
| Temperature: | -20 to +760°C, -4 to +1400°F |
| IR Temperature: | -20 to +280°C, -4 to +536°F |
| Diode Check: | Yes |
| Transistor Test: | No |
| Back Light: | Yes |
| Bar Graph Display: | Yes |
| Display Hold: | Yes |
| Auto-Ranging: | Yes |
| Inductive Coupler: | Yes |
| PC Interface: | No |
| Digits Height: | 20mm |
| Auto Power Off: | Yes |
| Low Battery Indicator: | Yes |
| Batteries (supplied): | 9V (PP3) |
| Hi-Impact Case: | Yes |
| Size (L x W x D): | 182 x 82 x 55mm |
