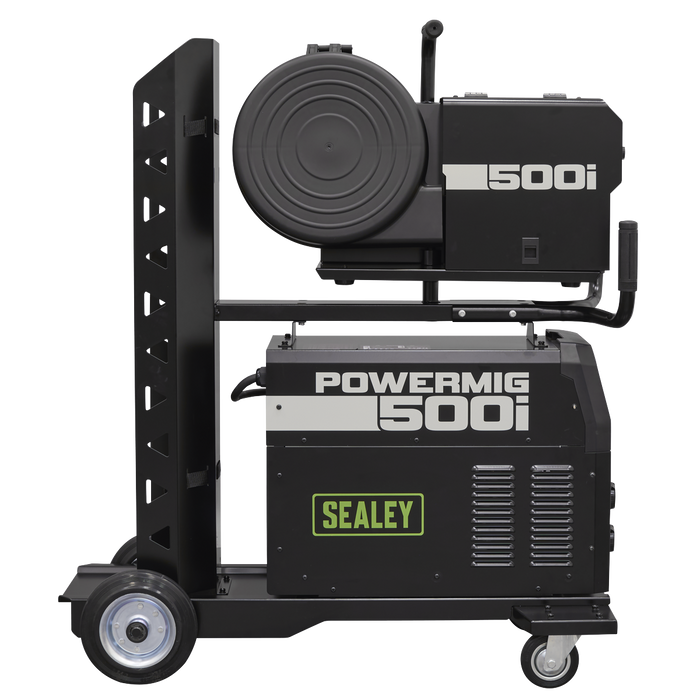

500A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder With Portable Wire Feeder 400V/3ph | POWERMIG500i
ALL PRICES EXCLUDING VAT
Shipping & VAT will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.

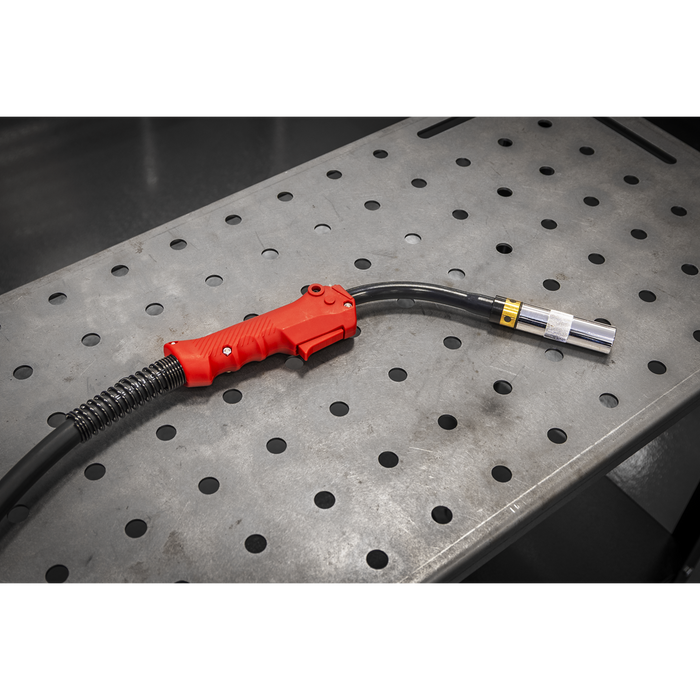

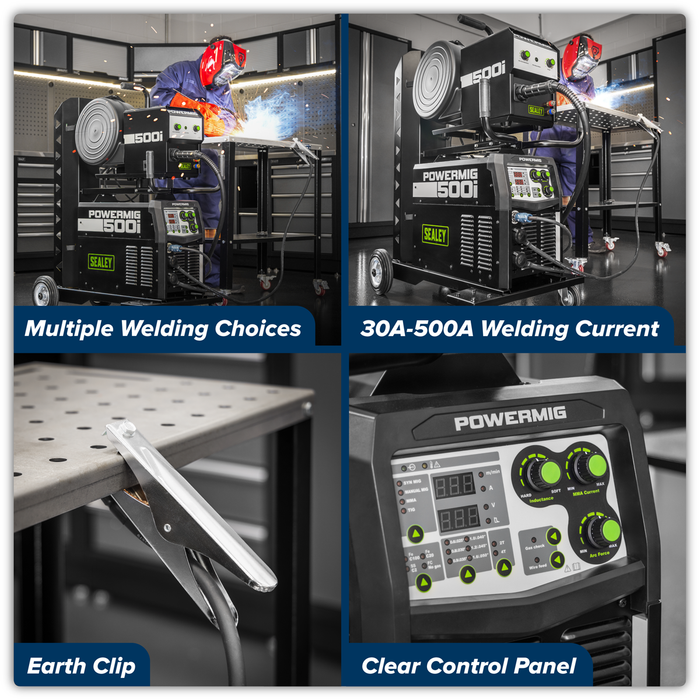

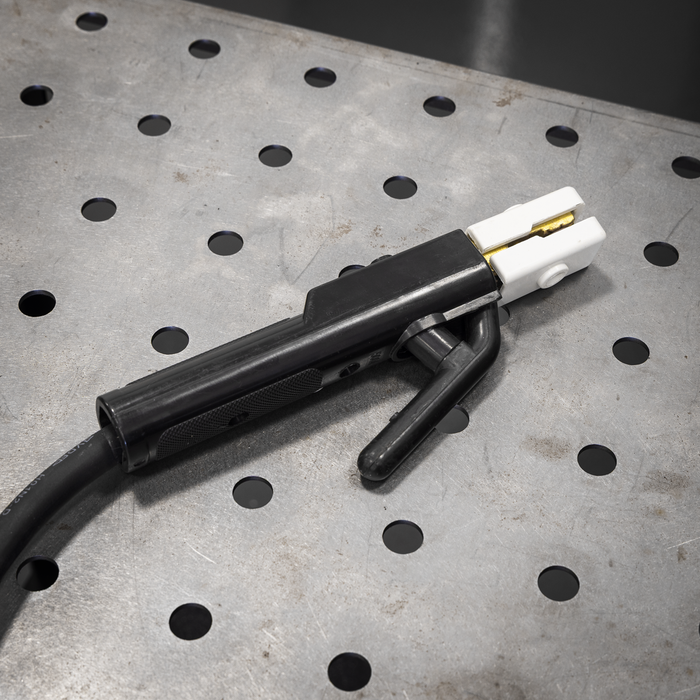

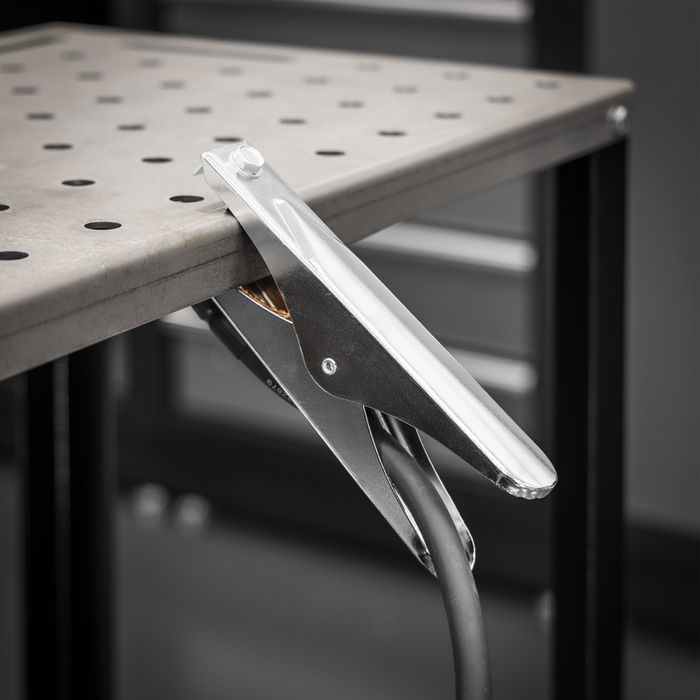

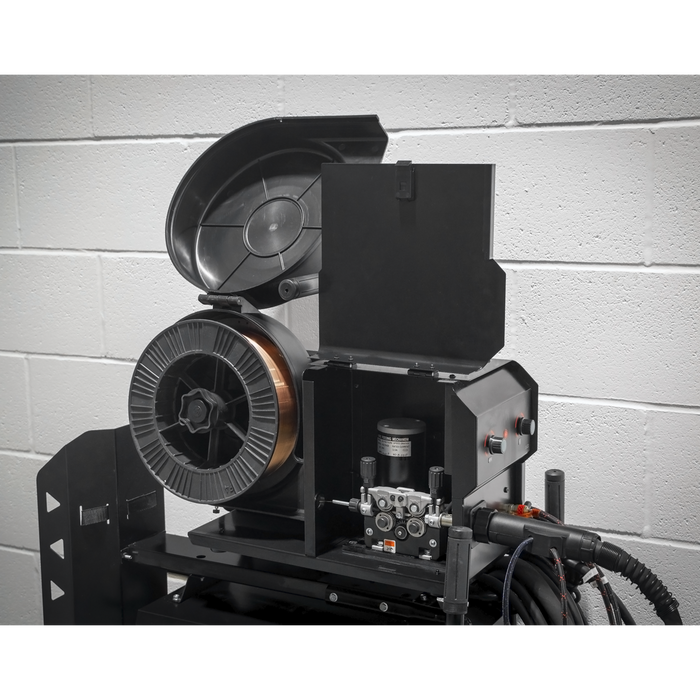

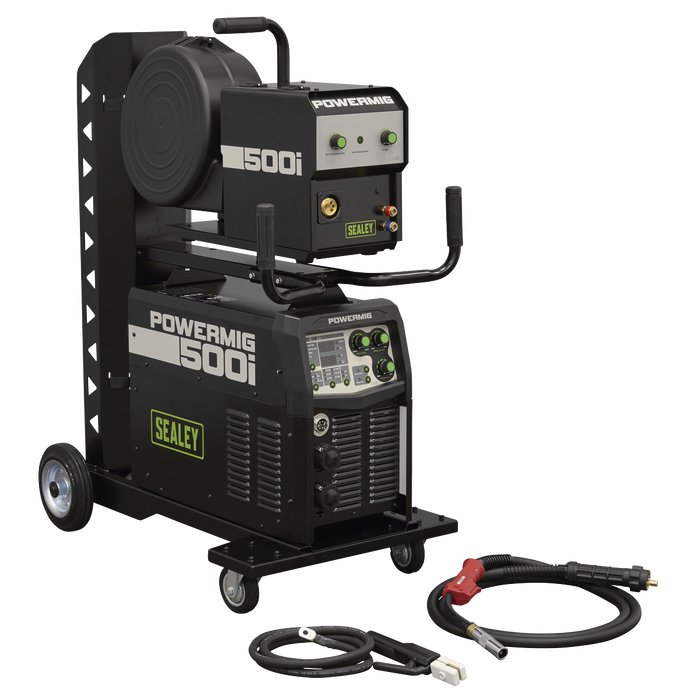

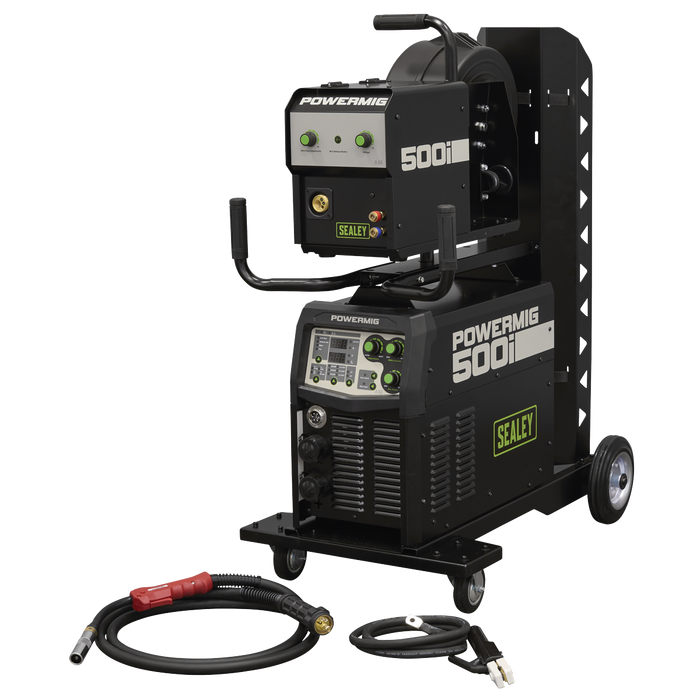

Multi process IGBT inverter Gas/Gasless MIG/TIG/MMA welder suitable for professional fabricators and workshops, as well as mechanics and technicians. Equipped with a portable wire feeder enabling access into high or tight spaces that would otherwise be difficult to reach. Maximum output of 500A making it ideal for welding a large variety of metals including steel, stainless steel up to 20mm. 2T/4T torch trigger function allowing greater precision during longer welds. Features short circuit, over-heating and over-current protection. Supplied with 2m power cable, 2m earth clamp, 3m Euro non-live MIG torch and 2m Electrode holder. Wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm. Electrode capacity from 1.6mm to 5mm. Duty Cycle: MIG 60% @ 500A, MMA 60% @ 500A, TIG 60% @ 500A. POWERMIG500Wi is also supplied with a water cooler to prolong duty cycle and efficiency.
| Model No | POWERMIG500i |
| Brand: | Sealey |
| Nett Weight: | 76.4kg |
| Welding Current: | 30-500A |

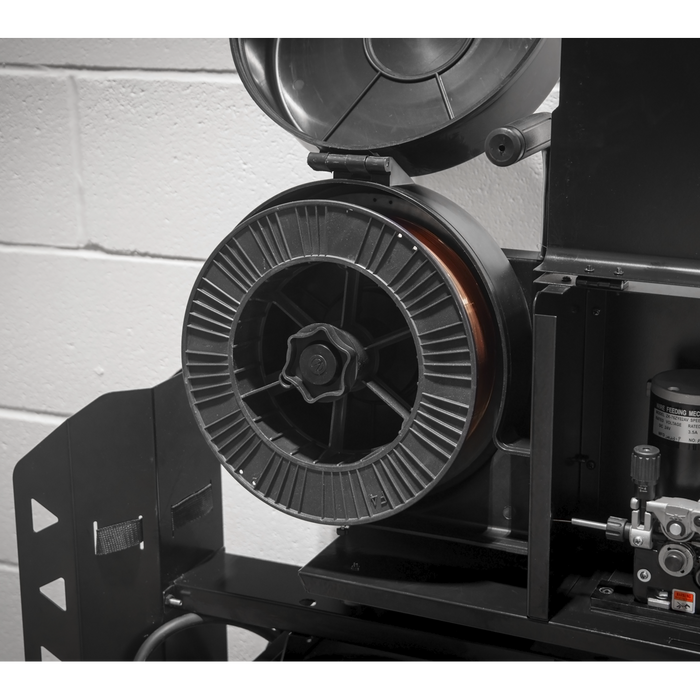

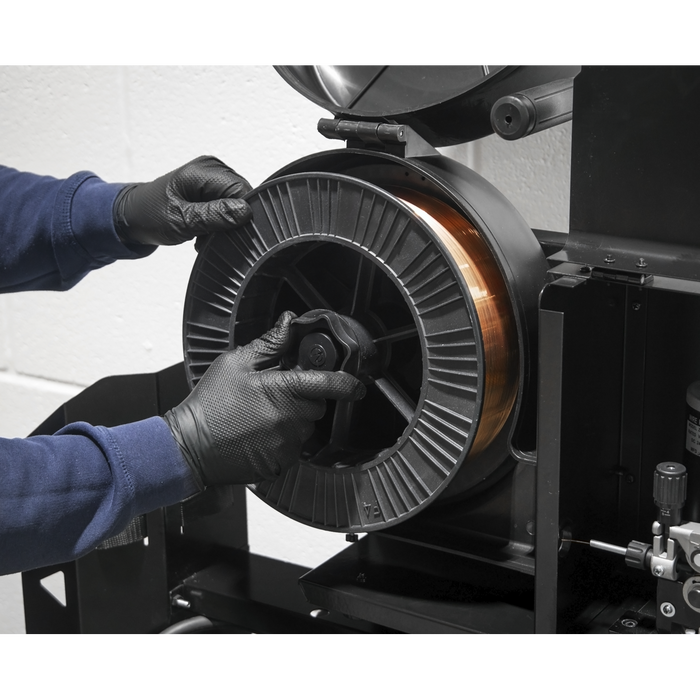

| Wire Capacity: | 5-15kg |
| Electrode Capacity: | 1.6-5mm |
| Duty Cycle MIG: | 60% @500A 100% @ 388A |
| Duty Cycle MMA: | 60% @ 500A 100% @ 388A |
| Duty Cycle TIG: | 60% @ 500A 100% @ 388A |
| Gas Type: | CO2, Argon, CO2/Argon Mix |

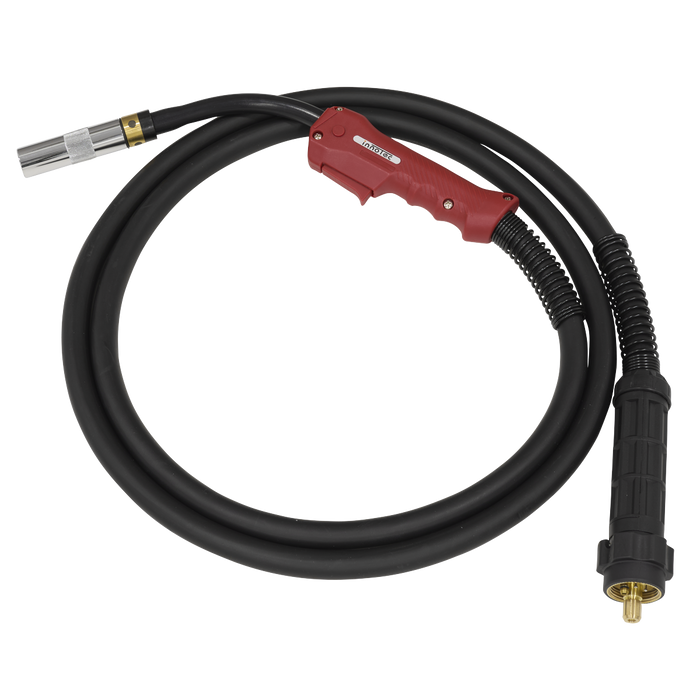

| Mig Torch (inc): | 3m Euro Non-Live Torch |
| Supply: | 400V 3ph |
| Power Supply Cable Length: | 2m |
| Weight: | 42.5kg |
| IP Rating: | IP21S |
| Absorbed Power: | 19.04kW |
| Input Current: | 39.5A (MMA), 40A (MIG) |
| Output Voltage: | 50A/22V to 500A/40V (MMA), 30A/15.5V to 500A/39V (MIG) |
| No Load Voltage: | 85V (MMA), 85V (MIG) |
| Efficeincy: | 0.8 |
