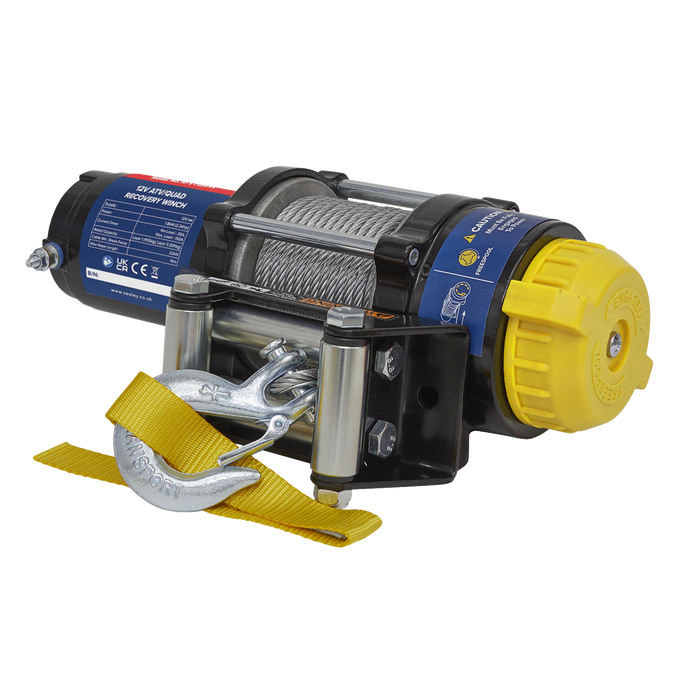

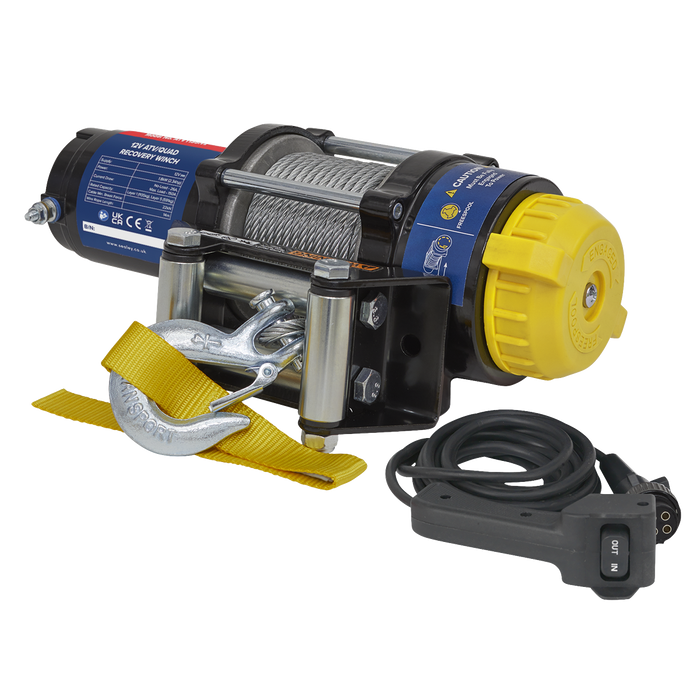

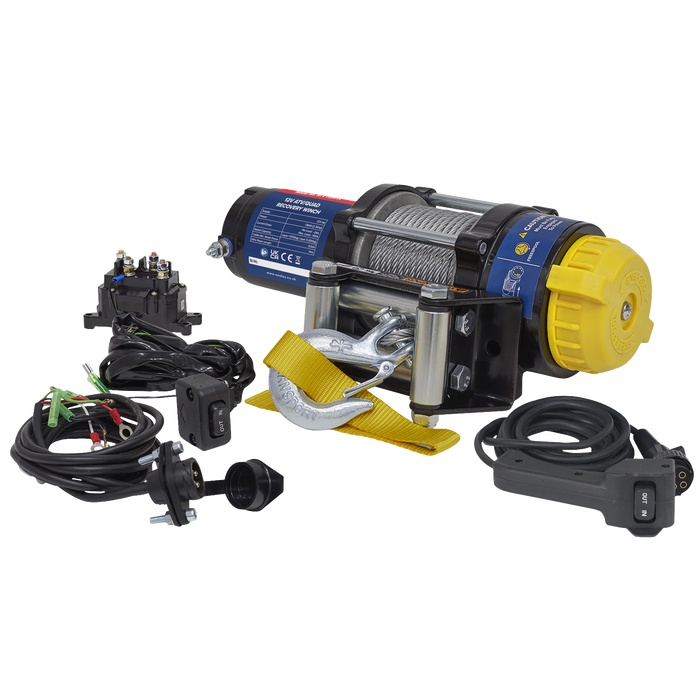

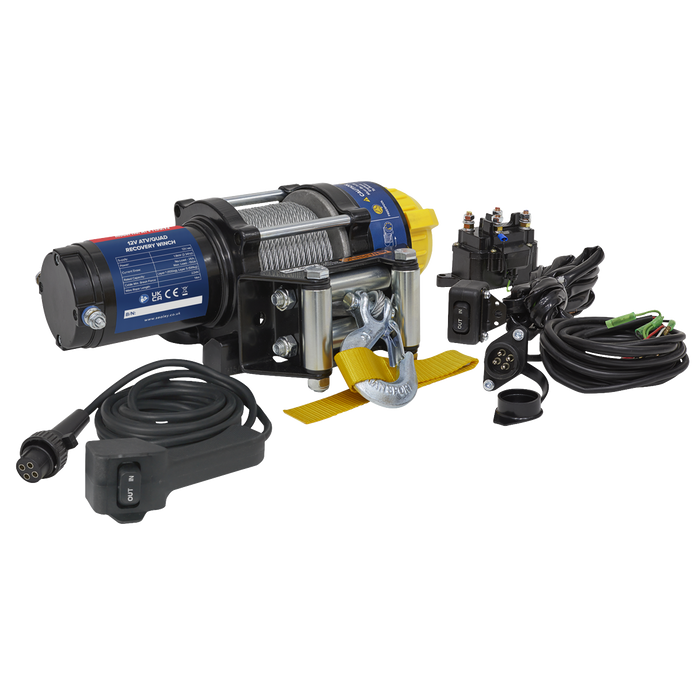

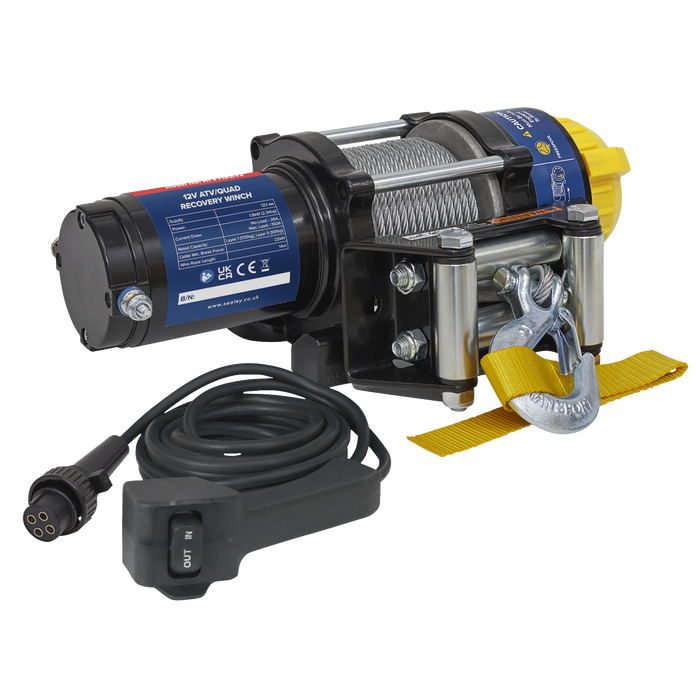

ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V | ATV1135
by Sealey
Original price
£233.95
-
Original price
£233.95
Original price
£233.95
£233.95
-
£233.95
Current price
£233.95
All Prices Excluding VAT
Shipping & VAT will be calculated at checkout where applicable.
More information on delivery and collections below.
Availability:
20 Units Ready For Shipping
SKU ATV1135
Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
| Model No | ATV1135 |
| Brand: | Sealey |
| Cable Minimum Brake Force: | 22kN |
| Consumable Parts: | ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135 |
| Current Draw: | No-Load - 26A, Maximum Load - 150A |
| Gear Ratio: | 180:1 |
| Line Pull*: | 1135kg(2500lb) |
| Line Speed*: | No-Load - 4.8m/min, Maximum Load - 1.6m/min |
| Motor Power: | 1.8kW(2.34hp) |
| Nett Weight: | 11.8kg |
| Note: | *Performance quoted at first layer of cable on drum |
| Rated Capacity: | Layer 1: 1135kg, Layer 5: 591kg |
| Supply: | 12V |
| Wire Rope Diameter: | 4.8mm |
| Wire Rope Length: | 14m |
