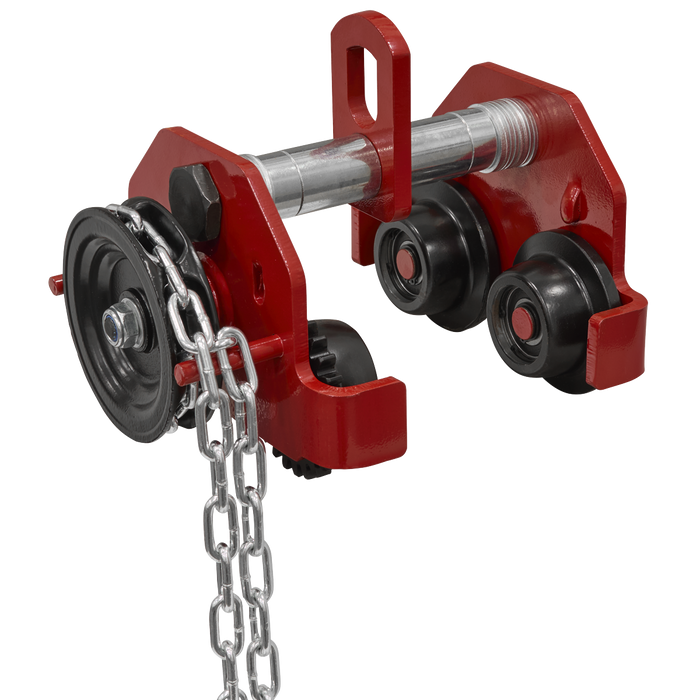

Geared Trolley 1 Tonne | PT1000G
All Prices Excluding VAT
Shipping & VAT will be calculated at checkout where applicable.
More information on delivery and collections below.
Heavy-duty steel construction with powder coat paint finish for corrosion resistance. Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
| Model No | PT1000G |
| Brand: | Sealey |
| Nett Weight: | 10.8kg |
| Capacity: | 1000kg |
| Track Width Adjustable Ramge: | 80-146mm |
| Minimum Curve Radius: | 900mm |
| A: | 213mm |
| B: | 151mm |
| C: | 115mm |
| D: | 72mm |
| E | 107mm |
| Minimum Standard I-Beam Dimensions (D x W x Web): | 180 x 100 x 6mm |
| Maximum Standard I-Beam Dimensions (D x W x Web): | 350 x 150 x 9mm |
