MacGen 32kW / 40kVA Diesel Generator, Turbocharged, Electric Start, Cummins Engine | MYCS.40
ALL PRICES EXCLUDING VAT
Shipping & VAT will be calculated at the checkout where applicable.
FREE shipping on orders over £50.

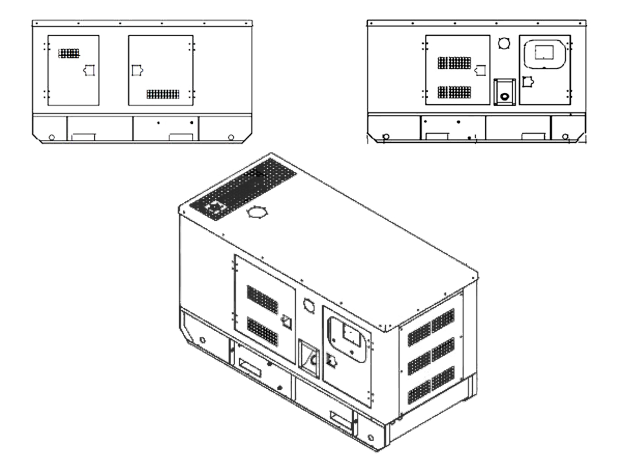

Version: Professional Range Canopied Generating Set with Integral Bund
Prime Power: 40kVA
Stand-by Power: 44kVA
Standard Voltage: 400/230V, 50HZ
Engine speed: 1500 rpm
Engine: Cummins
Model: 4BT3.9-G
Starting System: 24V Electric
Alternator: Stamford
Control panel: DSE6120
OPTIONS INCLUDED:
Bunded Base Fork Lift Pockets
Water Jacket Heater Battery Trickle Charger
125Ltr Fuel Tank Oil Pressure & Water Temperature Sensors
Silent Canopy
Socket pack 1 x 32amp 400V & 1x 32amp 1 x 16amp 230v
Cost option
ATS panel to suit £1,399.99 + VAT (Option Available To Select)
STANDARD CONFIGURATION
• Engine: Cummins including air filters, fuel
filters, oil filter, starting motor and charging
alternator etc.
• Alternator: Stamford brushless AC alternator
• Radiator: 50ºC, fan protective shroud
• Base Frame: >550kW: channel steel base
frame, anti-vibration pads, battery holder
• Control System: DEEP SEA 7320
• Start Battery: Dry charged battery, available
for 6 times; connection cables
• Installation Accessories: Bellow, elbow and
flange, exhaust silencer etc.
• Documents: electric drawing, operation &
maintenance manual, certification etc.
OPTIONAL CONFIGURATION
Engine Accessories:
• Heavy duty air filter
• Coolant heater
• Lube oil heater
• Fuel and water separator
Alternator & Accessories:
• Stamford
• Marathon
• Anti-condensation heater
• PMG
Cooling System:
• 50ºC radiator,
• Heat exchanger
• Water cooling tower
• External water circulation pumping system,
• Remote horizontal water tank system
Control System:
• AMF
• Parallel
• Practical type in low temperature environment
• Control screen heater
Automatic Transfer Switch:
• ATS cabinet
Start Battery
• Nickel-cadium battery
• Maintenance-free battery
• Power charger and selector
• Charging current meter
External Fuel Tank:
• 500L, 1000L, 1500L, 2000L, 2500L, 3000L,
4000L, 5000L
