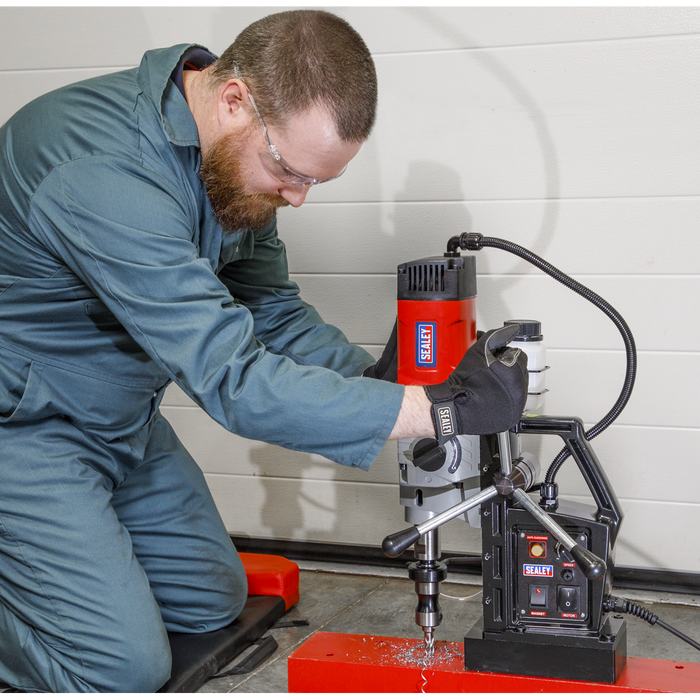

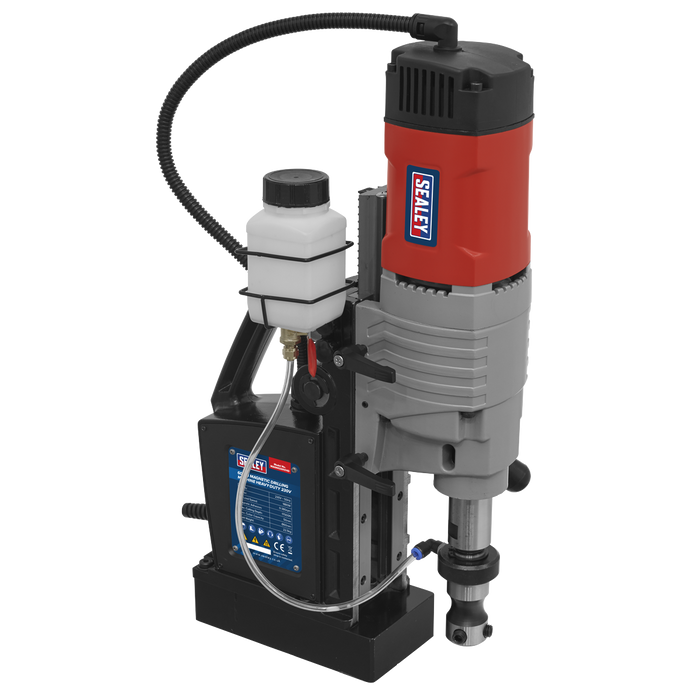

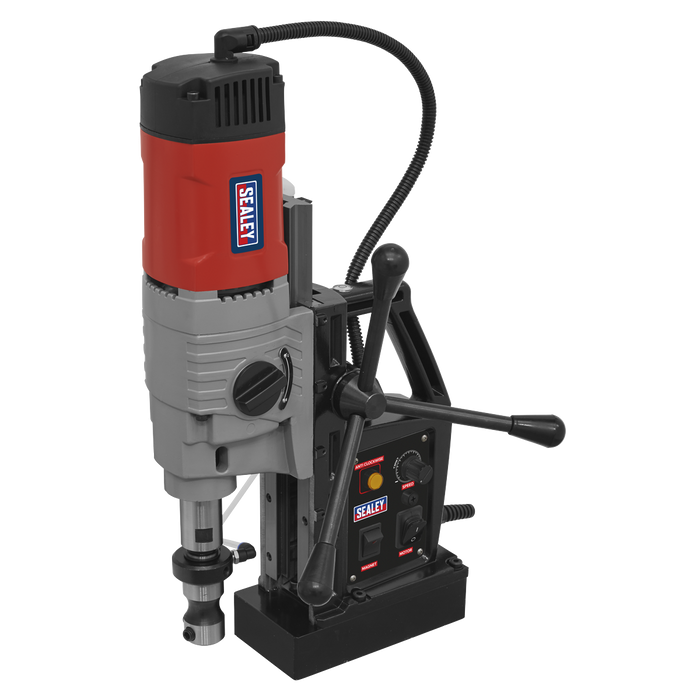

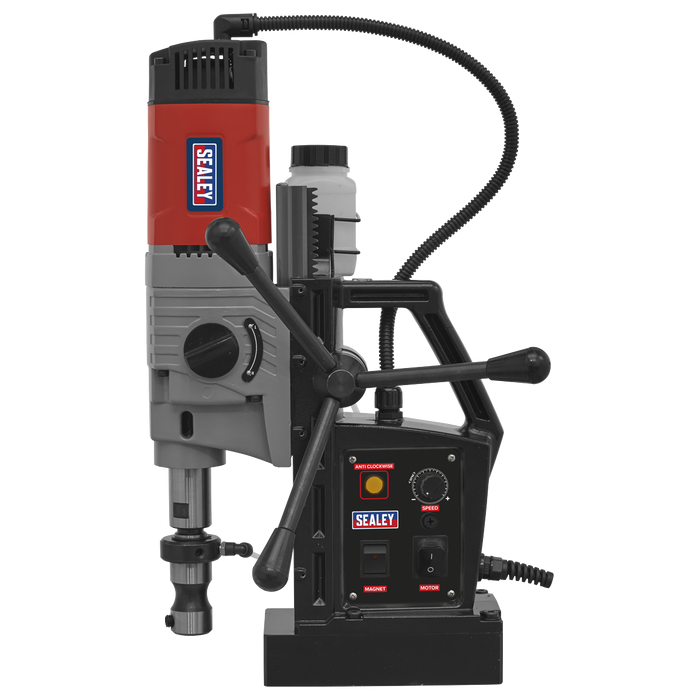

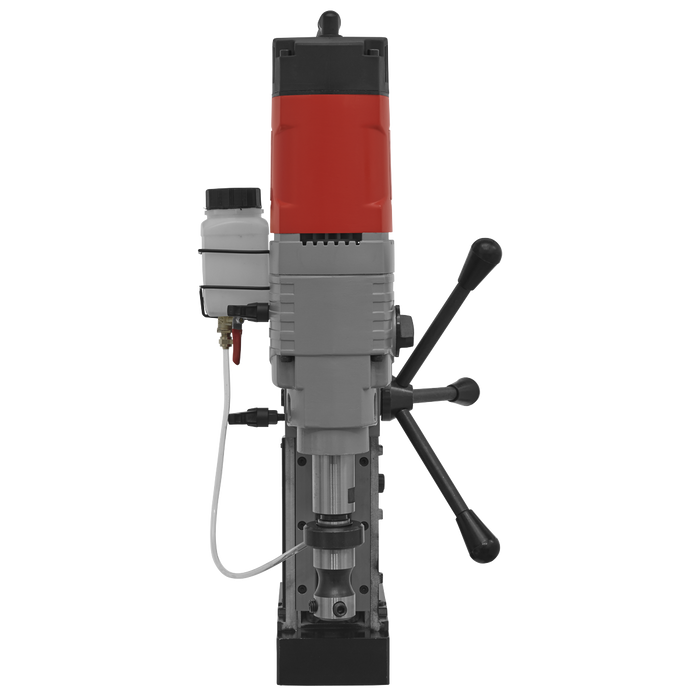

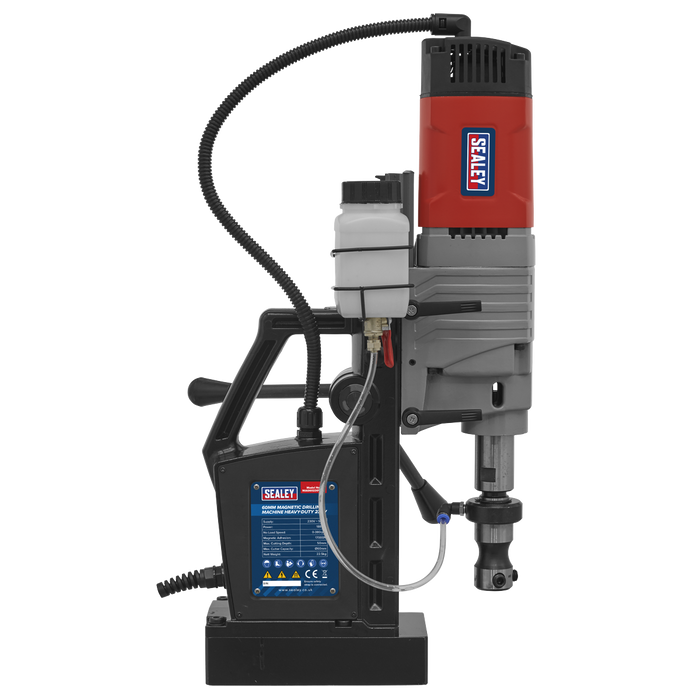

Magnetic Drilling Machine Heavy-Duty 60mm 230V | MAG60230VHD
All Prices Excluding VAT
Shipping & VAT will be calculated at checkout where applicable.
More information on delivery and collections below.

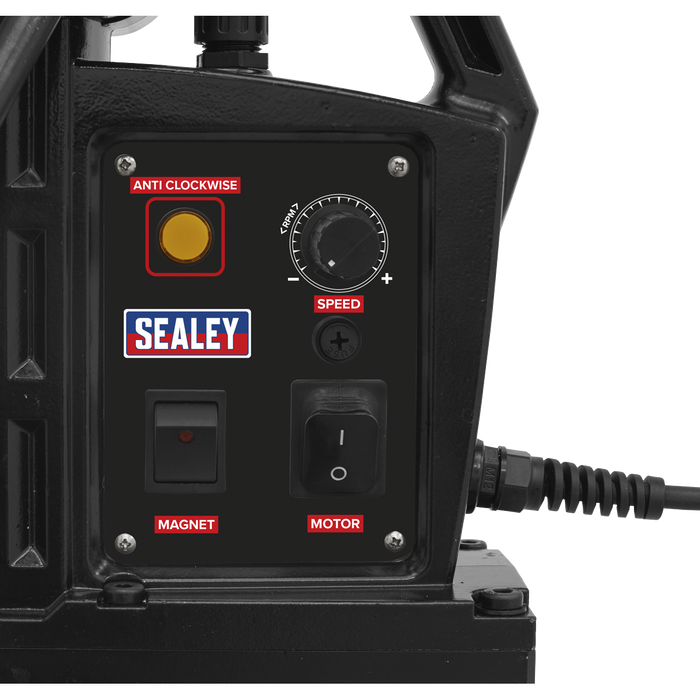

Manufactured using high quality components for performance and reliability. Made from heavy-duty die-cast magnesium alloy with a variable speed gearbox for greater accuracy. Fitted with a powerful magnet to ensure unit stays adhered at any angle and a double dovetail groove to increase the stroke length. Includes safety fixing strap and integrated coolant system to extend the life of cutters and increase the quality of the cut. Can be used with a 16mm twist drill chuck and M8 to M20 Tapping chucks. Designed for use in fabrication, construction and other applications when drilling/tapping ferrous metal.
| Model No | MAG60230VHD |
| Brand: | Sealey |
| Magnet Adhesion: | 17000N |
| Maximum Annular Cutter Capacity: | Ø60mm |
| Maximum Cutter Depth: | 50mm |
| Motor Power: | 1880W |
| Nett Weight: | 22.50kg |
| No-Load Speed: | 220/380rpm |
| Core Drill Diameter: | Ø60mm |
| Twist Drill Diameter: | 23mm |
| Tapping Drill Diameter: | M8 - M20 |
| Power Supply: | 220V - 50Hz |
| Motor Power: | 1880W |
| Magnetic Adhesion: | 17000N |
| No-Load Speed: | 0-380rpm |
| Cutting Depth: | 50mm |
| Morse taper: | MT3 |
| Stroke Length: | 220mm |
| Supply: | 230V~50Hz |
