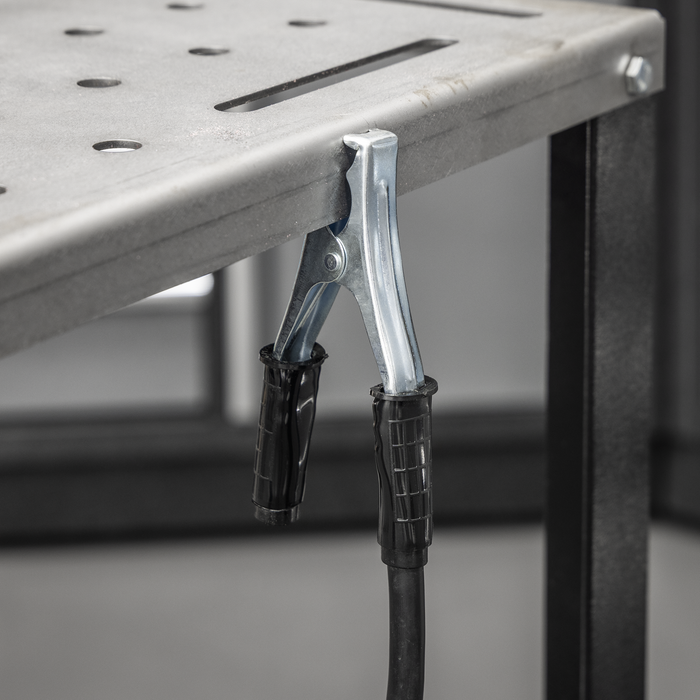

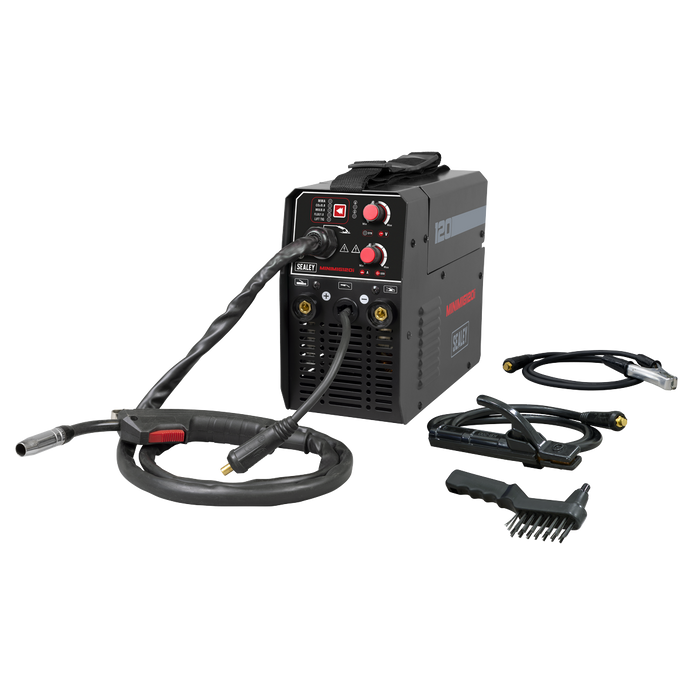

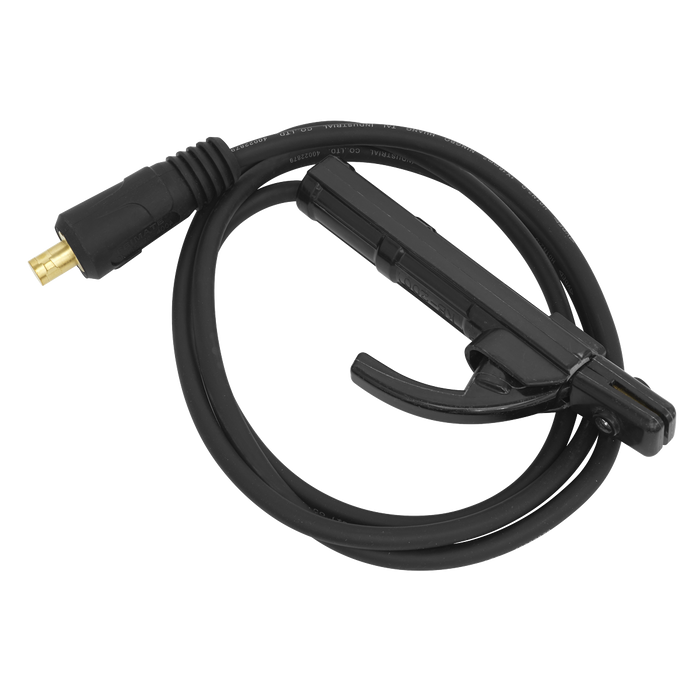

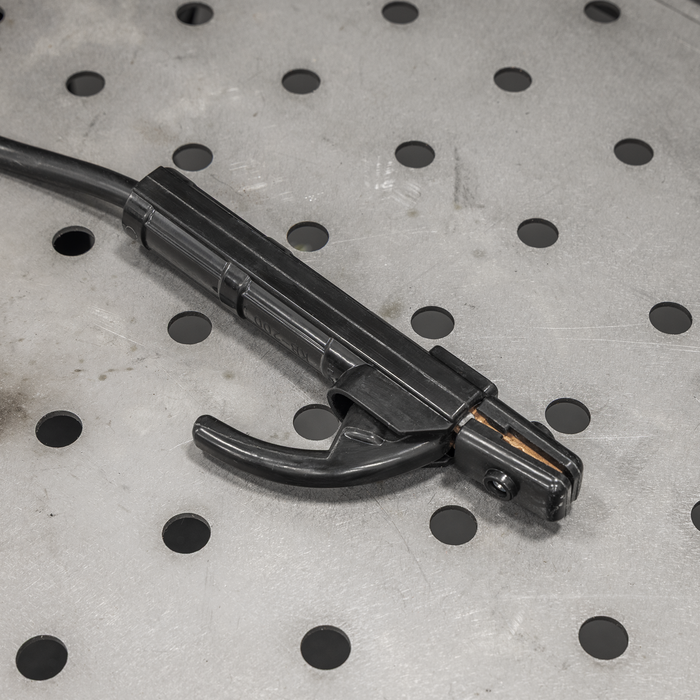

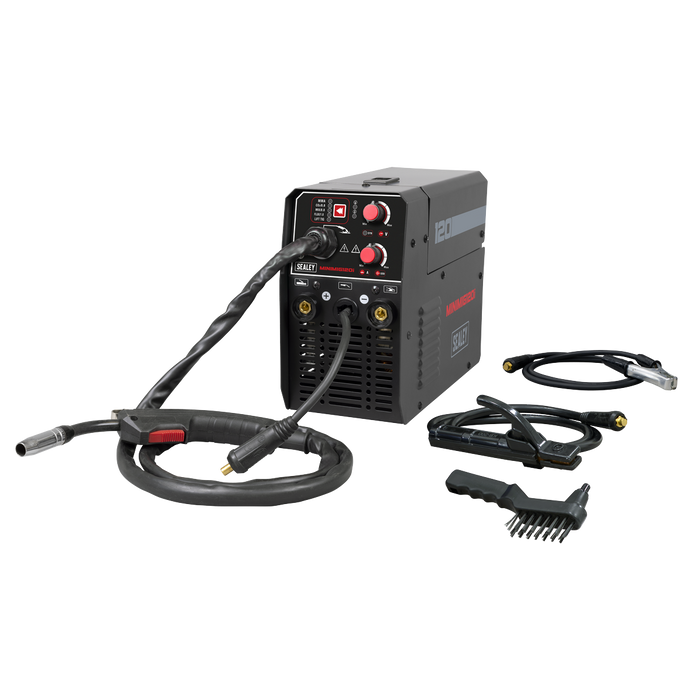

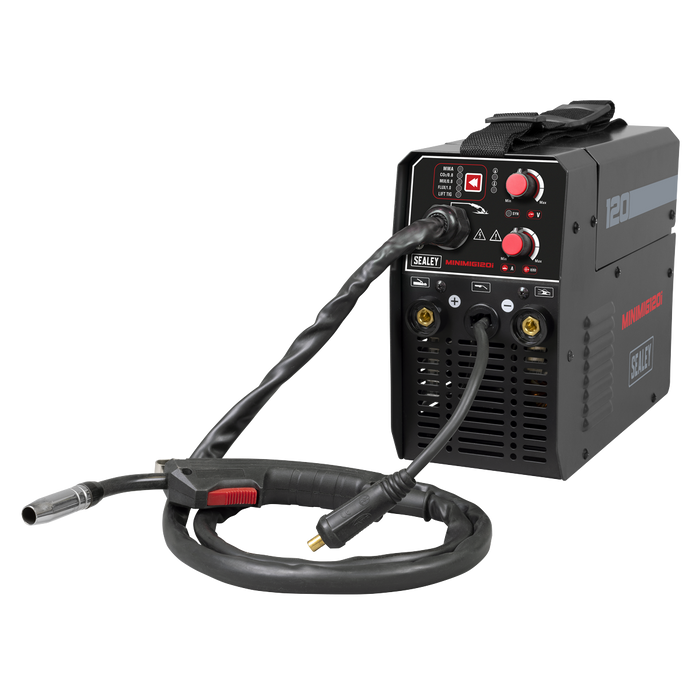

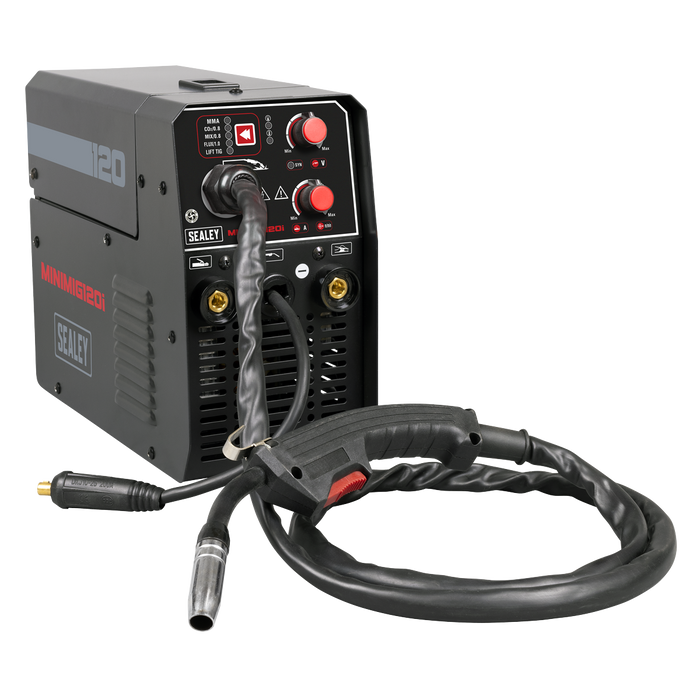

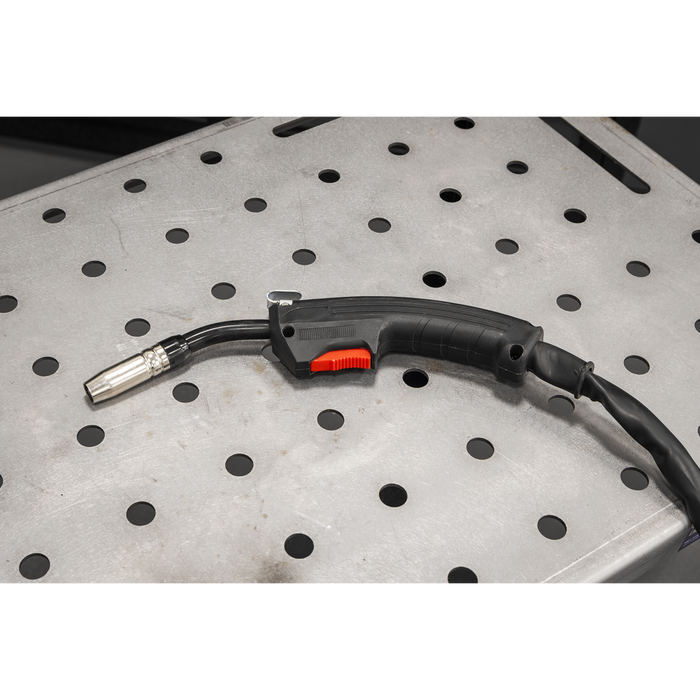

IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 120A. Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops, and mobile technicians. Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø3.2mm electrode. Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
| Model No | MINIMIG120i |
| Brand: | Sealey |
| Nett Weight: | 6.9kg |
| Welding Current: | 10-120A |
| Duty Cycle MIG: | 60% @ 120A, 100% @ 76A |
| Duty Cycle MMA/ARC: | 60% @ 120A, 100% @ 76A |
| Duty Cycle TIG: | 60% @ 120A, 100% @ 76A |
| Wire Capacity: | 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire, |
| Electrode Capacity: | 1.6-3.2mm |
| Absorbed Power: | 4.4kW |
| Supply: | 230V 16A* |
| Insualtion Class: | H |
| IP Rating: | IP21S |
| Note* | To achieve maximum power a 16A supply may be required. |
