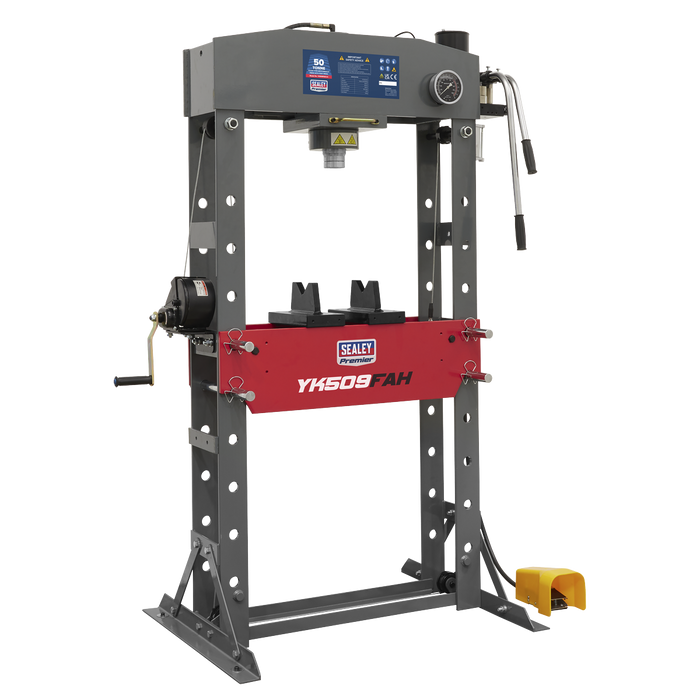

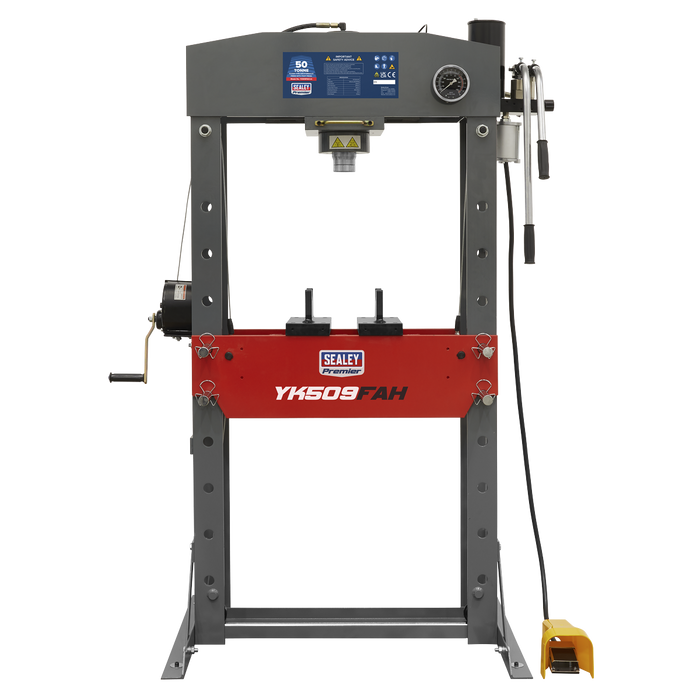

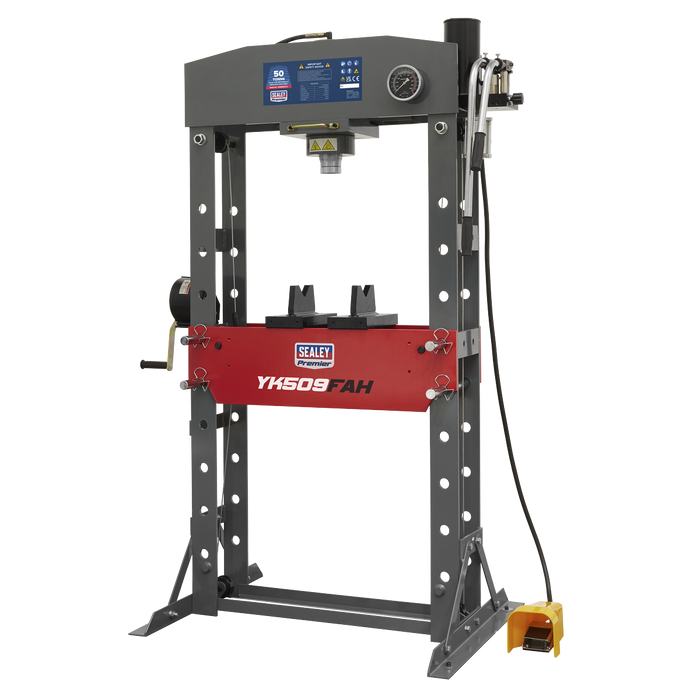

Premier Air/Hydraulic Floor Type Press with Foot Pedal 50 Tonne | YK509FAH
by Sealey
Original price
£2,609.95
-
Original price
£2,609.95
Original price
£2,609.95
£2,609.95
-
£2,609.95
Current price
£2,609.95
All Prices Excluding VAT
Shipping & VAT will be calculated at checkout where applicable.
More information on delivery and collections below.
Availability:
50 Units Ready For Shipping
SKU YK509FAH
Steel frame construction with side mounted air motor powering hydraulic pump unit. 2-speed manual operation and sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with table winch and flat pressing plate/V-blocks.
| Model No | YK509FAH |
| Air Consumption: | 7cfm |
| Bench or Floor Mounting: | Floor |
| Brand: | Premier |
| Capacity: | 50 Tonne |
| Gauge Included: | Yes |
| Lateral Ram Travel: | 245mm |

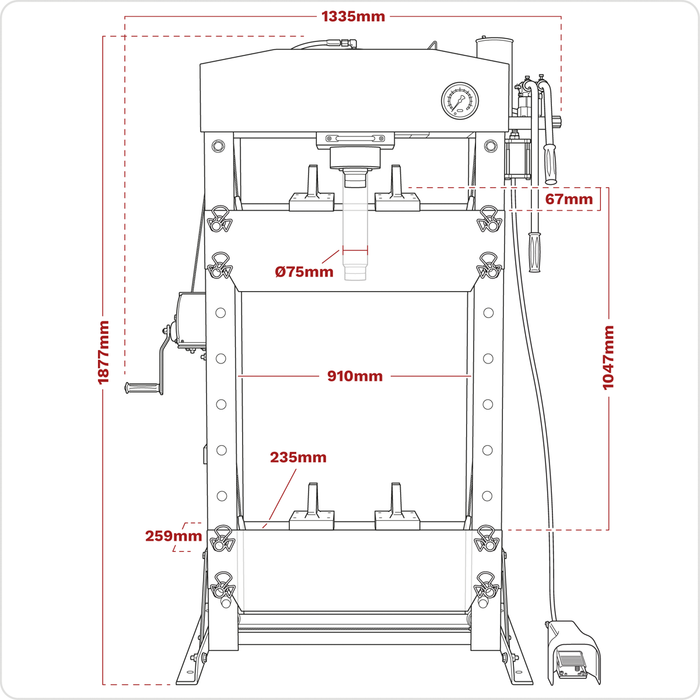

| Maximum Height - Ram to Table: | 1047mm |
| Minimum Height - Ram to Table: | 67mm |
| Nett Weight: | 302.5kg |
| Operating Table Width: | 730mm |
| Optional Accessories: | YKSG50 - Safety Guard, YKPP8 - Press Pin Set |
| Overall Height: | 1877mm |
| Ram Diameter: | Ø75mm |
| Ram Stroke: | 200mm |
| Table Aperture: | 235mm |
| Type: | Air/Hydraulic |
| Warranty Information: | This is test warranty information. |
| Working Table Depth: | 259mm |
| Working Table Width: | 910mm |
