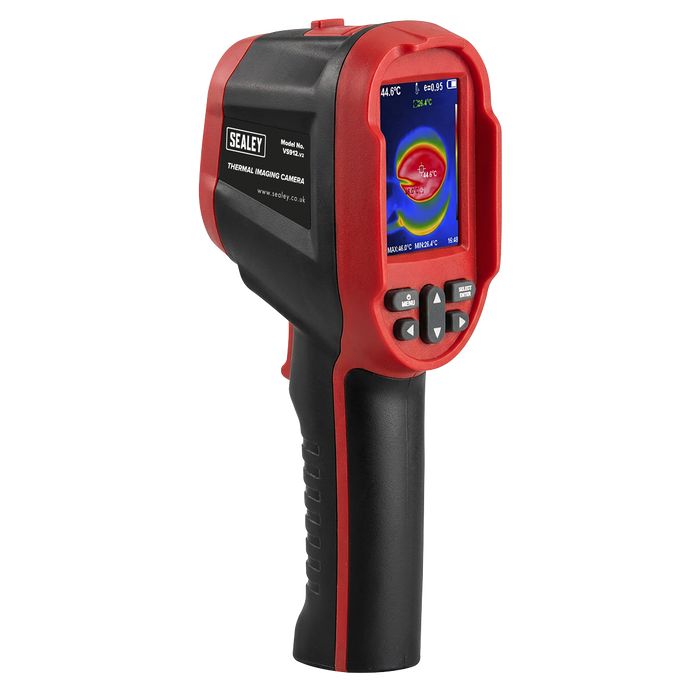

Thermal Imaging Camera | VS912
All Prices Excluding VAT
Shipping & VAT will be calculated at checkout where applicable.
More information on delivery and collections below.
Identify hotspots and cold zones in systems and surfaces. On-screen cursor highlights precise temperature variations. 70mm screen delivers sharp visual feedback. Combines traditional imaging with thermal overlays at adjustable intensities. 26×19° field of view. Focal distance from 3.2mm, adjustable between 200–400mm. Rechargeable 2000mAh battery. Identify faults in heated seats, power windows, and wiring resistance with precision. Locate electrical overheating faults in fixings and connections. Highlight damp areas and potential water ingress. Inspect radiators, plumbing lines and underfloor heating performance. Reveal insulation gaps around seals, frames and windows. Supplied in a storage case.
| Model No | VS912 |
| Battery Run Time: | 3hrs |
| Brand: | Sealey |
| Colour Palette: | Rainbow, Iron Oxide Red, Cold Color, Black & White, White & Black |
| Emissivity: | 0.1 to 1 Adjustable |
| Field of Vision: | 26°×19° |
| Focal Distance: | 3.2mm, adjustable between 200–400mm |
| Image Mix (Camera to Thermal): | 0%, 25%, 50%, 75%, 100% |
| Memory Capacity: | Internal Memory 3GB |
| Nett Weight: | 0.66kg |
| Power Source: | 2000mAh |
| Resolution: | Infrared Image 120 x 90 (10800 Pixels)-Camera Image 3 Mega Pixels |
| Display Screen: | 70mm TFT Colour Display |
| Visual Image Resolution: | 3 Megapixel |
| Accuracy: | >0°C ±2% or reading ±2°C/3.6°F; <0°C; ±3°C/5.4°F |
| Thermal Sensitivity: | 0.15°C/0.9°F |
| Wavelength Range: | 8-14um |
| Focus Mode: | Fixed |
| Video Capture: | Yes |
| Software Analysis: | Support |
| Image Capture Frequency: | 25Hz |
| File Format: | JPG/MP4 |
| Storage: | Built-in 4G eMMC (about 3G storage space available to the user |
| Power Supply: | Rechargeable 2000mAh battery or Type-C Power Supply |
| Screen Size: | 70mm |
| Auto-Power Off: | Selectable: 5min/20min/Not Power-Off Automatically |
| Working Conditions: | -10°C to 50°C/14°F to 144°F; 10 to 85%RH (non-condensing) |
| Storage Conditions: | -20°C to 60°C/-4°F to 140°F; 10 to 85%RH (non-condensing) |
| Temperature Range: | -20°C to +550°C (-4°F - 1022°F) |
