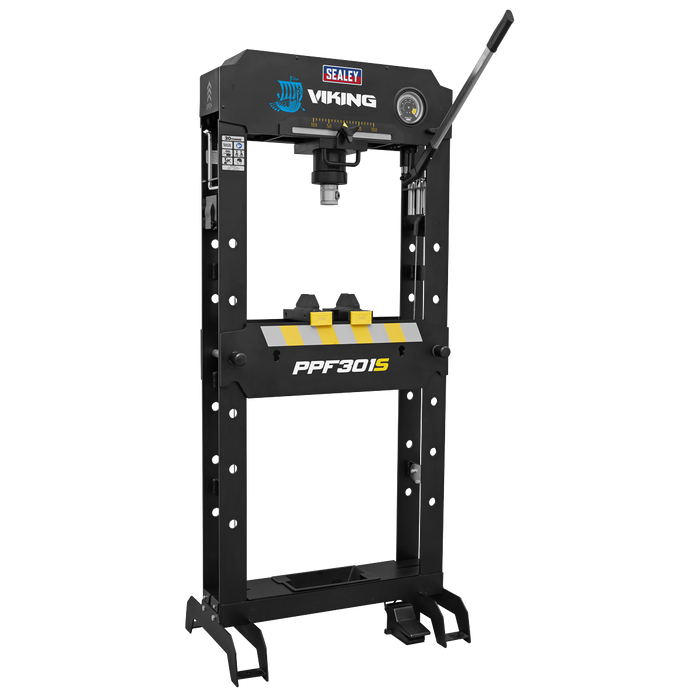

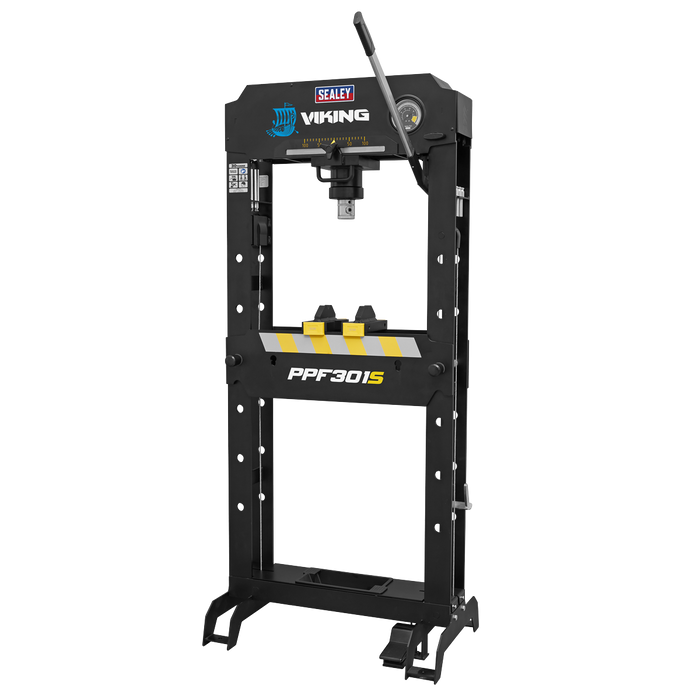

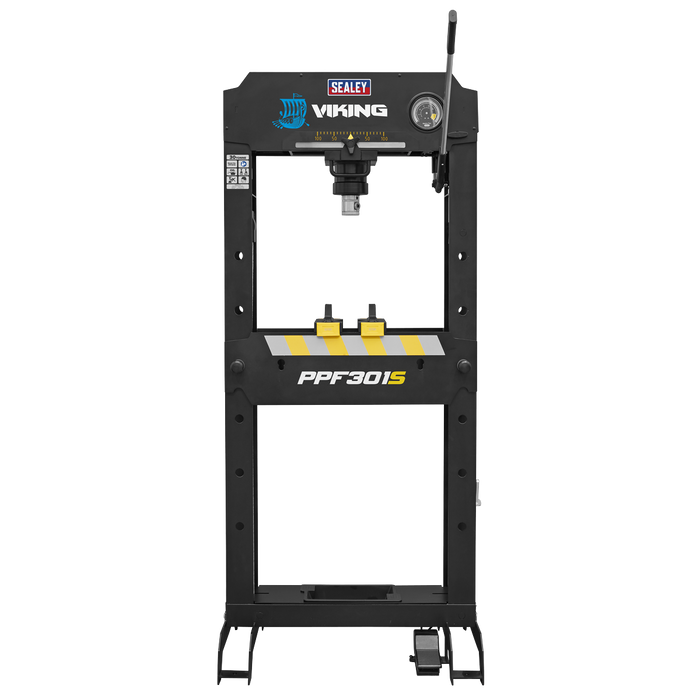

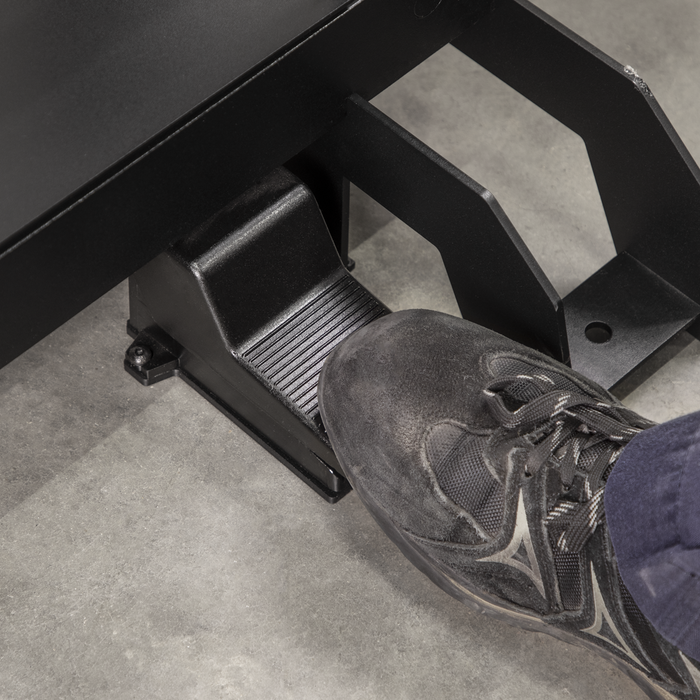

Viking Floor Type Air/Hydraulic Press with Sliding Ram and Foot Pedal 30 Tonne | PPF301S
by Sealey
Original price
£1,709.96
-
Original price
£1,709.96
Original price
£1,709.96
£1,709.96
-
£1,709.96
Current price
£1,709.96
All Prices Excluding VAT
Shipping & VAT will be calculated at checkout where applicable.
More information on delivery and collections below.
Availability:
20 Units Ready For Shipping
SKU PPF301S

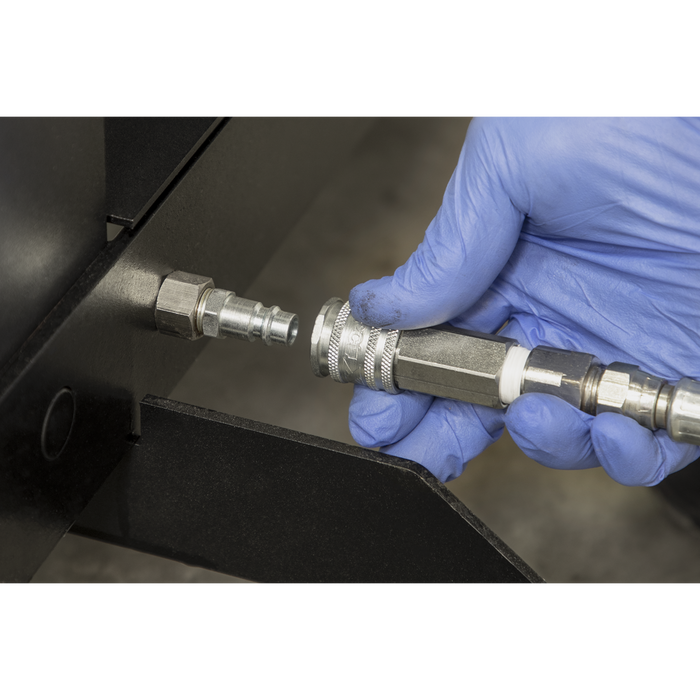

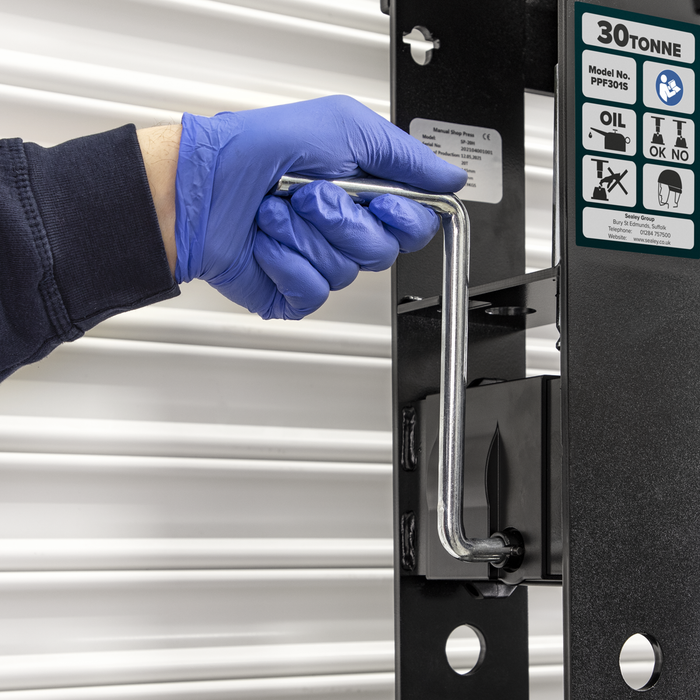

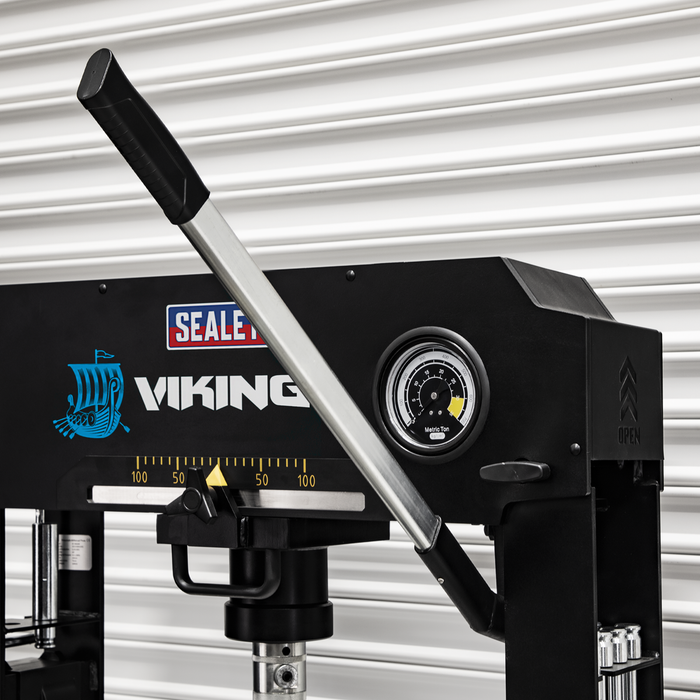

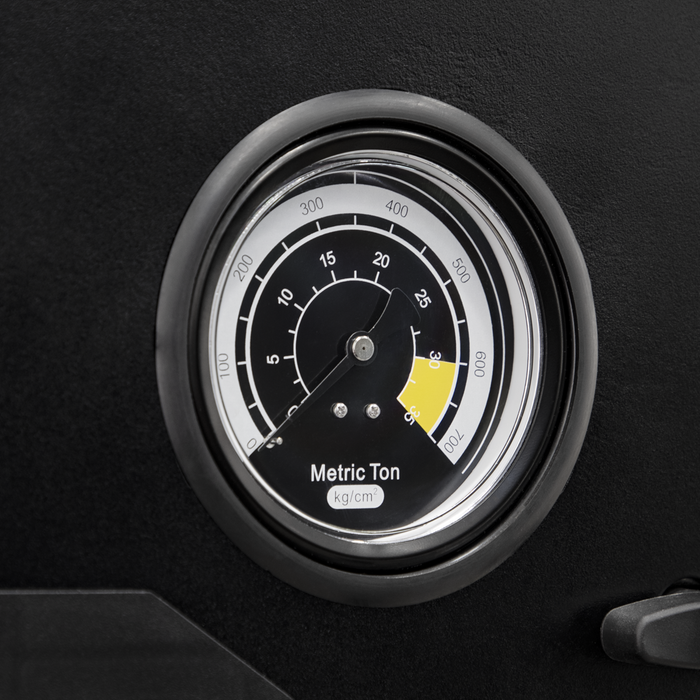

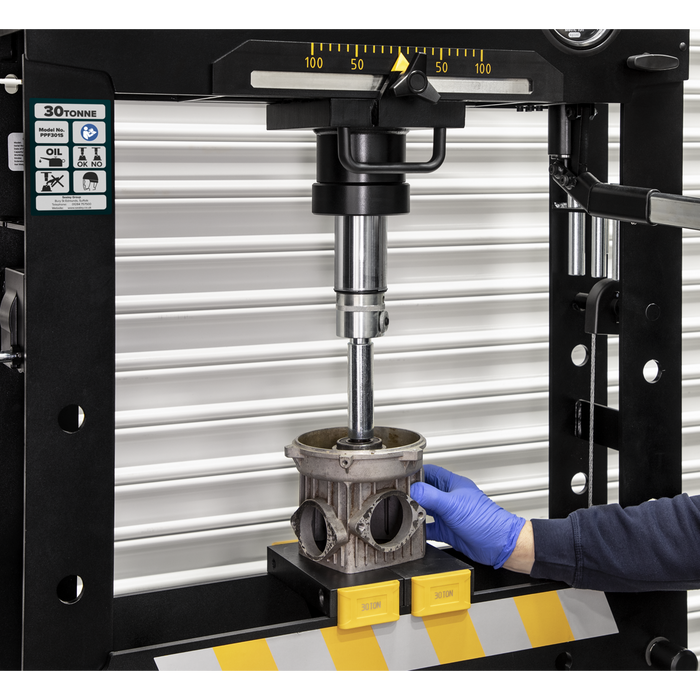

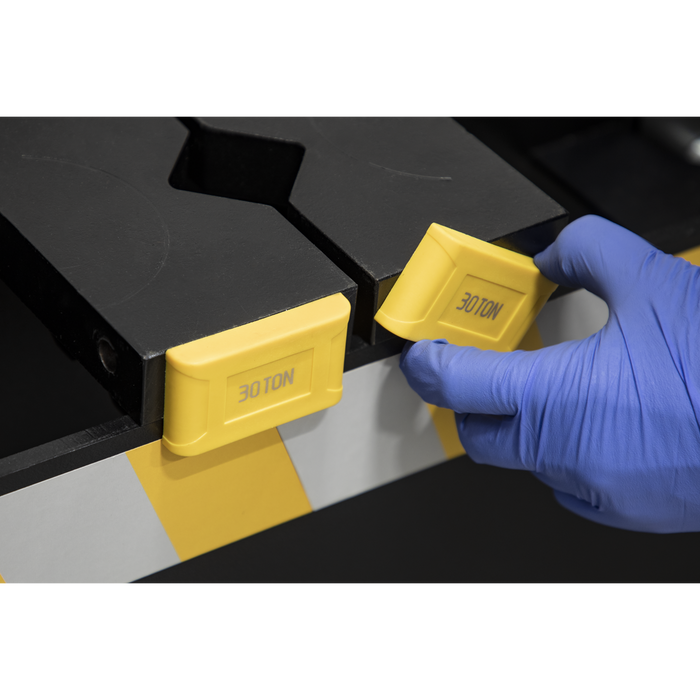

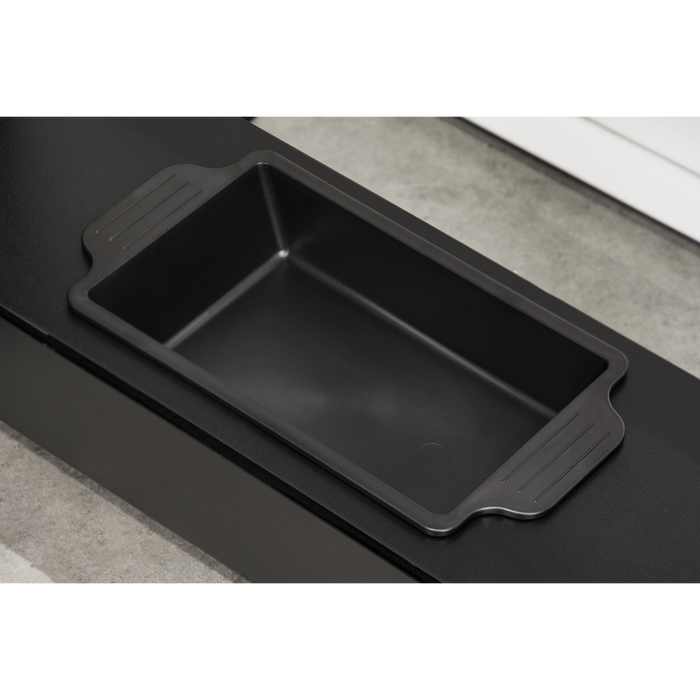

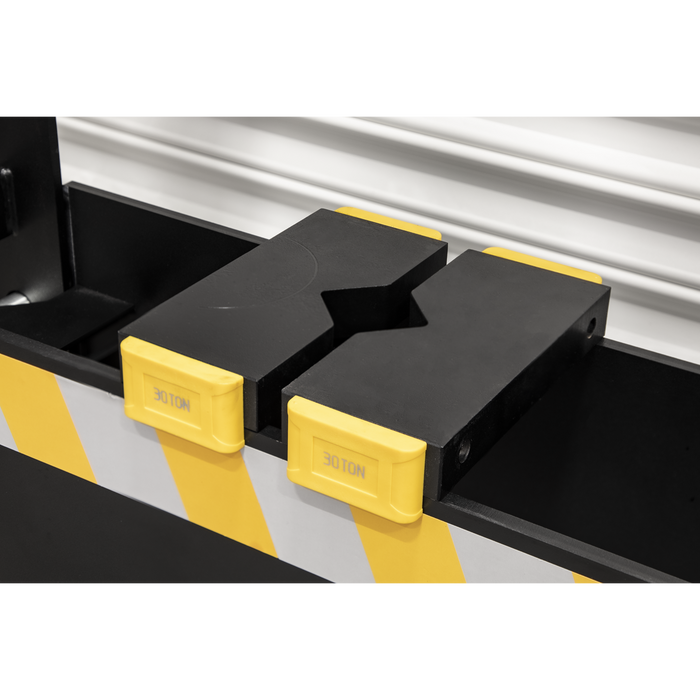

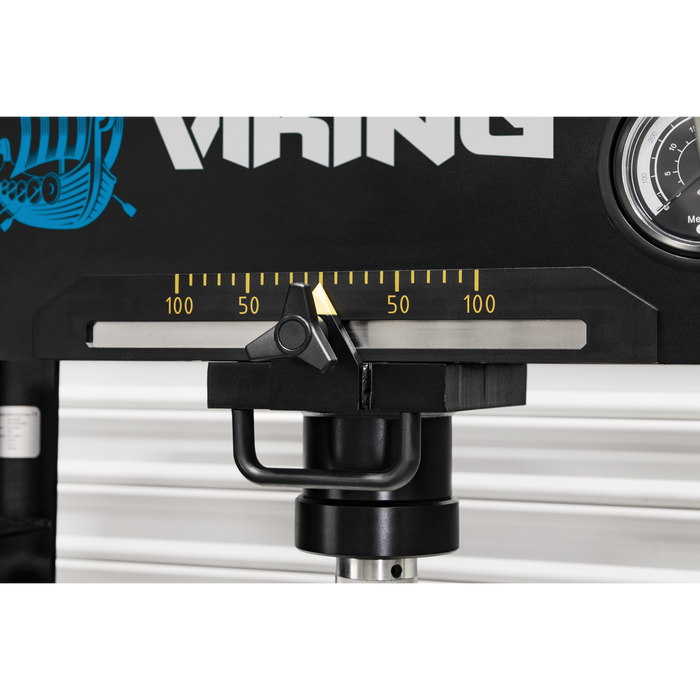

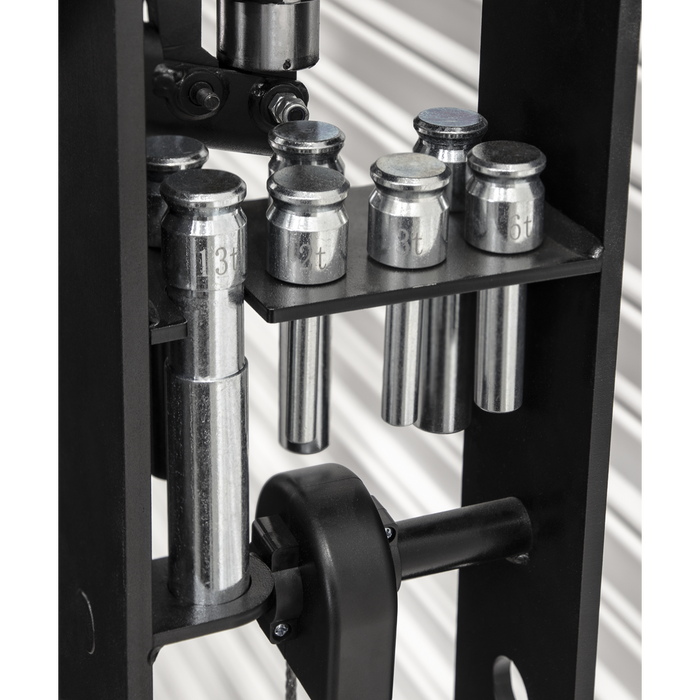

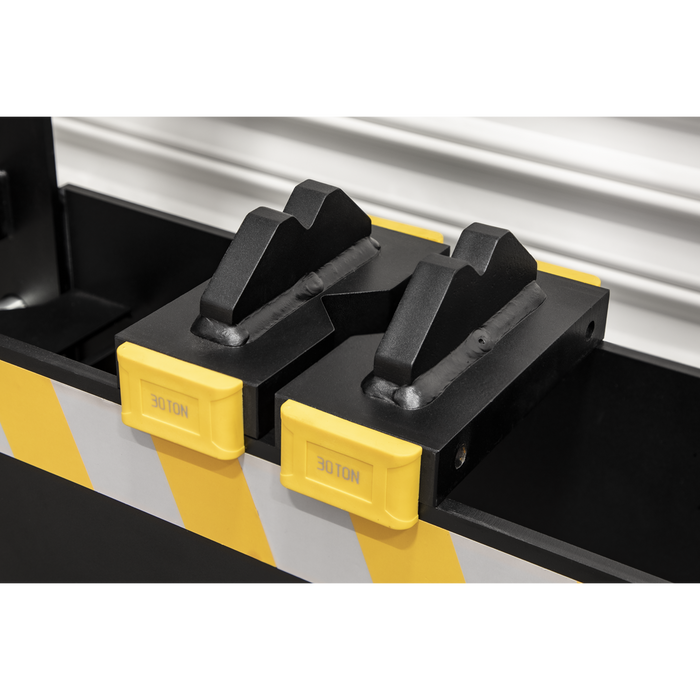

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

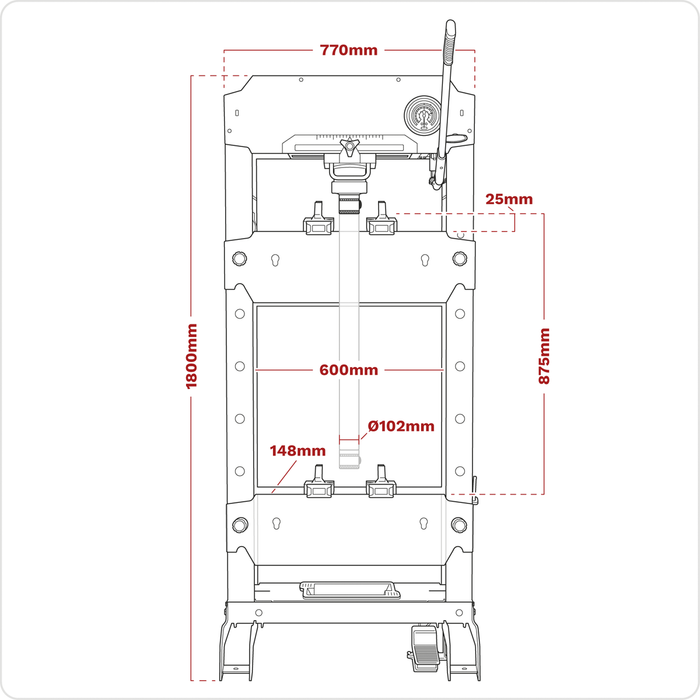

| Model No | PPF301S |
| Air Consumption: | 4.5cfm |
| Bench or Floor Mounting: | Floor |
| Brand: | Viking |
| Capacity: | 30 Tonne |
| Gauge Included: | Yes |
| Lateral Ram Travel: | 200mm |
| Maximum Height - Ram to Table: | 850mm |
| Minimum Height - Ram to Table: | 25mm |
| Nett Weight: | 162.5kg |
| Operating Table Width: | 600mm |
| Overall Height: | 1800mm |
| Ram Diameter: | Ø103.2mm |
| Ram Stroke: | 220mm |
| Screw Extension: | 75mm |
| Table Aperture: | 168mm |
| Type: | Floor |
| Working Table Depth: | 188mm |
| Working Table Width: | 770mm |
