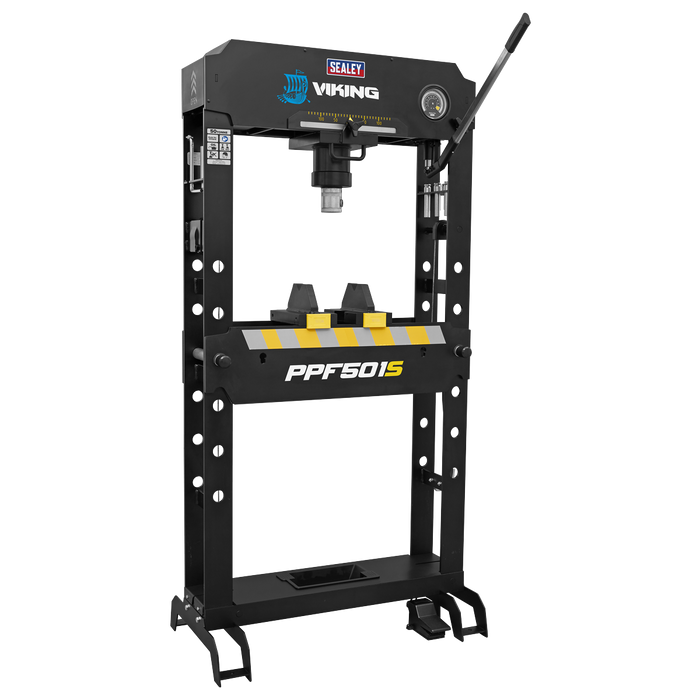

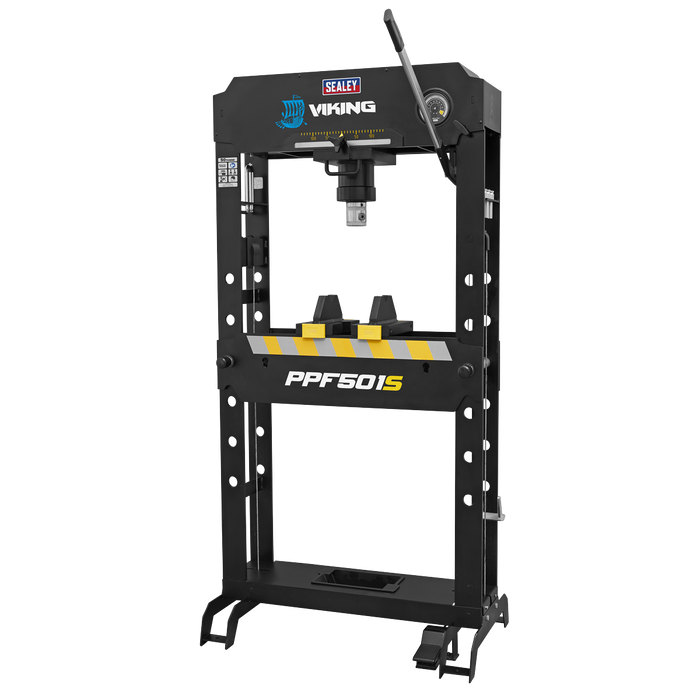

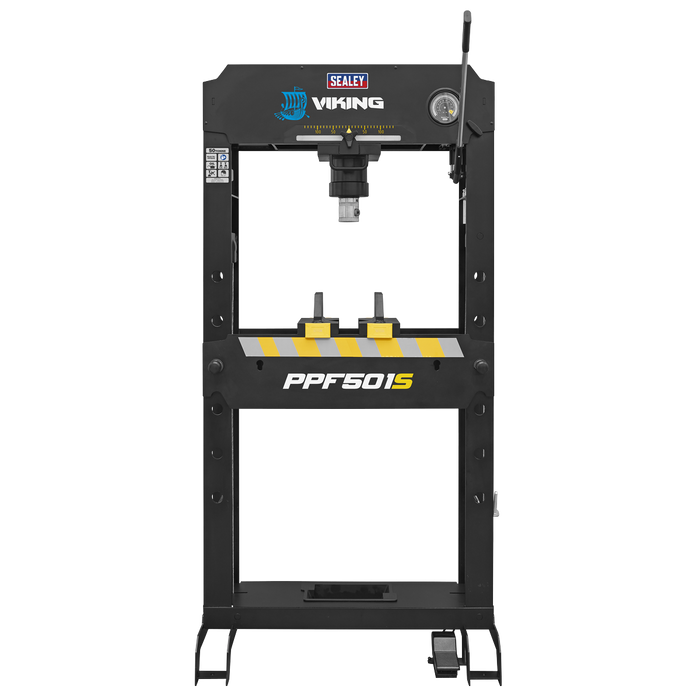

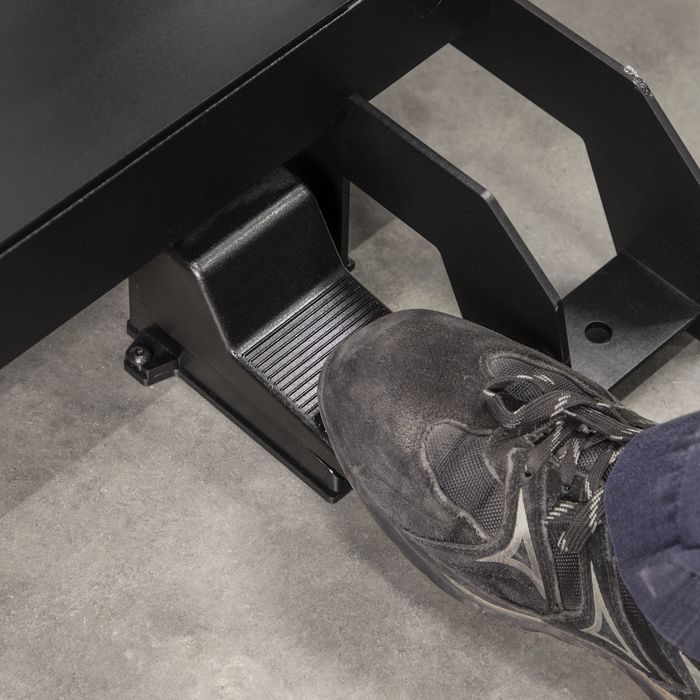

Viking Floor Type Air/Hydraulic Press with Sliding Ram and Foot Pedal 50 Tonne | PPF501S
ALL PRICES EXCLUDING VAT
Shipping & VAT will be calculated at the checkout where applicable.
FREE shipping on orders over £75.
If item availability displays "Available to order" please contact us to confirm lead times, as some items may only be available to back order.
Items held in stock at SBT will display a number figure, and will be dispatched immediately.

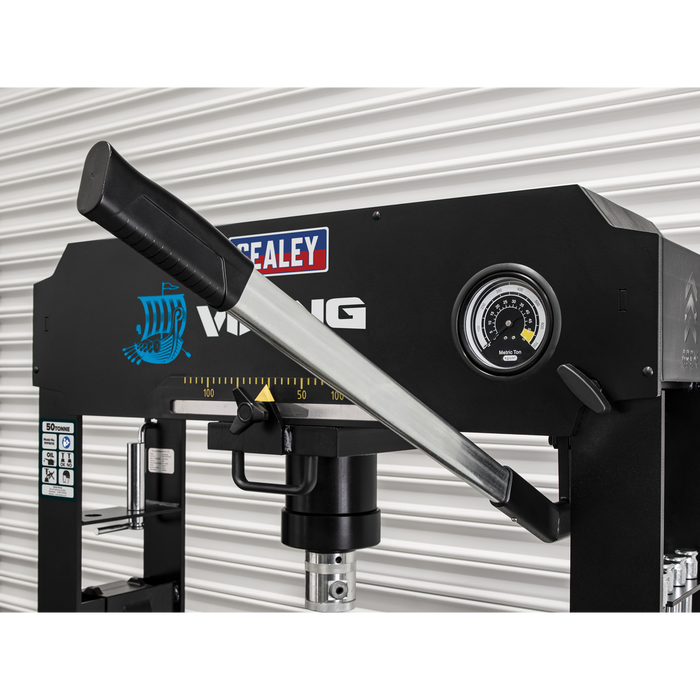

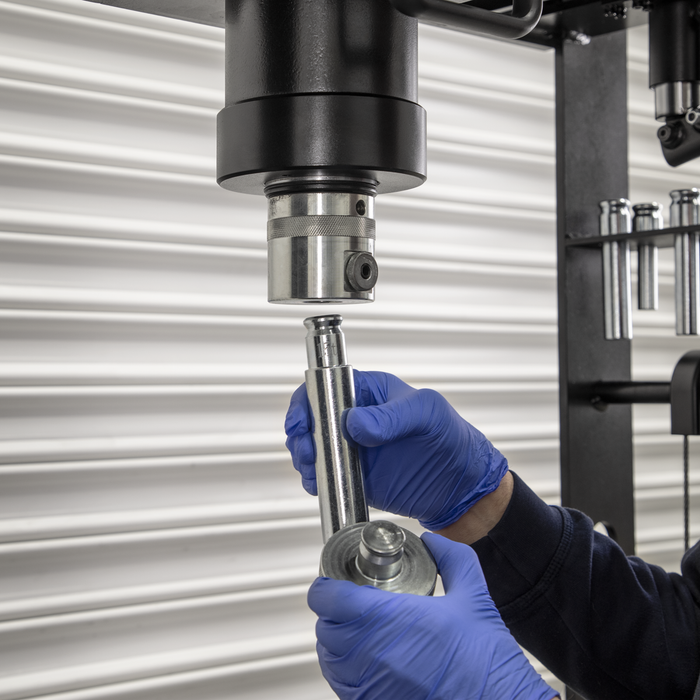

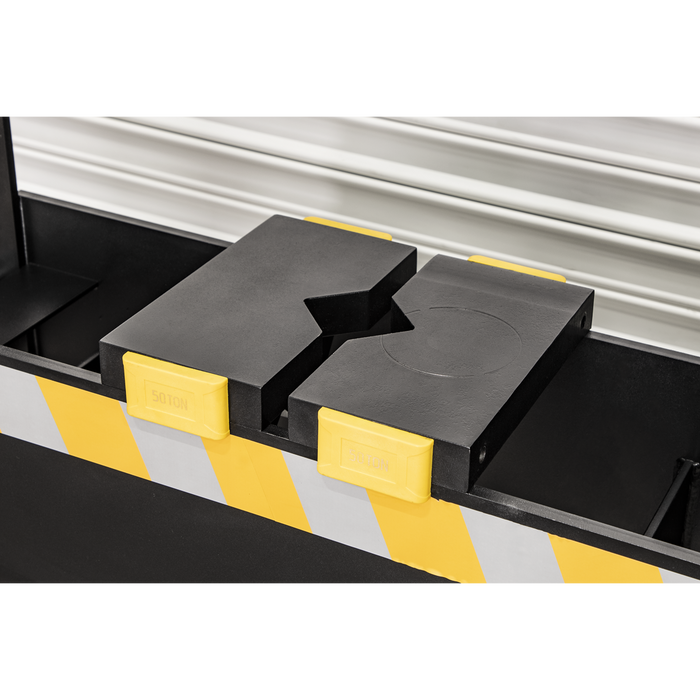

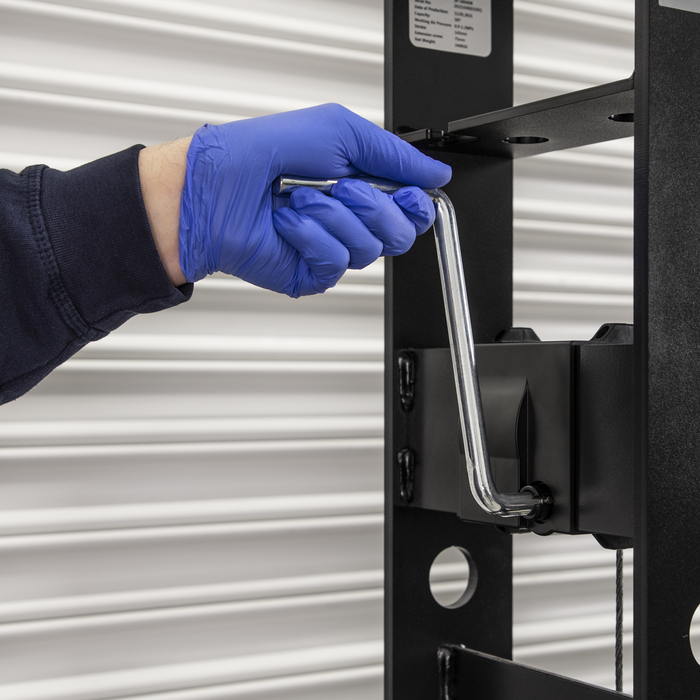

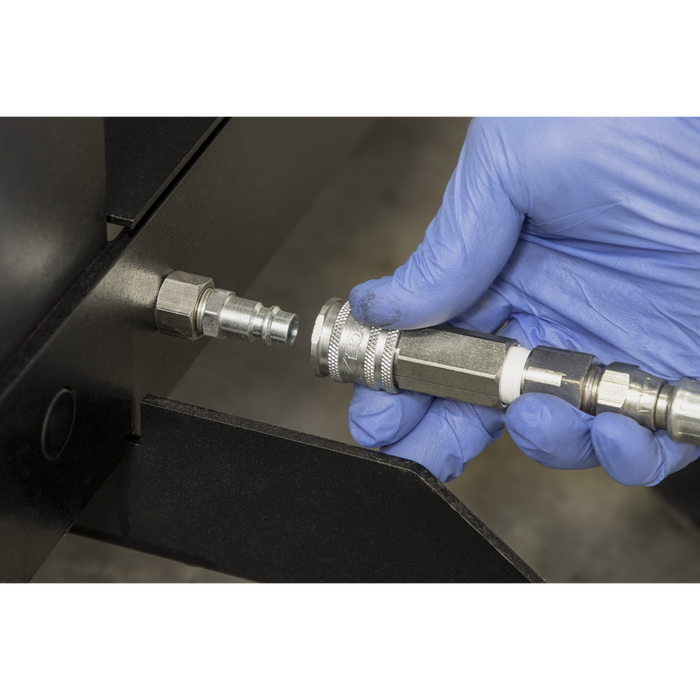

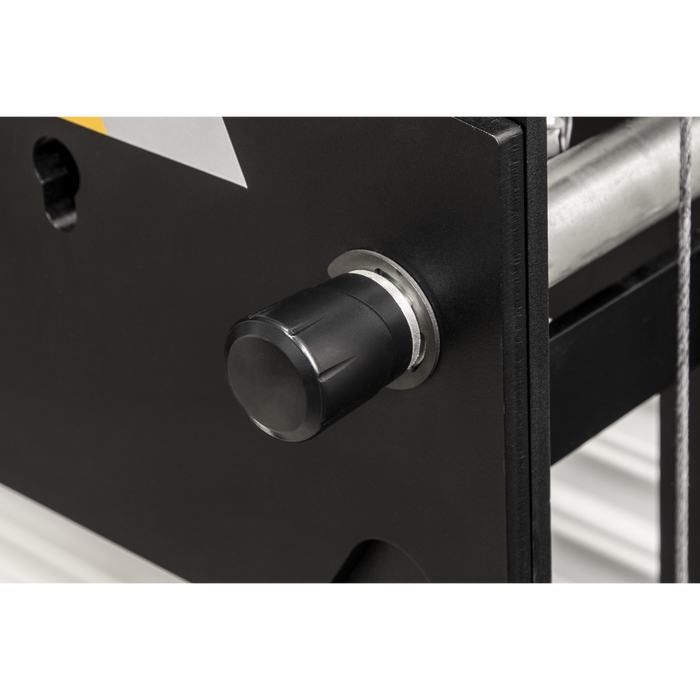

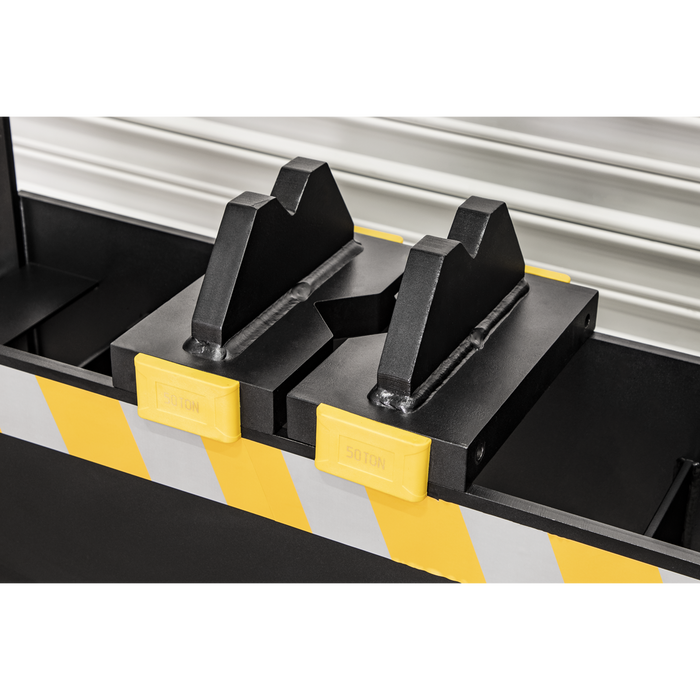

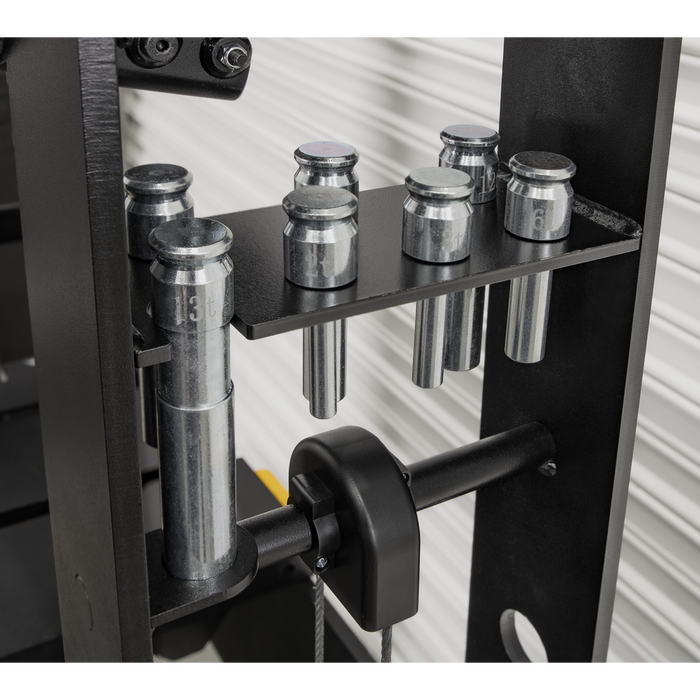

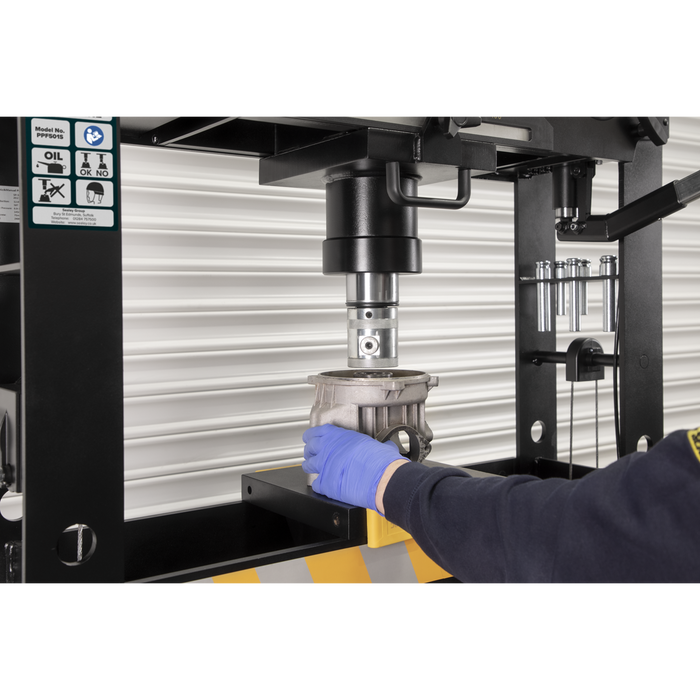

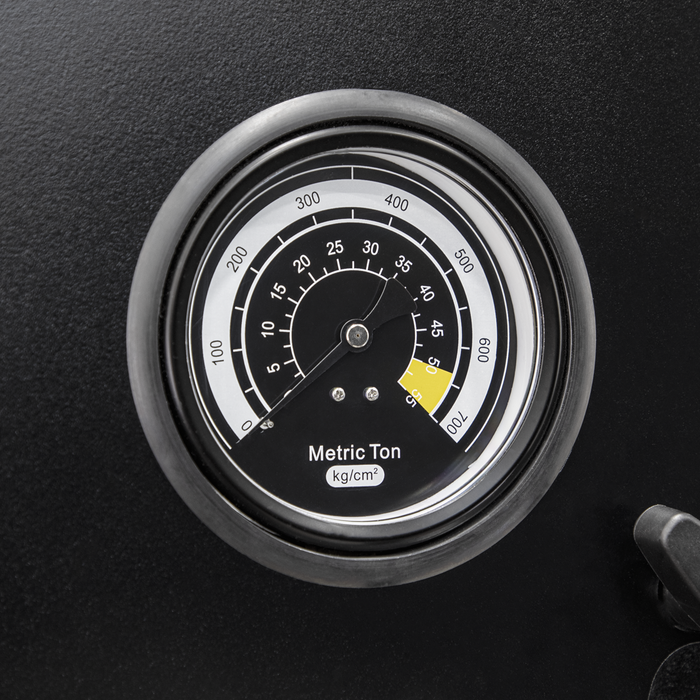

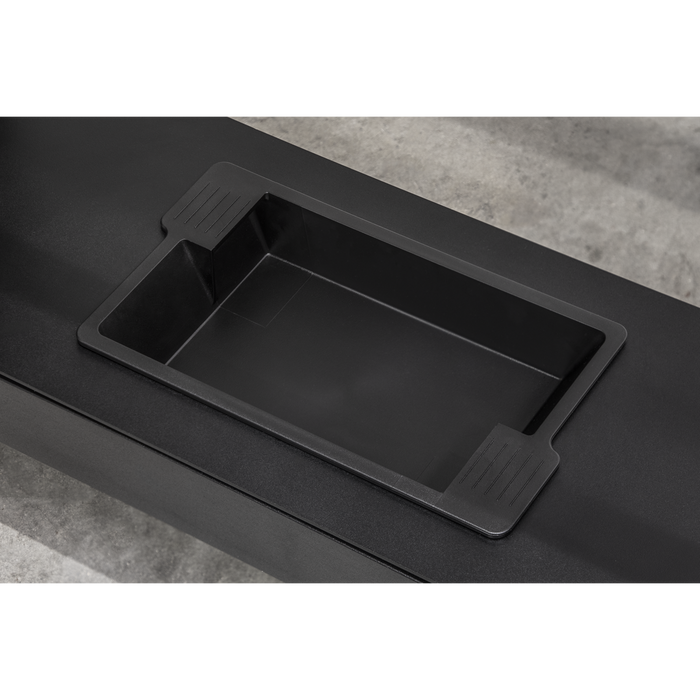

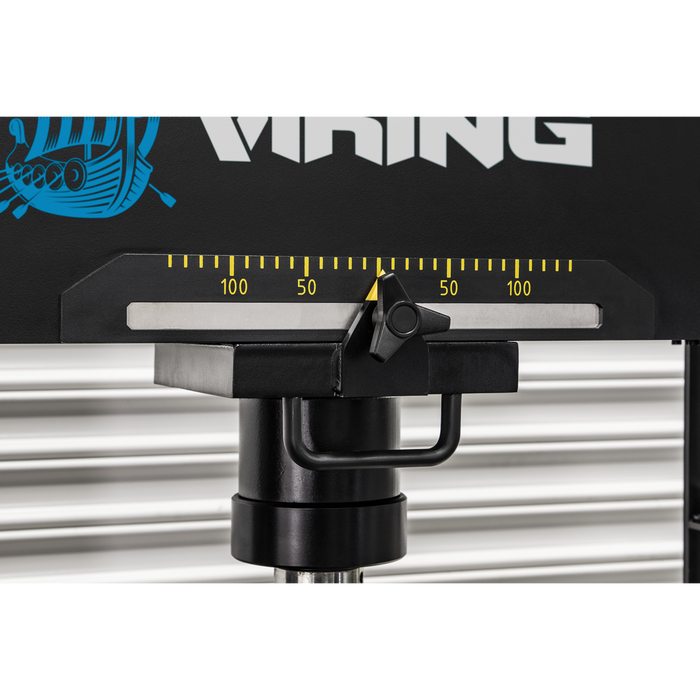

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Sliding hydraulic ram assembly giving 280mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

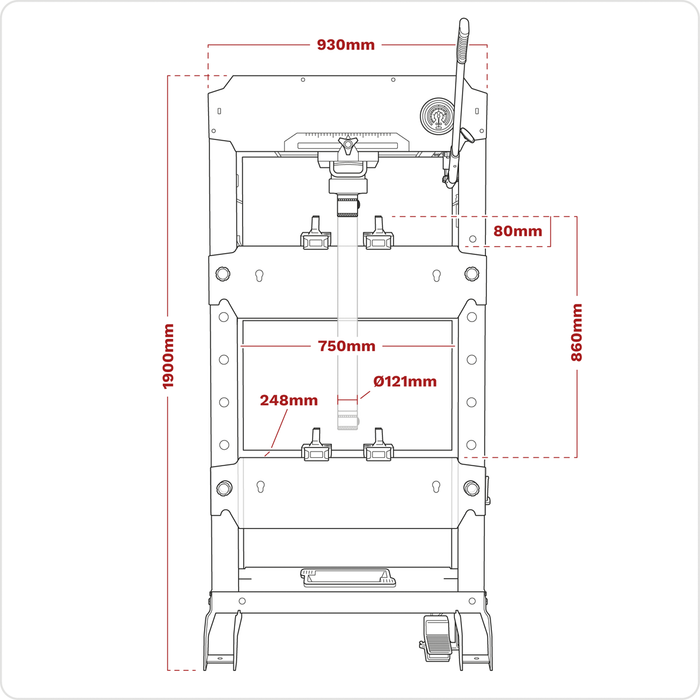

| Model No | PPF501S |
| Air Consumption: | 4.5cfm |
| Bench or Floor Mounting: | Floor |
| Brand: | Viking |
| Capacity: | 50 Tonne |
| Gauge Included: | Yes |
| Lateral Ram Travel: | 280mm |
| Maximum Height - Ram to Table: | 780mm |
| Minimum Height - Ram to Table: | 80mm |
| Nett Weight: | 249.2kg |
| Operating Table Width: | 750mm |
| Overall Height: | 1900mm |
| Ram Diameter: | Ø123.6mm |
| Ram Stroke: | 220mm |
| Screw Extension: | 75mm |
| Table Aperture: | 224mm |
| Type: | Floor |
| Working Table Depth: | 248mm |
| Working Table Width: | 930mm |
