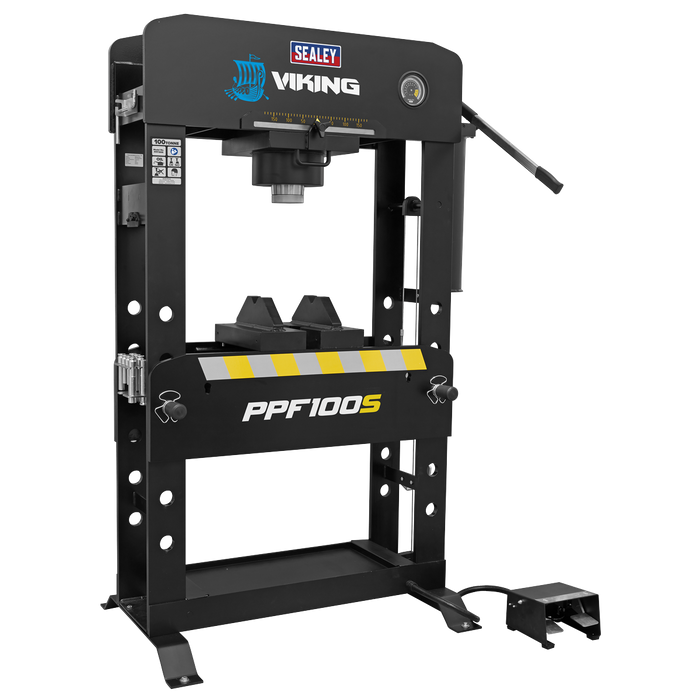

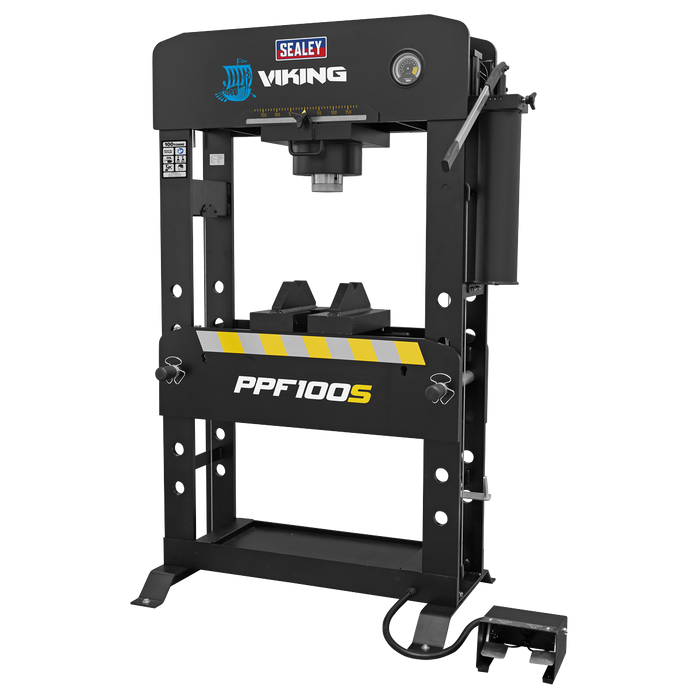

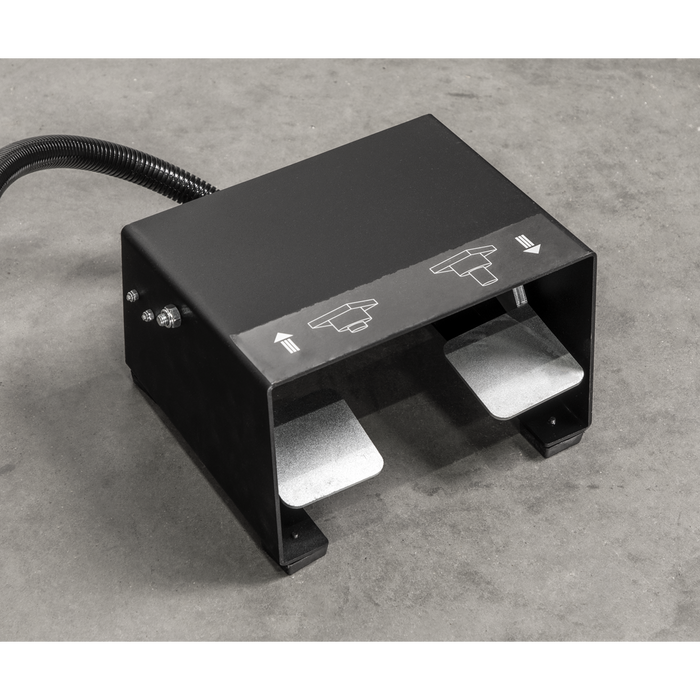

Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 100 Tonne | PPF100S
by Sealey
Original price
£4,679.95
-
Original price
£4,679.95
Original price
£4,679.95
£4,679.95
-
£4,679.95
Current price
£4,679.95
All Prices Excluding VAT
Shipping & VAT will be calculated at checkout where applicable.
More information on delivery and collections below.
Availability:
10 Units Ready For Shipping
SKU PPF100S

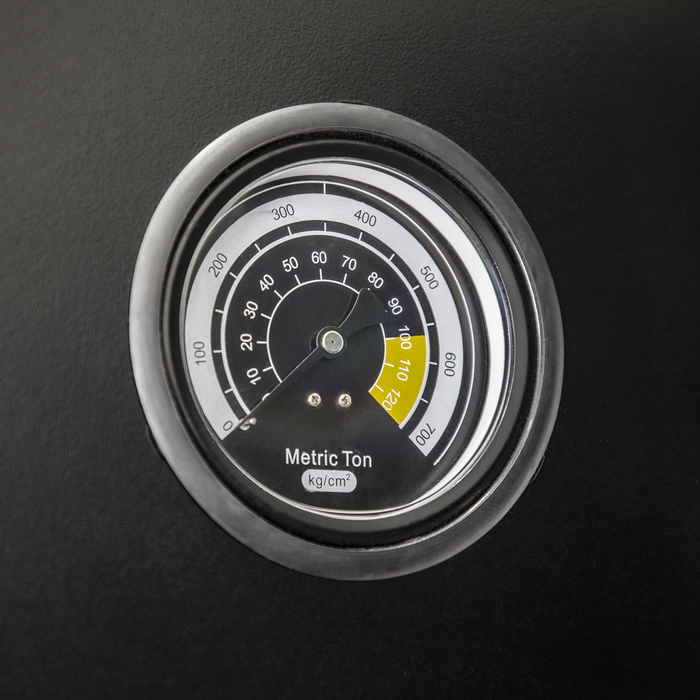

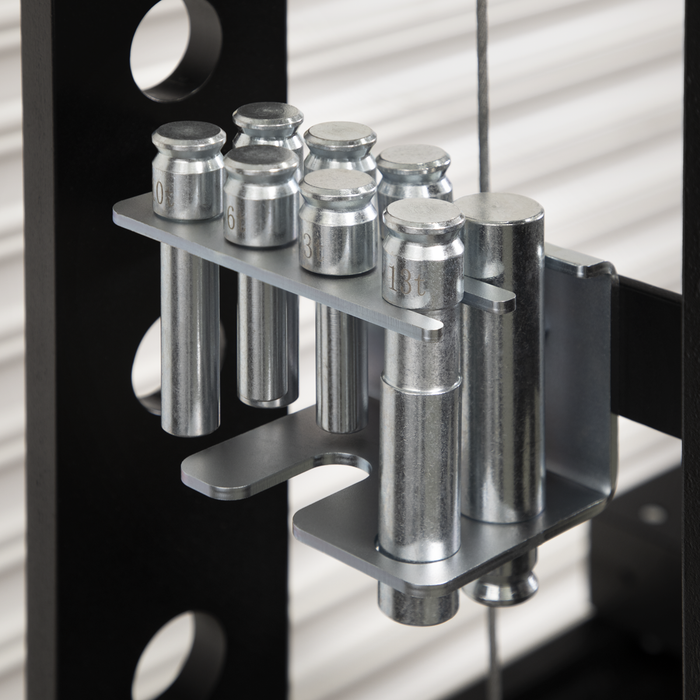

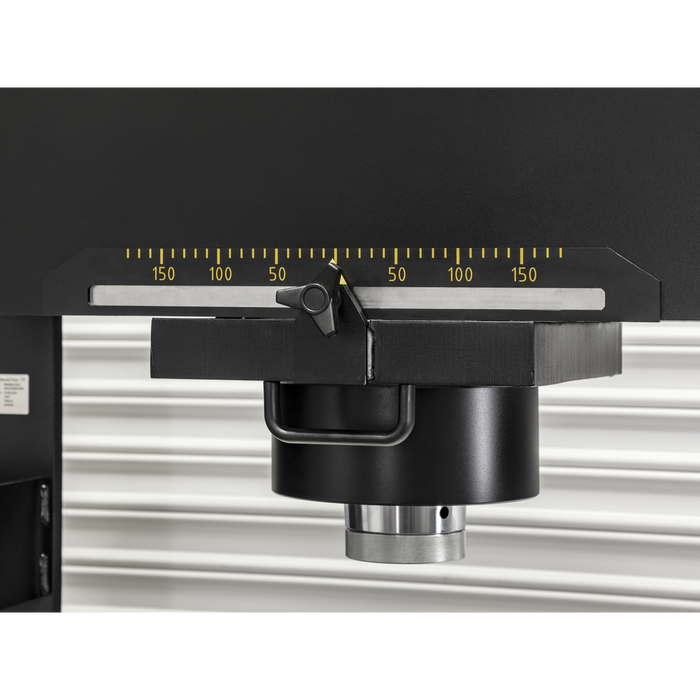

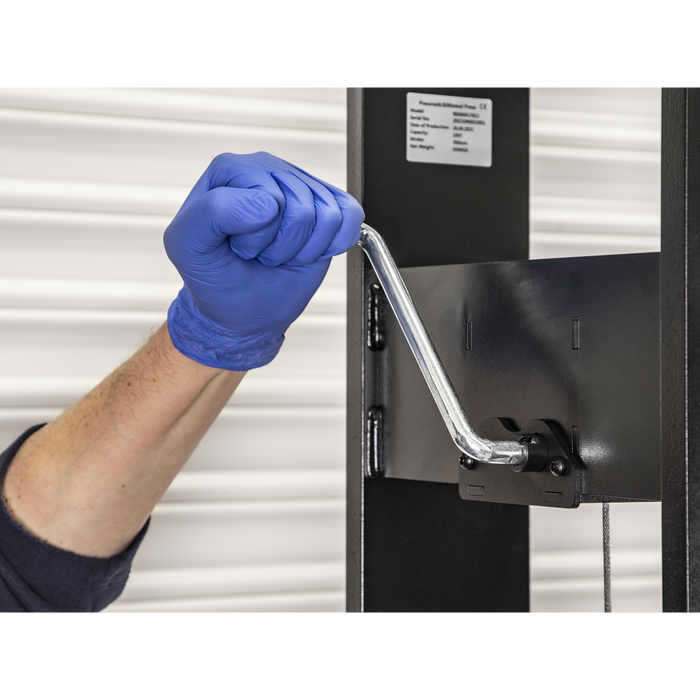

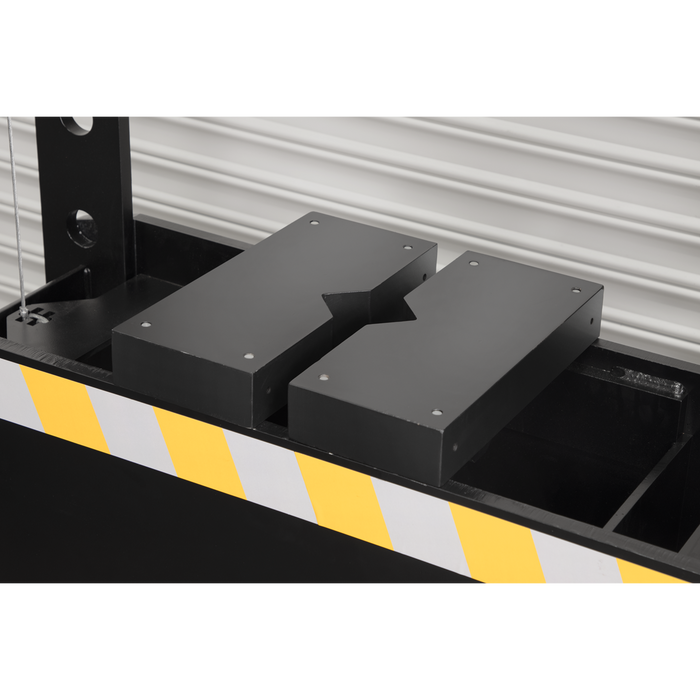

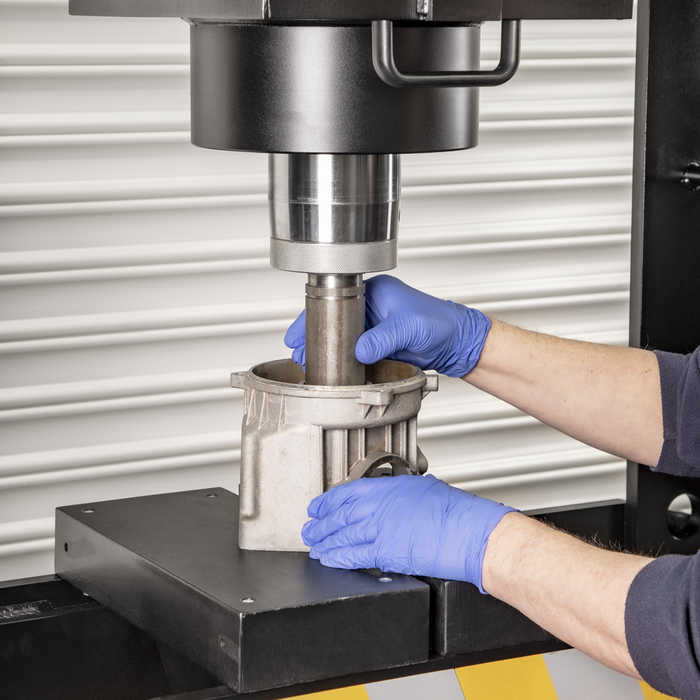

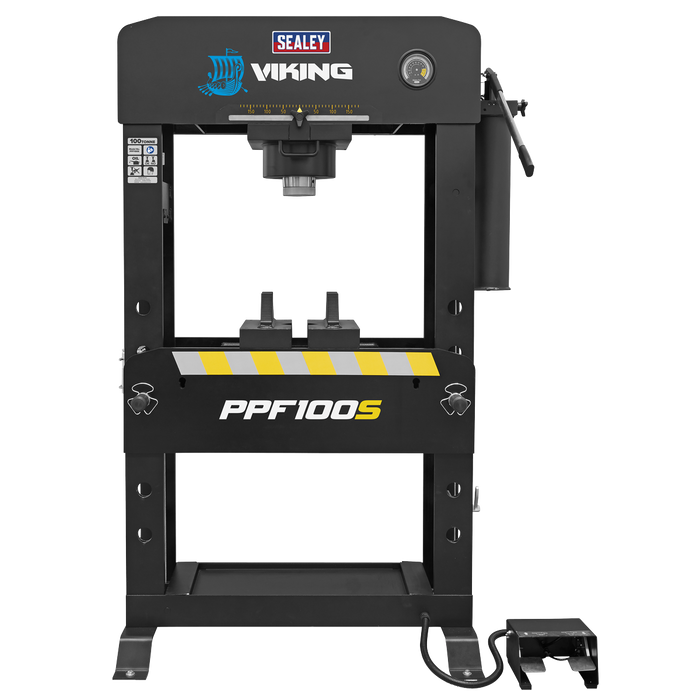

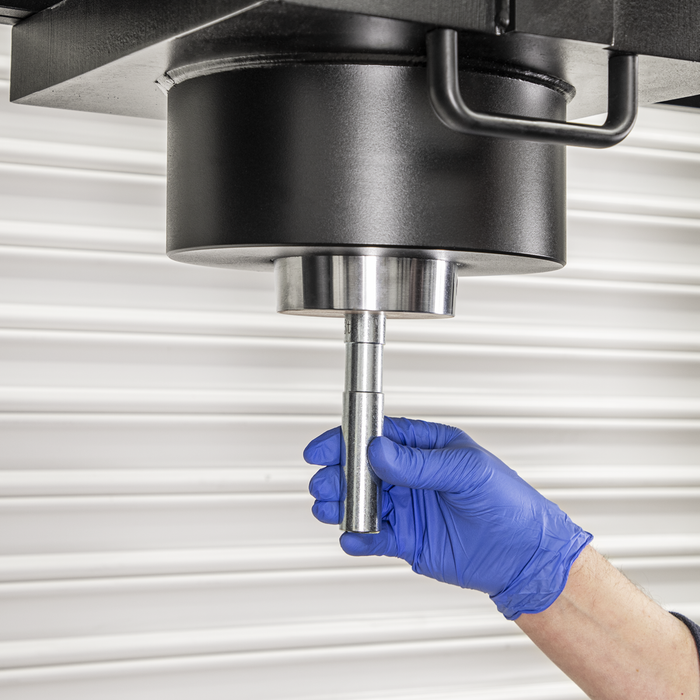

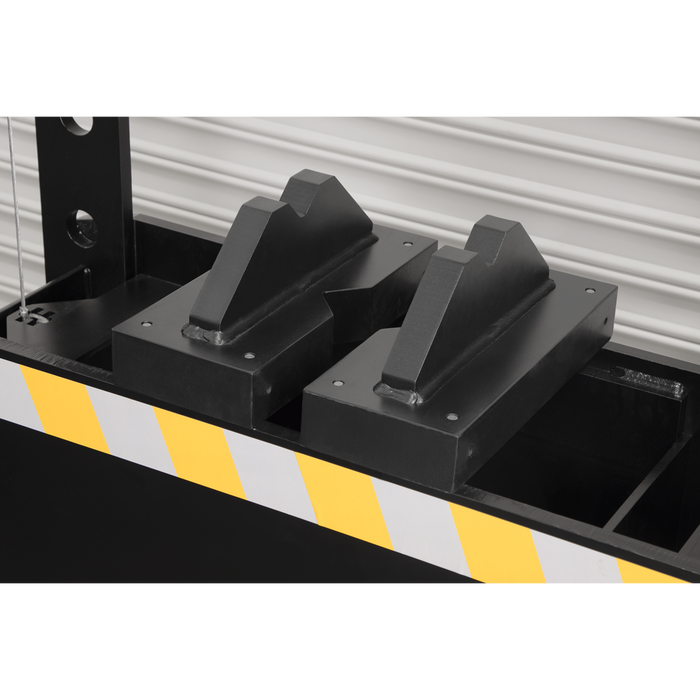

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Adjustable work area with removable tray. Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame (pins not included). Supplied with flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

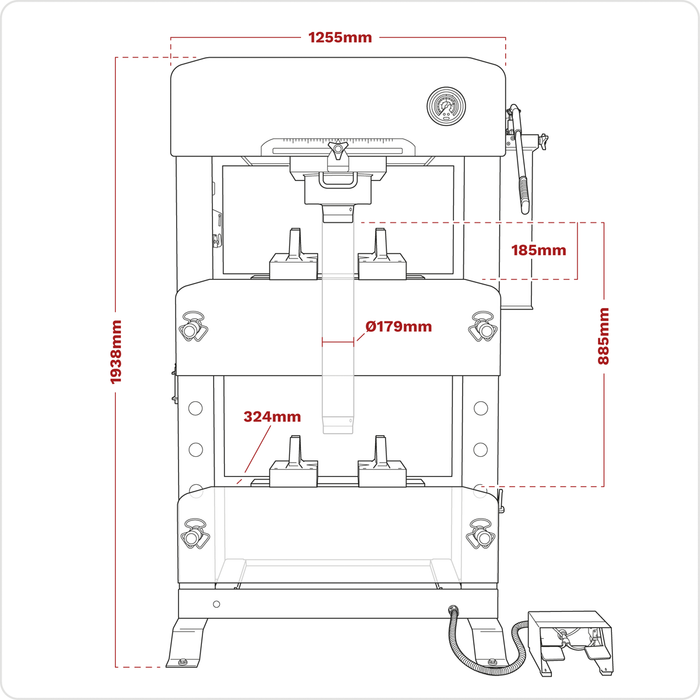

| Model No | PPF100S |
| Air Consumption: | 6.5cfm |
| Bench or Floor Mounting: | Floor |
| Brand: | Viking |
| Capacity: | 100 Tonne |
| Gauge Included: | Yes |
| Lateral Ram Travel: | 360mm |
| Maximum Height - Ram to Table: | 885mm |
| Minimum Height - Ram to Table: | 185mm |
| Nett Weight: | 682kg |
| Operating Table Width: | 850mm |
| Overall Height: | 1938mm |
| Ram Diameter: | Ø179mm |
| Ram Stroke: | 300mm |
| Screw Extension: | n/a |
| Table Aperture: | 324mm |
| Type: | Air/Hydraulic |
| Working Table Depth: | 364mm |
| Working Table Width: | 1090mm |
